CASE CONSTRUCTION CX130B - MACHINE OVERALL DIMENSIONS; Standard Arm Dimensions

Issued 06-15
1002-41

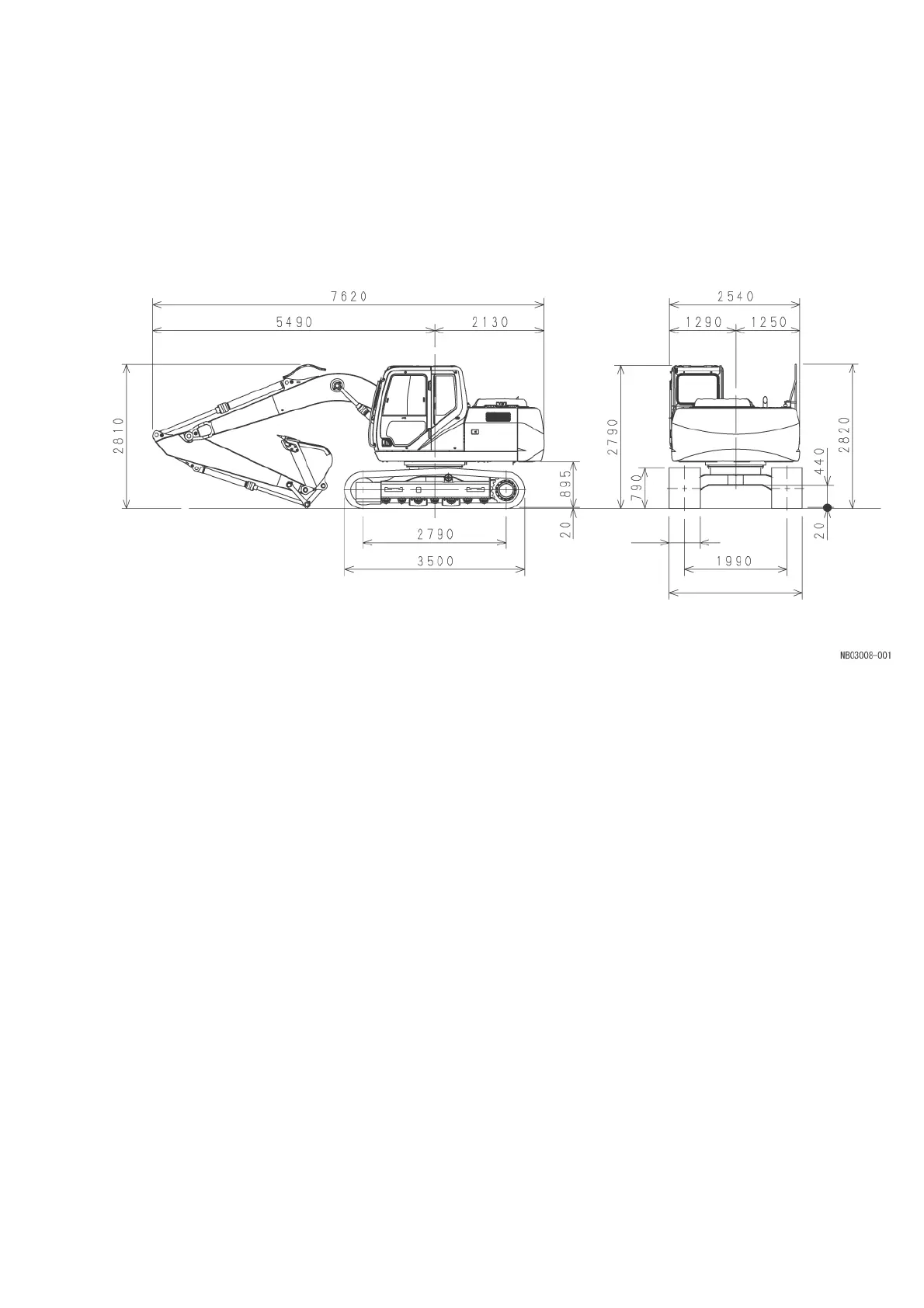

MACHINE OVERALL DIMENSIONS
NOTE: Numbers are subject to change without notice due to design change or other reasons.
The figures give values that include the shoe lug height (20 mm (0.79 in)
Standard Arm (Dipper) (2500 mm (98.42 in))
CX130B
7 0 0
2 6 9 0
