CASE CONSTRUCTION CX130B - DIMENSIONS AND WEAR LIMIT OF THE TRACK ASSEMBLY; Sprocket Wear Limits

Issued 06-15
1002-25

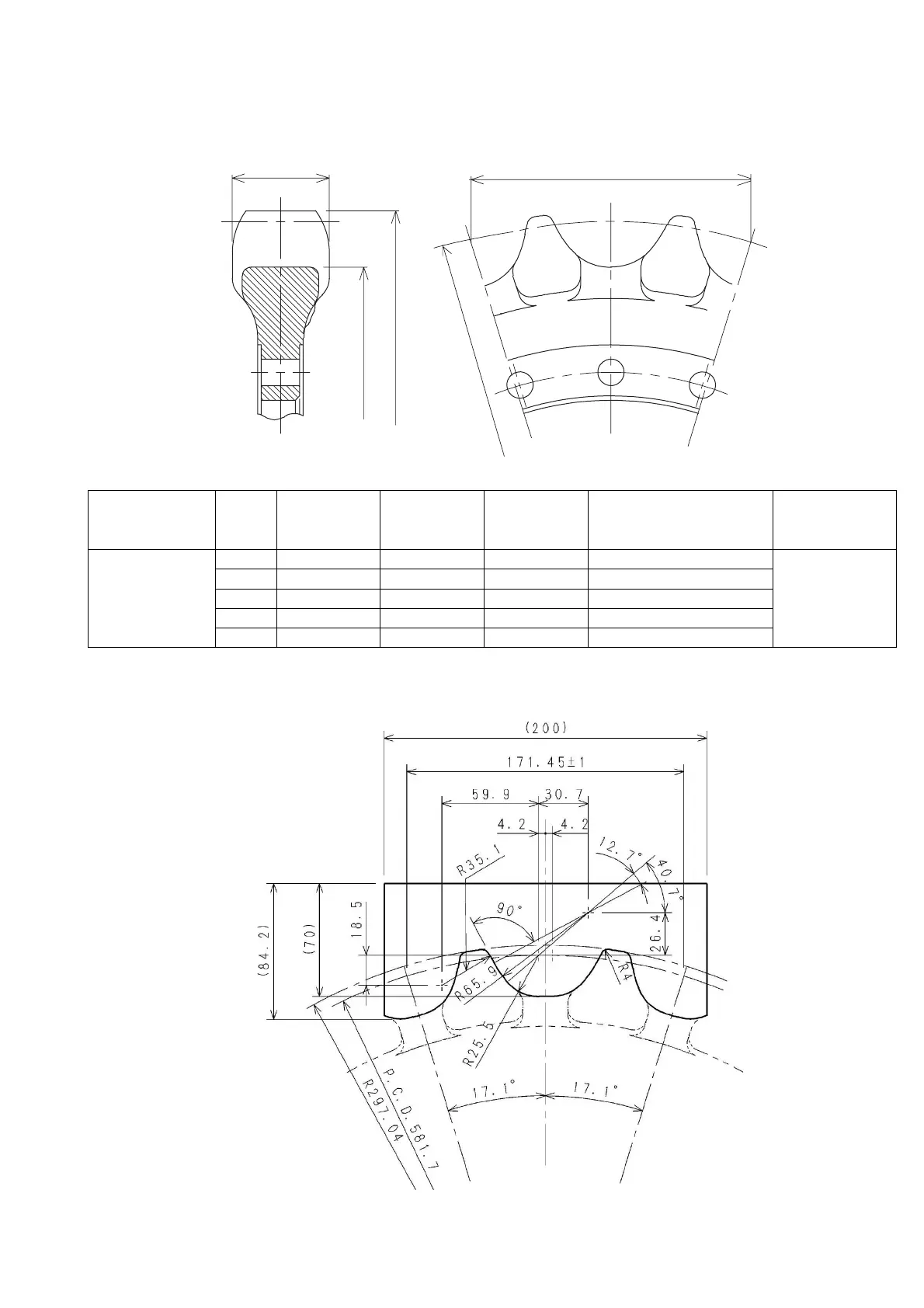

DIMENSIONS AND WEAR LIMIT OF THE TRACK ASSEMBLY
Sprocket
Gauge
unit in mm
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Sprocket
a 59 53 Acceptable/Unacceptable
Cladding by welding
or replacement
b Ø
Ø530.70 Ø524.72 Acceptable/Unacceptable
c Ø
Ø594.07
Ø588.07
Acceptable/Unacceptable
d Ø
Ø581.67 - Acceptable/Unacceptable
p 171.45 - Acceptable/Unacceptable
RI14001-001
a
b c
d
p
NI14002-008
