Case 445CT - Connector - Component Diagram Frame 01 (A.30.A.87 - C.20.F.01)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

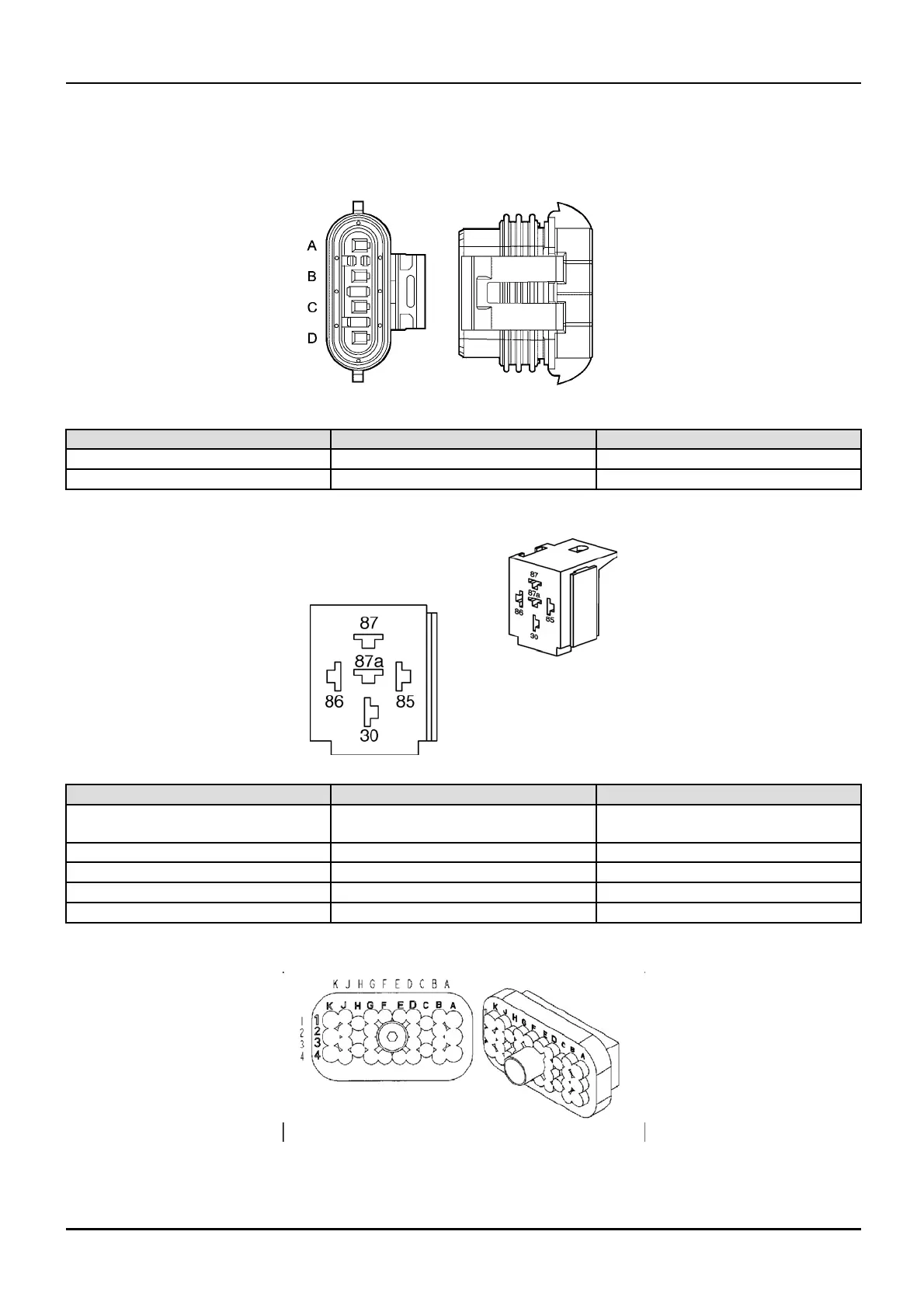

Connector - Component diagram frame 01 (A.30.A.87 - C .20.F.01)
435, 445, 445CT
Connector 4
PAC_12186568 1
Cavity Circuit ID
Description
A
124A (R)
To connector 8A pin B4
B
121A (Y)
From Altern ator to 50 ohm resistor
Connector 7
245731C1 2
Cavity Circuit ID
Description
30
170A (R)
From 40 amp circu it breaker to
connector 7 pin 30
85
178C (B)
From start relay to ground
85
178D (B)
From start relay to main power relay
86
622B (W)
To connector 127A pin B
87
625A (W)
From start relay to starter solenoid
Connector 8
256357A1 3
1 04/05/2005
A.30.A / 11
