Case 445CT - Connector - Component Diagram Frame 07 (A.30.A.87 - C.20.F.07)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

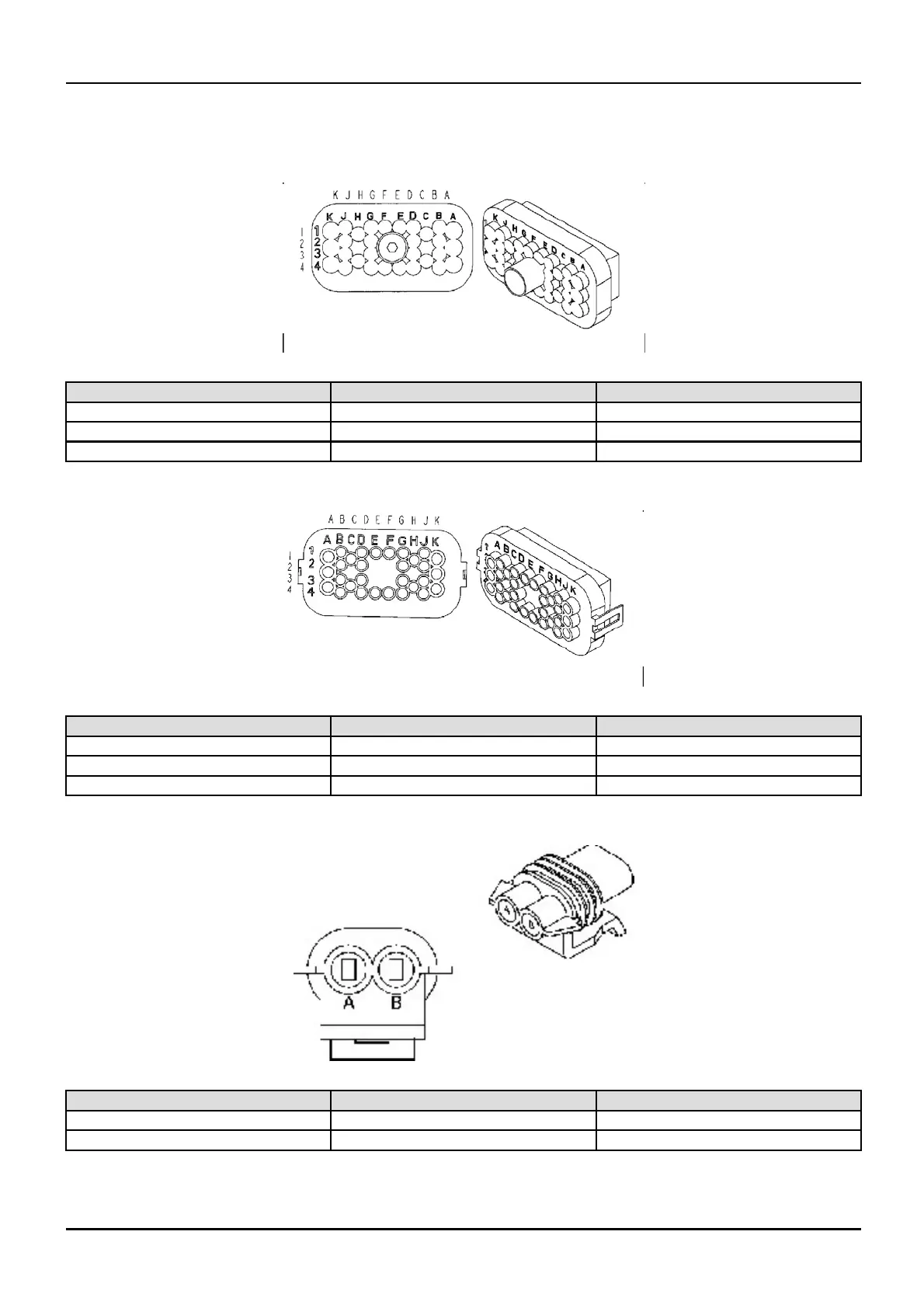

Connector - Component diagram frame 07 (A.30.A.87 - C .20.F.07)
435, 445, 445CT
Connector 8
256357A1 1
Cavity Circuit ID
Description
E1 782A From connector 23 pin 21
F4 781A From connector 23 pin 22
A2 783E To connector 32 pin A
Connector 8A
256356A1 2
Cavity Circuit ID
Description
E1 782A To connector 96 pin 86
F4 781A From connector 99 pin A
A2 783E To connector 96 pin 87
Connector 32
256340a1 3
Cavity Circuit ID
Description
A 178AE From connector 8 pin A2
B
783G
To ground
