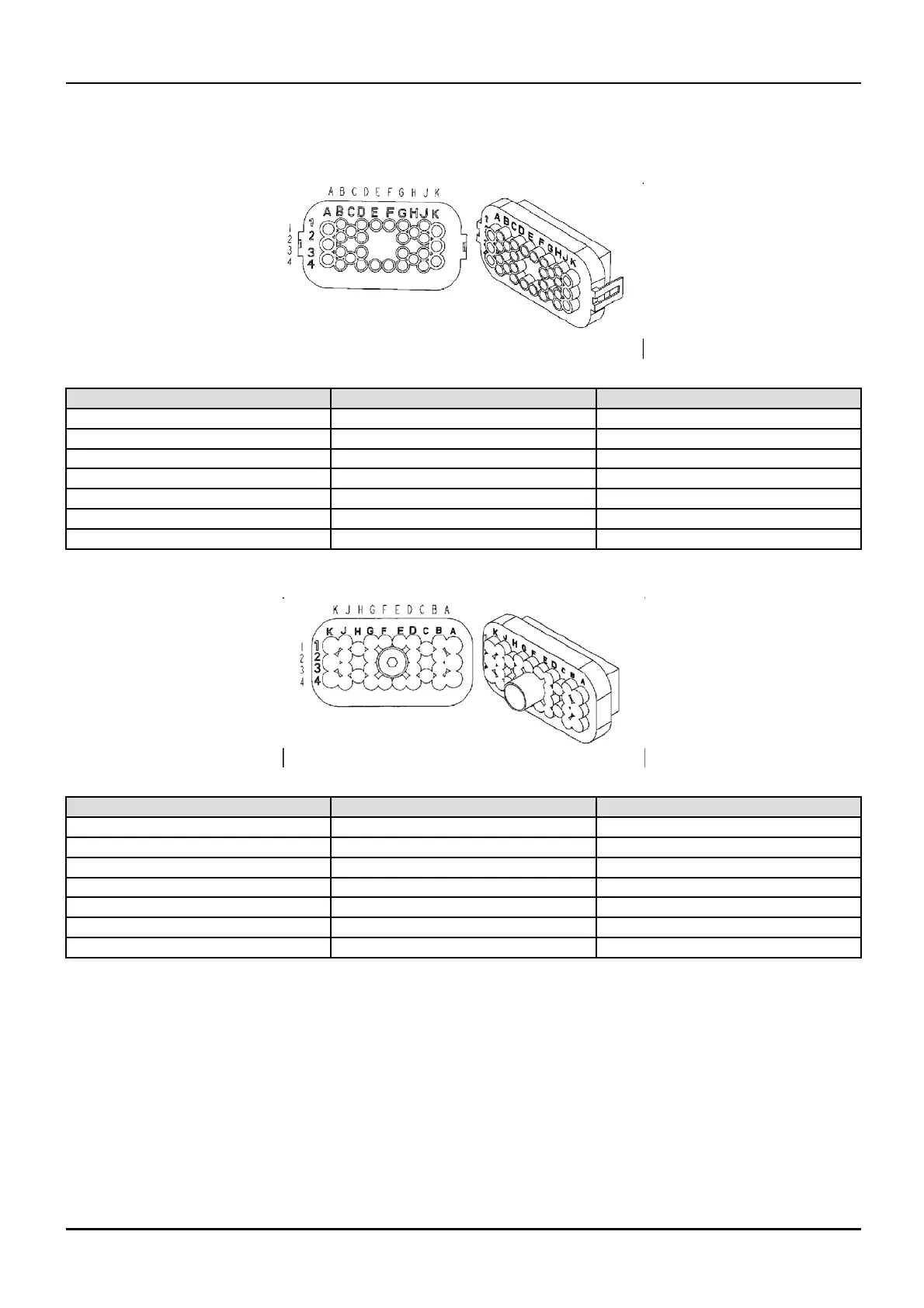

Connector - Component diagram frame 05 (A.30.A.87 - C .20.F.05)
435, 445, 445CT
Connector 8A
256356A1 1
Cavity Circuit ID
Description
C1 323A (T)
From connector 58 pin B
D2
300E (R) From primary fuse block
C2 303D (T)
From co nnector 18 pin 86
D4
258B (T)
From connector 80 pin 1
J2
602A (W)
From co nnector 127 pin A
D1
319B (T)
From connector 79 pin A
D3
754A (P)
From co nnector 66A p in F
Connector 8
256357A1 2
Cavity Circuit ID
Description
C1 323B (T)
To connector 23 pin 12
D2
300F (R)
To connector 23 pin 24
C2 303C (T)
To connector 59 pin A
D4
258A (T)
To connector 23 pin 8
J2
602C (W)
To connector 23 pin 5
D1
319C (T)
To connector 23 pin 26
D3
754B (P)
To connector 23 pin 4
