Connector - Component diagram frame 10 (A.30.A.87 - C .20.F.10)
435, 445, 445CT

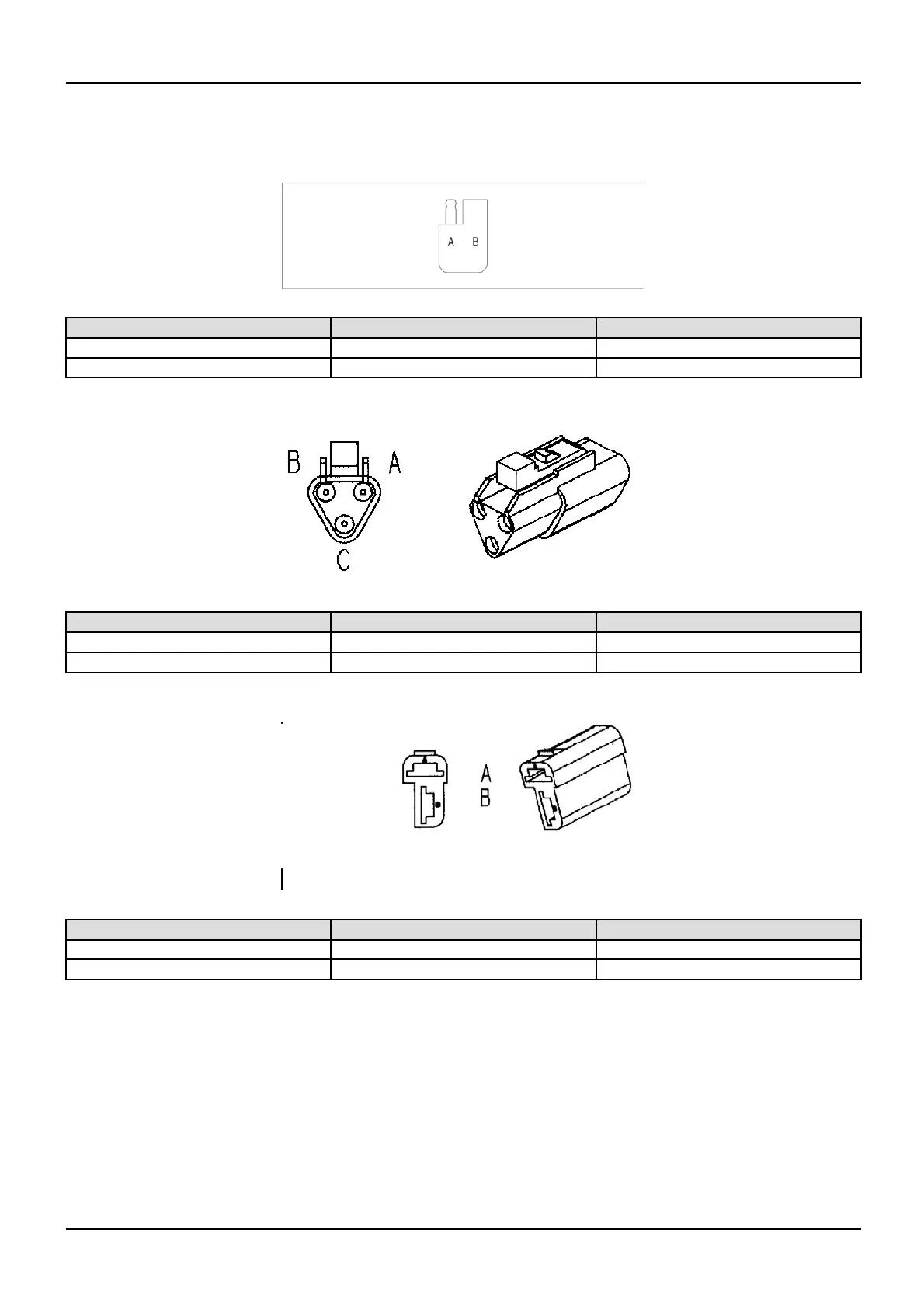

Connector 50A
cnh_style-24 1
Cavity Circuit ID
Description
A
313F (T)
To connector 51 pin B
B
313H (T)
From connector 51 pin A
Connector 51
225295C1 2
Cavity Circuit ID
Description
A
313H (T)
From co nnector 50A pin B
B
313F (T)
From co nnector 50A pin A
Connector 65
877291R1 3
Cavity Circuit ID
Description
A
830B (R) From prim ary fuse block No. 3
B
178AB (B)
To ground
