Case 445CT - Connector - Component Diagram Frame 16 (A.30.A.87 - C.20.F.16)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

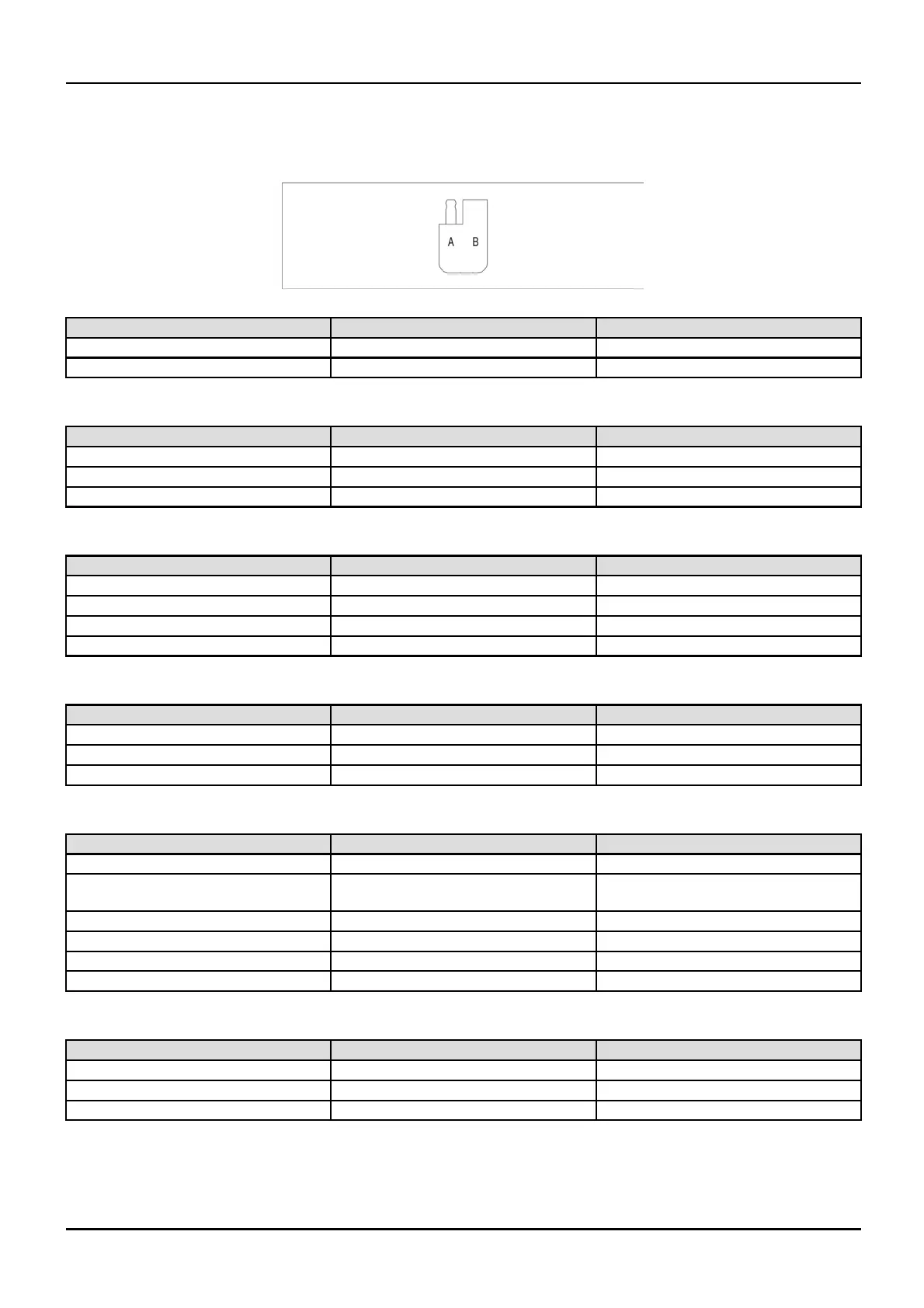

Connector - Component diagram frame 16 (A.30.A.87 - C .20.F.16)
435, 445, 445CT
Connector 69
cnh_style-24 1
Cavity Circuit ID
Description
A
178AG (B)
To ground
B
137C (R)
From connector 9 pin D
Connector 117
Cavity Circuit ID
Description
A
178BN (B)
To ground
A
178BB (B)
To ground
B
820A (R) From options fuse block terminal 4
Connector 117A
Cavity Circuit ID
Description
A
ET000C (B)
To connector 173 pin 2
A
ET000A (B)
To connector 174 pin D
B
ET001A (R)
To connector 173 pin 1
B
ET001B (R) To connector 176 pin C
Connector 170
Cavity Circuit ID
Description
1
ET000E (B)
From splice
2
ET006A (Y)
To connector 176B
3
ET001C (R)
To connector 171 pin B
Connector 171
Cavity Circuit ID
Description
B
ET001C (R)
From co nnector 170 pin 3
B
ET001D (R) From splice from connector 117A pin
B
C ET007A (R)
To connector 172 pin A
L
ET003A (P)
To connector 174 pin E
M
ET004A (Y)
To connector 174 pin B
H
ET005A (O) To connector 174 pin C
Connector 172
Cavity Circuit ID
Description
A
ET007A (R) From connector 171 pin C
B
ET008A (LB) From splice from connector 174 pin A
C ET000D (B)
To connector 173 pin 2
1 04/05/2005
A.30.A / 35
