Case 445CT - Connector - Component Diagram Frame 06 (A.30.A.87 - C.20.F.06)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

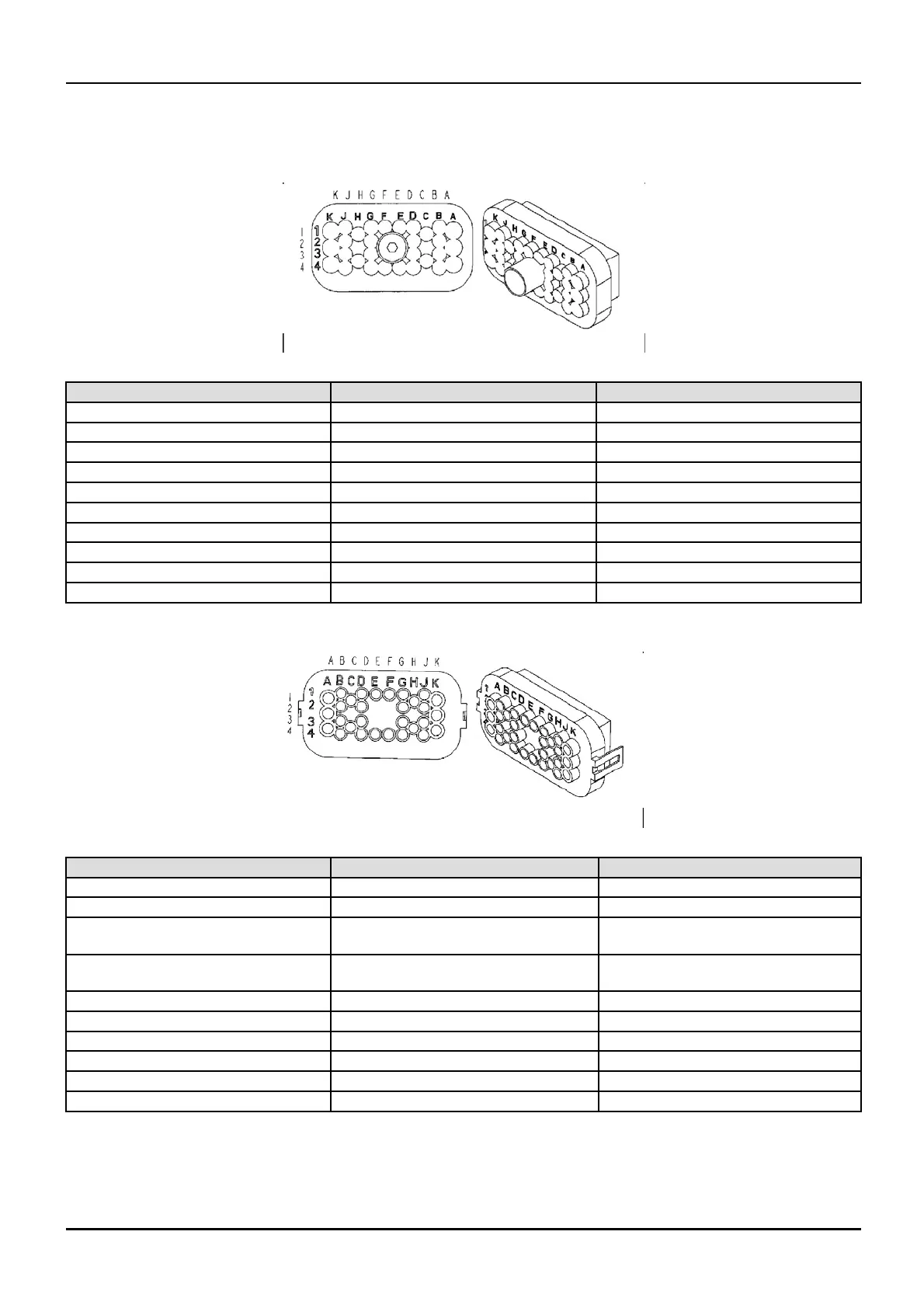

Connector - Component diagram frame 06 (A.30.A.87 - C .20.F.06)
435, 445, 445CT
Connector 8
256357A1 1
Cavity Circuit ID
Description
H1
641B (Y)
To connector 23 pin 7
G2 261B (Y)
To connector 23 pin 15
G4 264B (Y)
To connector 23 pin 2
G1 257B (Y)
To connector 23 pin 25
J1
266B (Y)
To connector 23 pin 16
F1
234B (Y)
To connector 23 pin 1
E4
255B (Y)
To connector 23 pin 18
G3 262B (Y)
To connector 23 pin 17
B4
124B (R)
To connector 23 pin 19
K1
200B (B/W)
To connector 23 pin 20
Connector 8A
256356A1 2
Cavity Circuit ID
Description
H1
641A (W)
To grid heater relay
G2 261A (Y)
From hydraulic pressure switch
G4 264A (Y)
From hydraulic oil temperature
sender
G1 257A (Y)
From engine coolant temperature
sender
J1
266A (Y) From air filter restriction switch
F1
234A (Y) From fuel sender
E4
255A (Y)
From engine oil pressure switch
G3 262A (Y)
From charge pressure switch
B4
124A (R)
From connector 4 pin A
K1
200A (B/W)
To ground
1 04/05/2005
A.30.A / 21
