Case 445CT - Connector - Component Diagram Frame 18 (A.30.A.87 - C.20.F.18)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

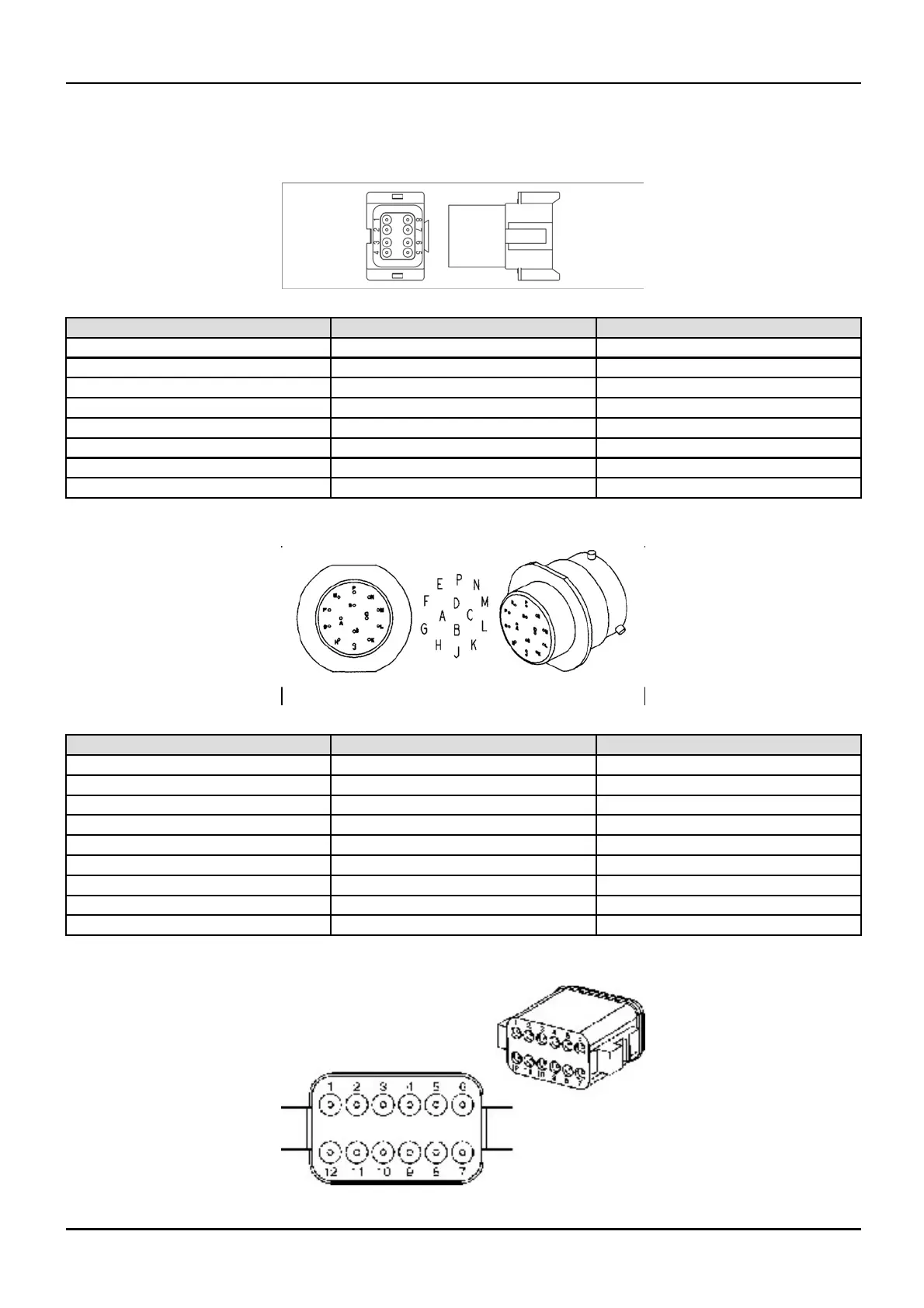

Connector - Component diagram frame 18 (A.30.A.87 - C .20.F.18)
435, 445, 445CT
Connector 49
225320c1 1
Cavity Circuit ID
Description
1
001 (B)
To connector 138A pin 1
2
002 (DB)
To connector 138A pin 2
3
003 (O)
To connector 138A pin 3
4
004 (R)
To connector 138A pin 4
5
005 (Y)
To connector 138A pin 5
6
006 (P)
To connector 138A pin 6
7
007 (T)
To connector 138A pin 7
8
008 (W)
To connector 138A pin 8
Connector 107
225233C1 2
Cavity Circuit ID
Description
E
001B (B)
From co nnector 138 pin 1
F
002B (DB)
From co nnector 138 pin 2
K
817J (O)
From co nnector 138 pin 3
G 004B (R)
From co nnector 138 pin 4
H
005B (Y)
From co nnector 138 pin 5
C 006B (P)
From co nnector 138 pin 6
D
007B (T)
From co nnector 138 pin 7
J
008B (W)
From co nnector 138 pin 8
B
178JH (B)
From co nnector 138 pin 9
Connector 138
225389c1 3
1 04/05/2005
A.30.A / 39
