DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM

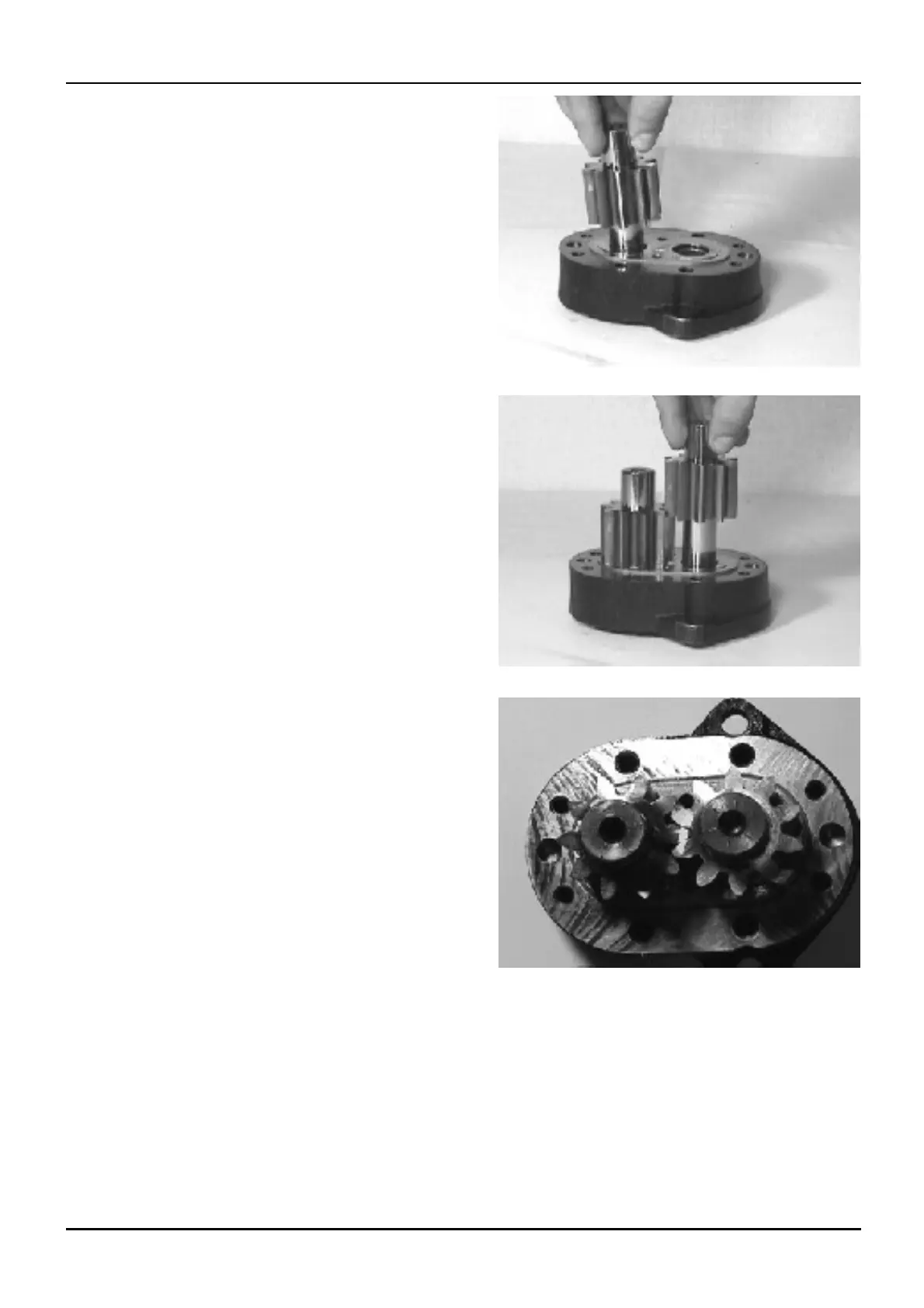

7. Insert the idler shaft through the wear plate , and
into the ho u sin g.
GD98J808 7
8. Insert the drive shaft through the wear plate, and
into the ho u sin g.
GD98J807 8
9. During the gear pump disassembly, the gear teeth
were aligned and then marked. Please refer to
Hydraulic pump - Disassemble (A.10.A.20 -
F.10.A .25). Ensure that the meshed teeth marks,
on the drive shaft and the idler shaft, are properly
aligned.
GD98J806 9
