SECTION 2
2-48

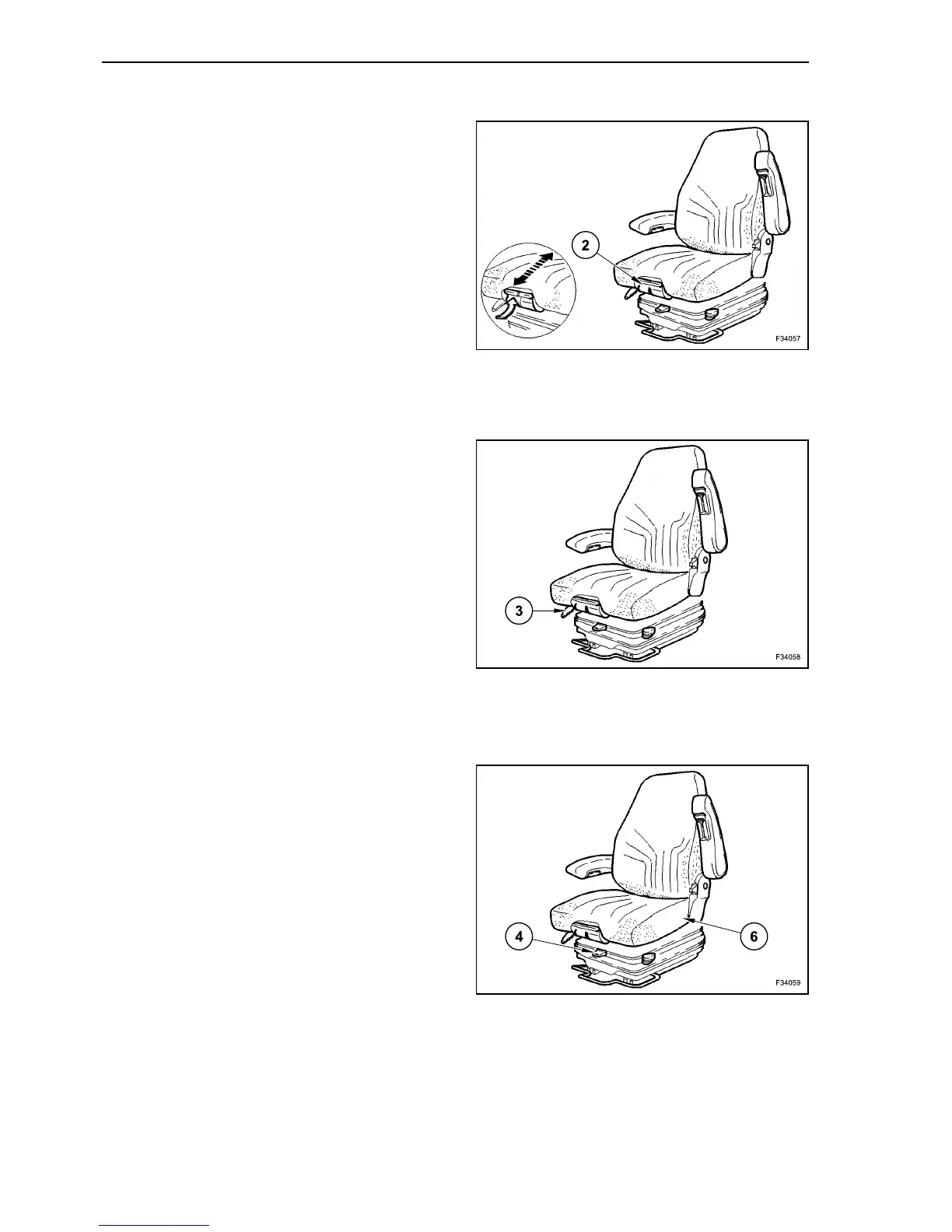

ADJUSTING THE SEAT CUSHION HEIGHT
Pull handle (2) at front edge of seat upwards, adjust
seat cushion, engage handle (2).
FORE-AND-AFT ADJUSTMENT OF SEAT
WITHOUT CONSOLES
Pull locking lever (3) upwards, shift seat to required
position and release locking lever.
ADJUSTING THE SUSPENSION/SEAT HEIGHT
Suspension
The operator’s weight should be adjusted upwards
with the machine stationary and the seat loaded by
brief actuation of the handle (4). The suspension is
adapted automatically to the operator’s body weight.
Seat height
Pull handle (4) upwards or downwards until the seat
(6) has reached the required height. Release the
handle (4).
57
58
59
