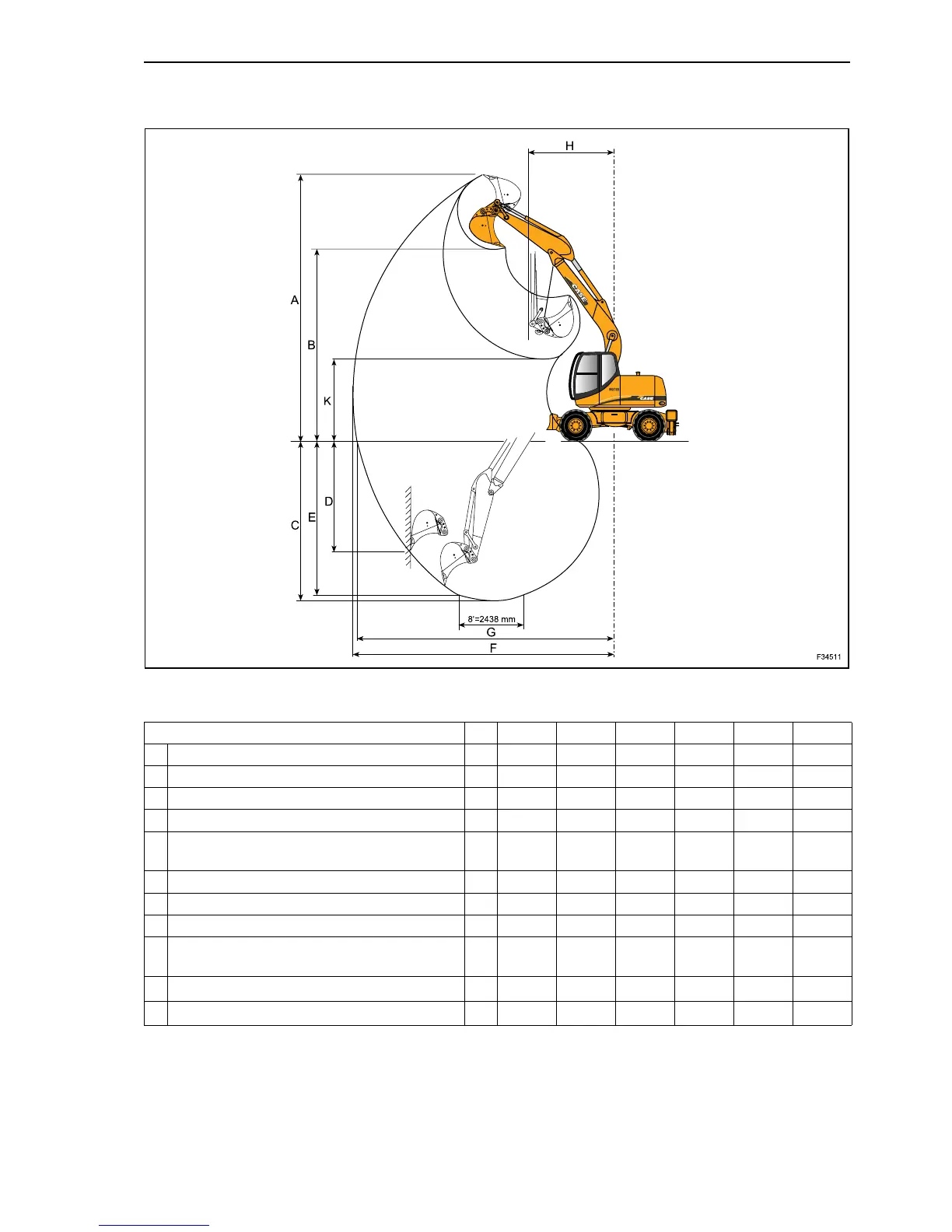

Case WX185 - A Maximum Digging Height; B Maximum Loading Height; C Maximum Digging Depth; D Maximum Vertical Wall Digging Depth

DATA AND TECHNICAL SPECIFICATIONS
8-15
OUTFIT WITH MONOBOOM
Dipper mm in 2300 90.55 2600 102.36 2900 114.17
A Maximum digging height mm in 8900 350.39 9000 354.33 9200 362.20
B Maximum loading height mm in 6300 248.03 6500 255.90 6700 263.77
C Maximum digging depth mm in 5400 212.60 5700 224.41 6000 236.22
D Maximum vertical wall digging depth mm in 2900 114.17 2700 106.29 2900 114.17
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 5200 204.72 5500 216.53 5800 228.35
F Maximum digging reach mm in 8700 342.52 9000 354.33 9300 366.14
G Maximum digging reach at ground mm in 8500 334.64 8800 346.46 9100 358.27
H Minimum swing radius mm in 2800 110.24 2800 110.24 2900 114.17
K
Maximum loading height (dipper
retracted)
mm in 2600 102.36 2300 90.55 2000 78.74
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 112.5 25292.3 112.5 25292.3 112.5 25292.3
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 71.7 16119.6 66.2 14883.1 62.5 14051.2
21
