SUPPLIES AND SERVICE CHART
4-13

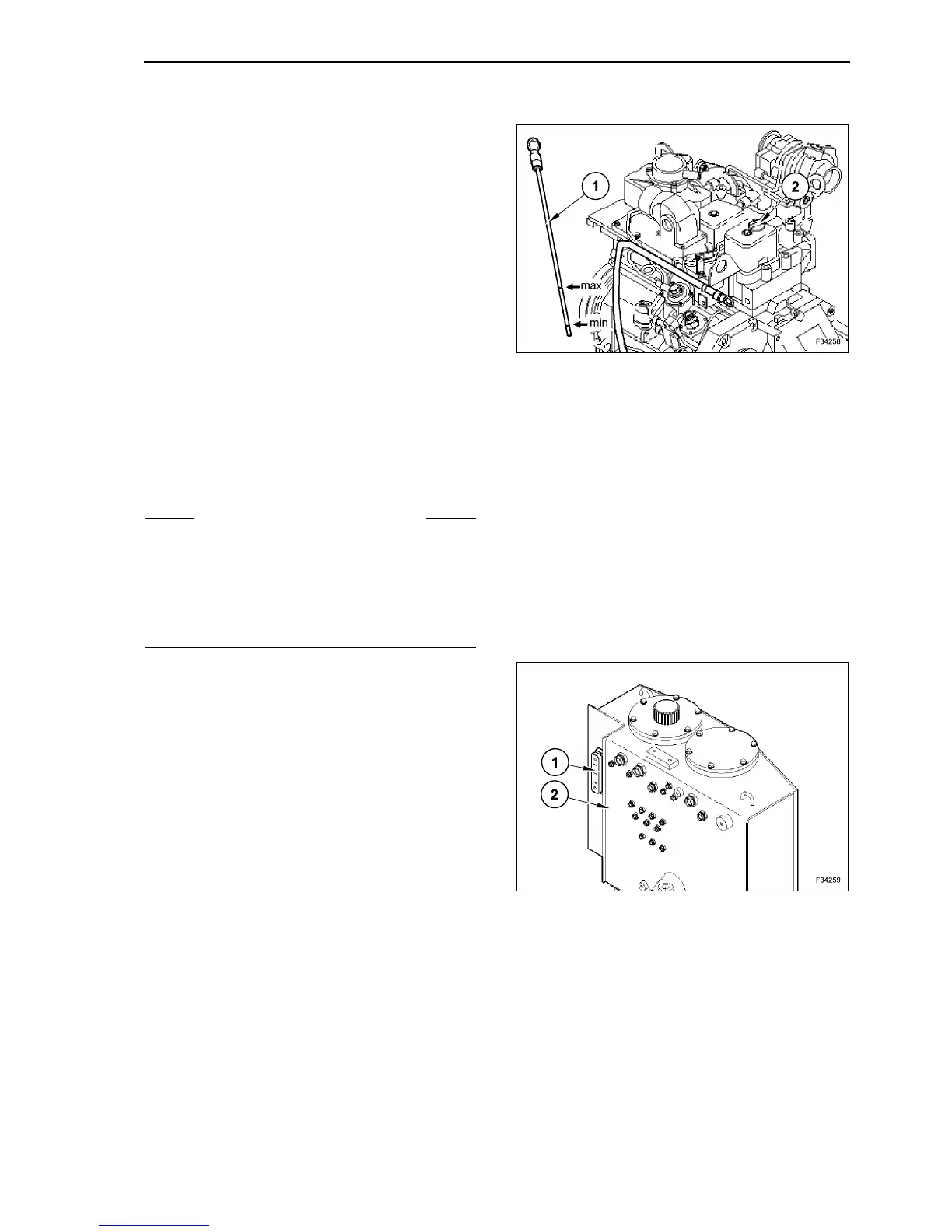

ENGINE OIL - LEVEL
Park the machine on a level surface and protect the
same against inadvertent movements.
Shut off the engine and wait for about five minutes
before checking the oil level. This down-time allows
the oil to flow into the oil sump.
Open the engine hood.
Remove the oil dipstick (1).
Wipe dipstick (1) clean with a lint-free cloth and rein-
sert.
Pull out again the oil dipstick (1).
If the oil level is close to or under the “min” mark,
perform the top up (2).
Top up oil until you reach the notch “max”.
NOTE: the oil level must always be above the notch
“min” and under the notch “max”.
HYDRAULIC OIL TANK - LEVEL
Park the machine on a flat surface and place the
working equipment on the ground.
Engage the parking brake. Shut off the engine.
Relieve the pressure from the hydraulic system by
moving both hydraulic control levers repeatedly until
the hydraulic cylinders do not react to controls.
Open the engine hood.
Check that the oil level is above the “min” notch of
the dipstick (1) inside of hydraulic oil tank (2).
If this is not the case, top up the hydraulic oil.
No matter what the position of the working attach-
ment is, the oil level must always be between the
notches “min” and “max”.
S WARNING S
Before starting to work on the hydraulic system,
make sure that this is not under pressure and
relieve any residual pressure from it.
Never let hydraulic oil to come in contact with the
skin. The skin contact with hydraulic oils is harmful
to health.
