ATTACHMENTS
7-19
DISASSEMBLY

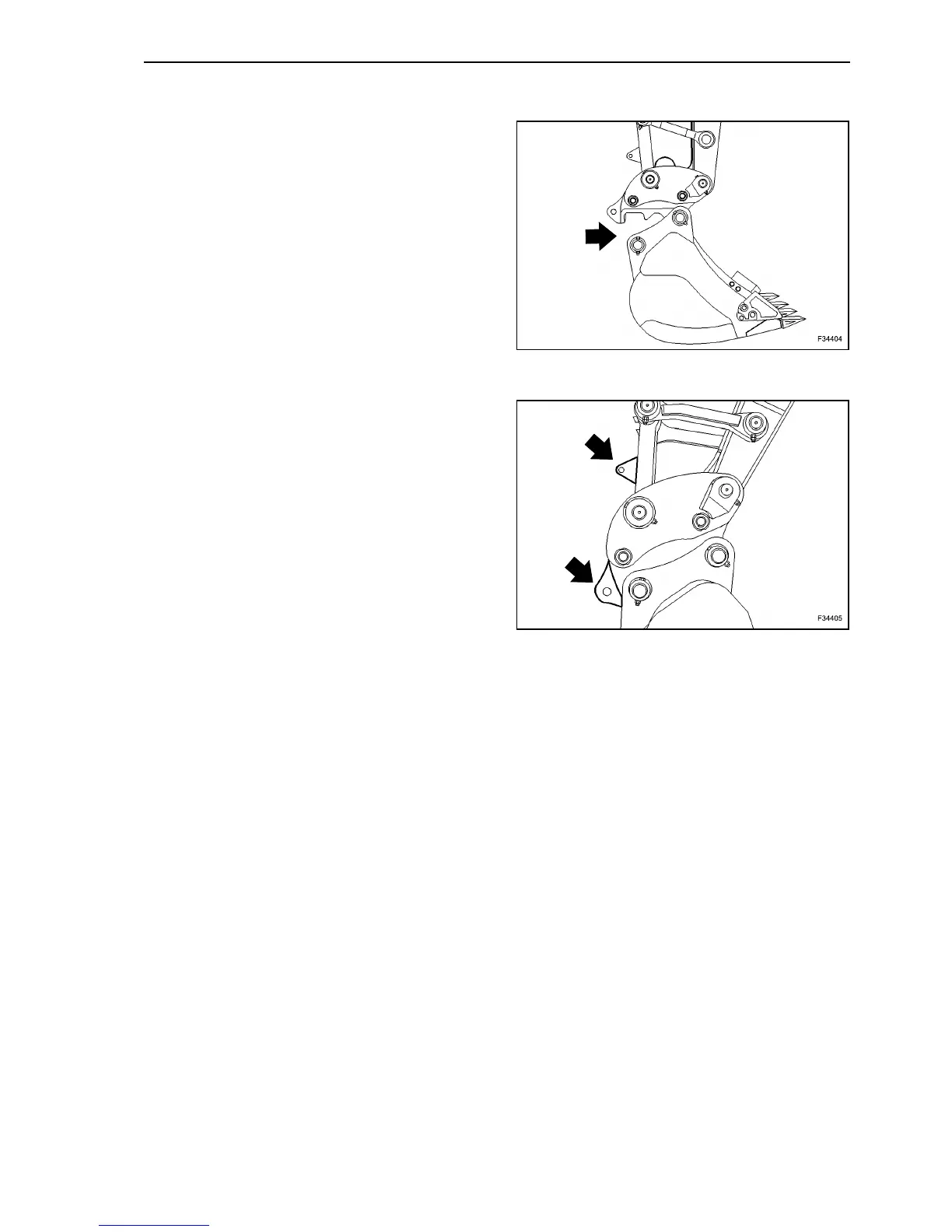

By moving the dipper hydraulic control lever, place
this one to vertical position, slightly tilted toward the
cab, so as to release the safety device.
By moving the bucket hydraulic control lever, lean
the bucket on the ground on a flat and firm surface.
Set the switch to unlocking position. The acoustic
alarm sounds.
Pull out the bucket cylinder rod completely and hold
it under pressure, to allow the locking hook to
retract.
Lift the dipper and leave the bucket on the ground.
HANDLING OF LOADS
When lifting loads, the ropes and chains have to be
secured to the proper lifting eyes of the bucket link
or quick coupler.
IMPORTANT: the maximum load carrying capacity
of the lifting eyes or quick coupler has not to be
exceeded.
