SUPPLIES AND SERVICE CHART
4-43
TRAVEL GEARBOXES - OIL LEVEL

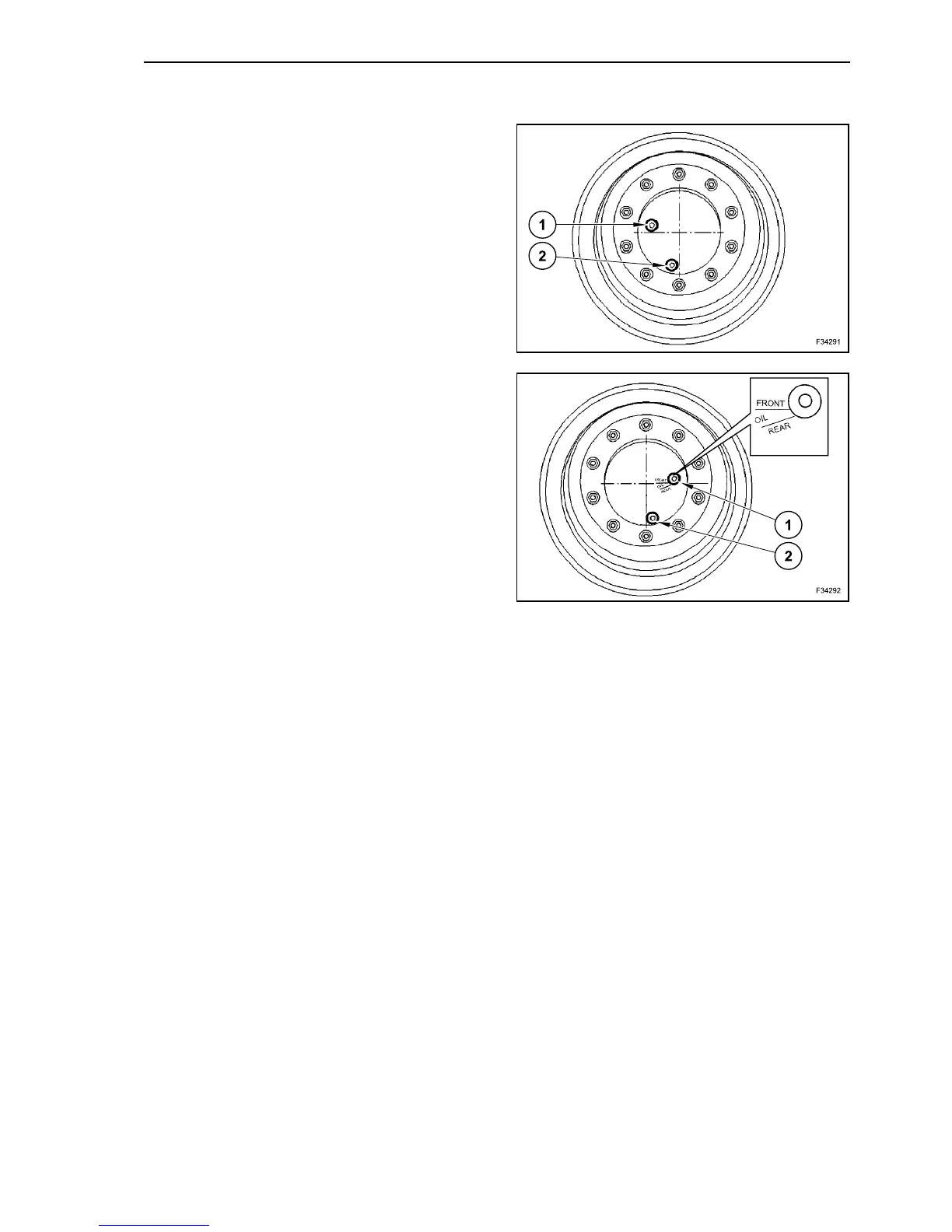

Bring the screw plugs (1) and (2) into position
depending on the wheel-hub installed.
Screw plug (1) must be above the centreline.
The line under the word “Front” must be in horizon-
tal position.
Clean the area around screw plugs (1) and (2).
Unscrew the screw plug (1) slowly, until the inner
pressure is completely released. Only after this
operation, unscrew the plug completely.
The oil level must be flush with the hole edge. If nec-
essary, top up oil to level of drilled hole.
Screw up the screw plug (1).
Repeat check on other wheel-hub gear.
