DATA AND TECHNICAL SPECIFICATIONS
8-9

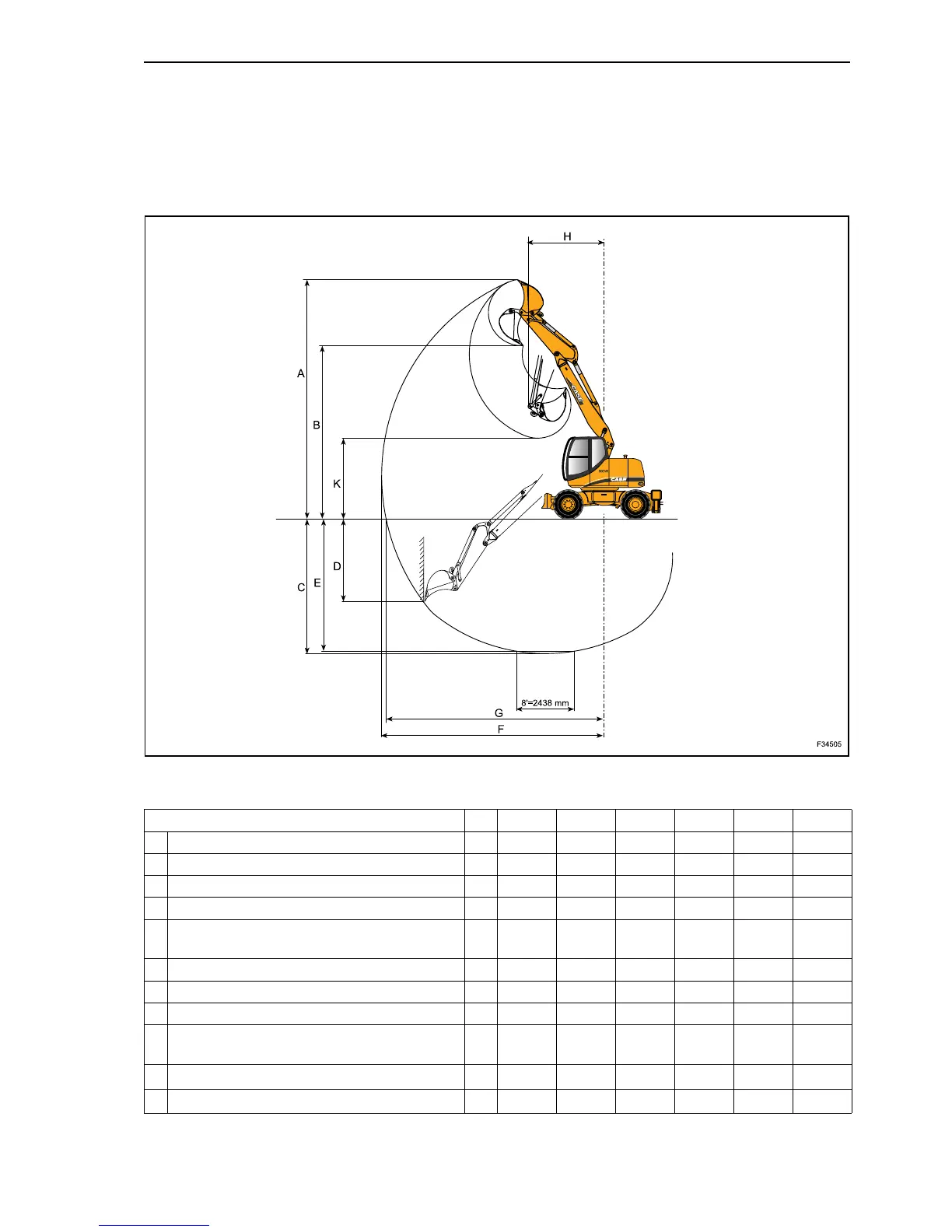

DIGGING PERFORMANCE
WX 145 MODELS
OUTFIT WITH PLACING BOOM
Dipper mm in 2000 78.74 2300 90.55 2600 102.36
A Maximum digging height mm in 9200 362.20 9300 366.14 9500 374.01
B Maximum loading height mm in 6800 267.70 6900 271.65 7200 283.46
C Maximum digging depth mm in 4700 185.03 5000 196.84 5300 208.66
D Maximum vertical wall digging depth mm in 2800 110.24 2900 114.17 3000 118.11
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 4600 181.10 4900 192.91 5200 204.72
F Maximum digging reach mm in 8300 326.77 8500 334.64 8800 346.46
G Maximum digging reach at ground mm in 8100 318.90 8300 326.77 8600 338.58
H Minimum swing radius mm in 2700 106.30 2600 102.36 2700 106.30
K
Maximum loading height (dipper
retracted)
mm in 3300 129.92 3000 118.11 2700 106.30
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 95.2 21402.9 95.2 21402.9 95.2 21402.9
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 68.2 15332.7 62.4 14028.7 57.4 12904.6
