FUEL FILTER/S - WATER DRAINING
NOTE: the WX 145 excavator is equipped with fuel
filter. The WX 165 and WX 185 excavators are
equipped with two fuel filters.
The fuel filters have the aim to filter impurities and to
separate the water contained in the fuel. The fuel fil-
ters are equipped with a preheating device and with
a water sensor.
The fuel filters are installed inside of the engine
compartment, in front of the engine and are accessi-
ble through the rear right cover.

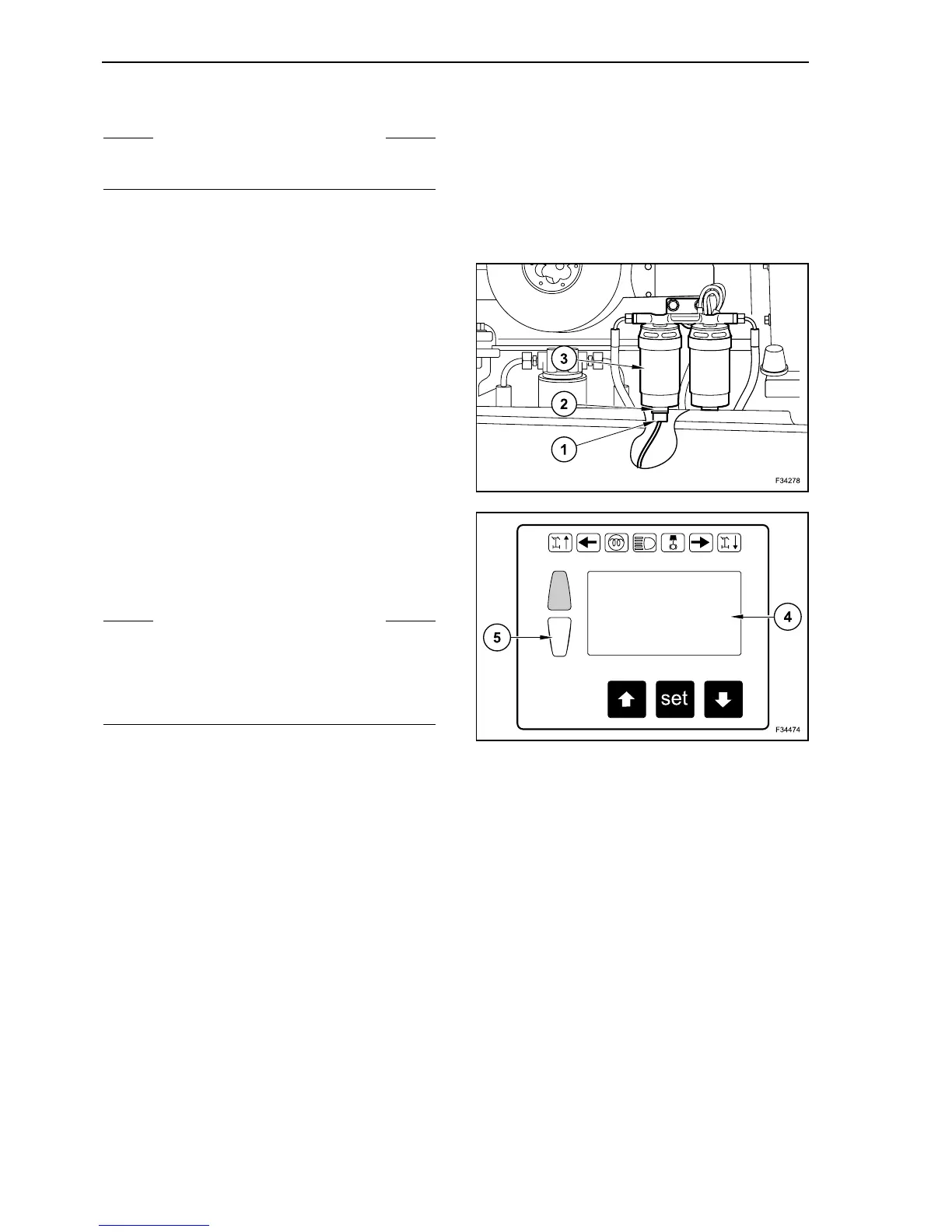

A sensor (1) is fastened on the draining valve (2) of
the filters (3), this sensor activates the yellow lamp
(5) on the multi-function display, when the presence
of water is detected inside of the fuel filter separator.
A brief warning is sounded at the same time.
Beyond the error code 7048, in the middle lower
section of the multi-function display (4) appears a
short description of the error code:
“Error water in fuel sensor”.
Open the cooler side cover on the right side of the
upper structure.
Now the fuel filters (3) are accessible.
Place a container below the filters to collect the
water to be drained.
Take out from the draining valve the connector by
pulling it downward.
Open the draining valve (2), located on the bottom
of the filter. Water drains.
When only fuel comes out, close the draining valve
(2).
Refit the connector with a slight pressure.
Check the filter housings for leaks.
S WARNING S
Water contained in the fuel can corrode, damage or
wear the engine injection system.
S WARNING S
Drain immediately water from the filter, when on the
multi-function display lights up the yellow lamp (5)
and the error code 7048 is shown. If within 30 min-
utes the error code is shown again, water has nec-
essarily to be drained from the tank.
34
Fault no.7048
Error water in fuel sensor
