Case WX185 - MM in 8300; MM in 6000

SECTION 8
8-20

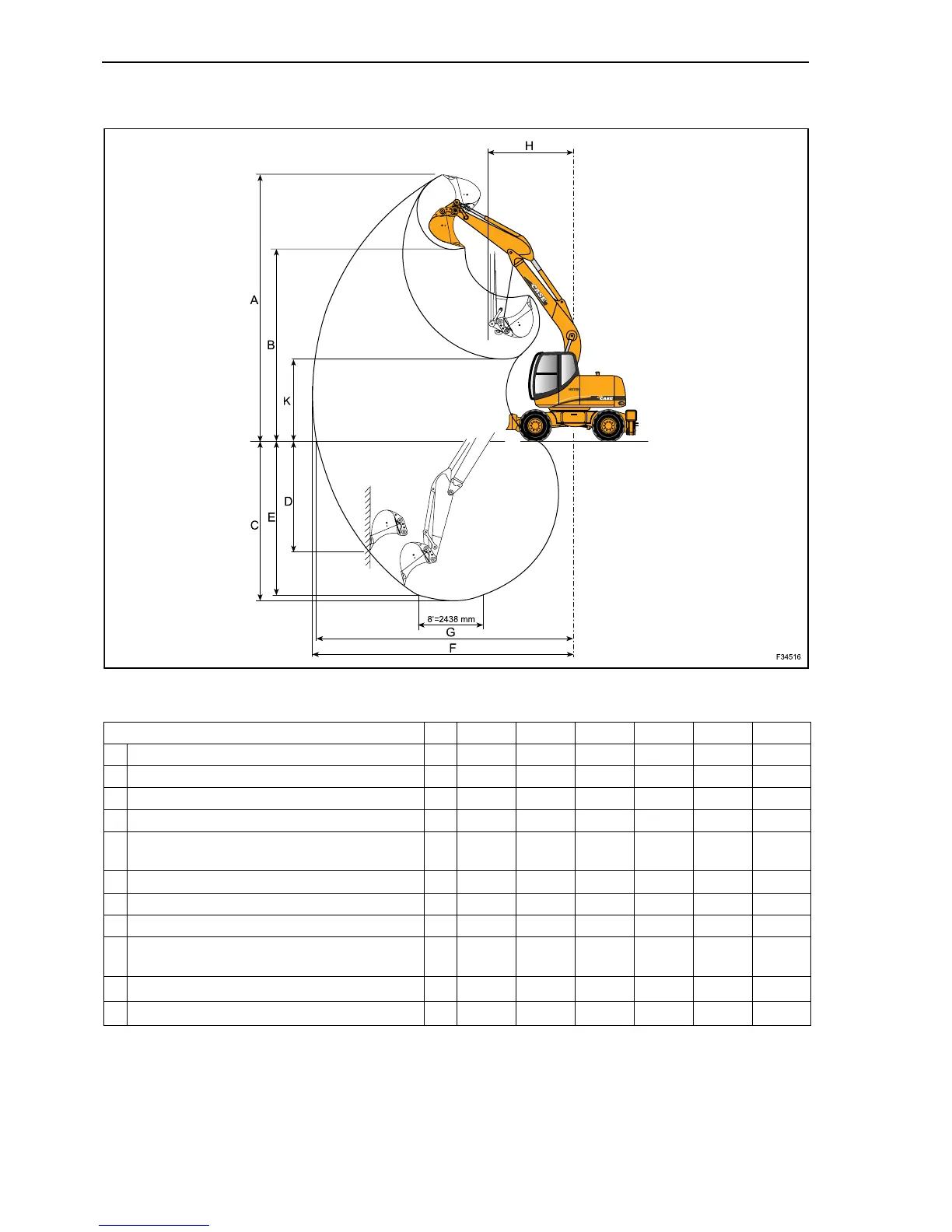

OUTFIT WITH MONOBOOM
Dipper mm in 2000 78.74 2400 94.49 2800 110.24
A Maximum digging height mm in 9000 354.33 9200 362.20 9400 370.07
B Maximum loading height mm in 6400 251.96 6600 259.84 6800 267.71
C Maximum digging depth mm in 5200 204.72 5600 220.47 6000 236.22
D Maximum vertical wall digging depth mm in 3100 122.04 3500 137.79 3800 149.60
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 4900 192.91 5400 212.59 5800 228.34
F Maximum digging reach mm in 8800 346.45 9200 362.20 9600 377.95
G Maximum digging reach at ground mm in 8600 338.58 9000 354.33 9400 370.07
H Minimum swing radius mm in 3300 129.92 3300 129.92 3300 129.92
K
Maximum loading height (dipper
retracted)
mm in 3200 125.98 2800 110.23 2300 94.48
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 125.4 28192.4 125.4 28192.4 125.4 28192.4
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 108.7 24437.9 97 21807.5 87.6 19694.2
