CONTROLS AND INSTRUMENTS
2-11
MULTI-FUNCTION DISPLAY

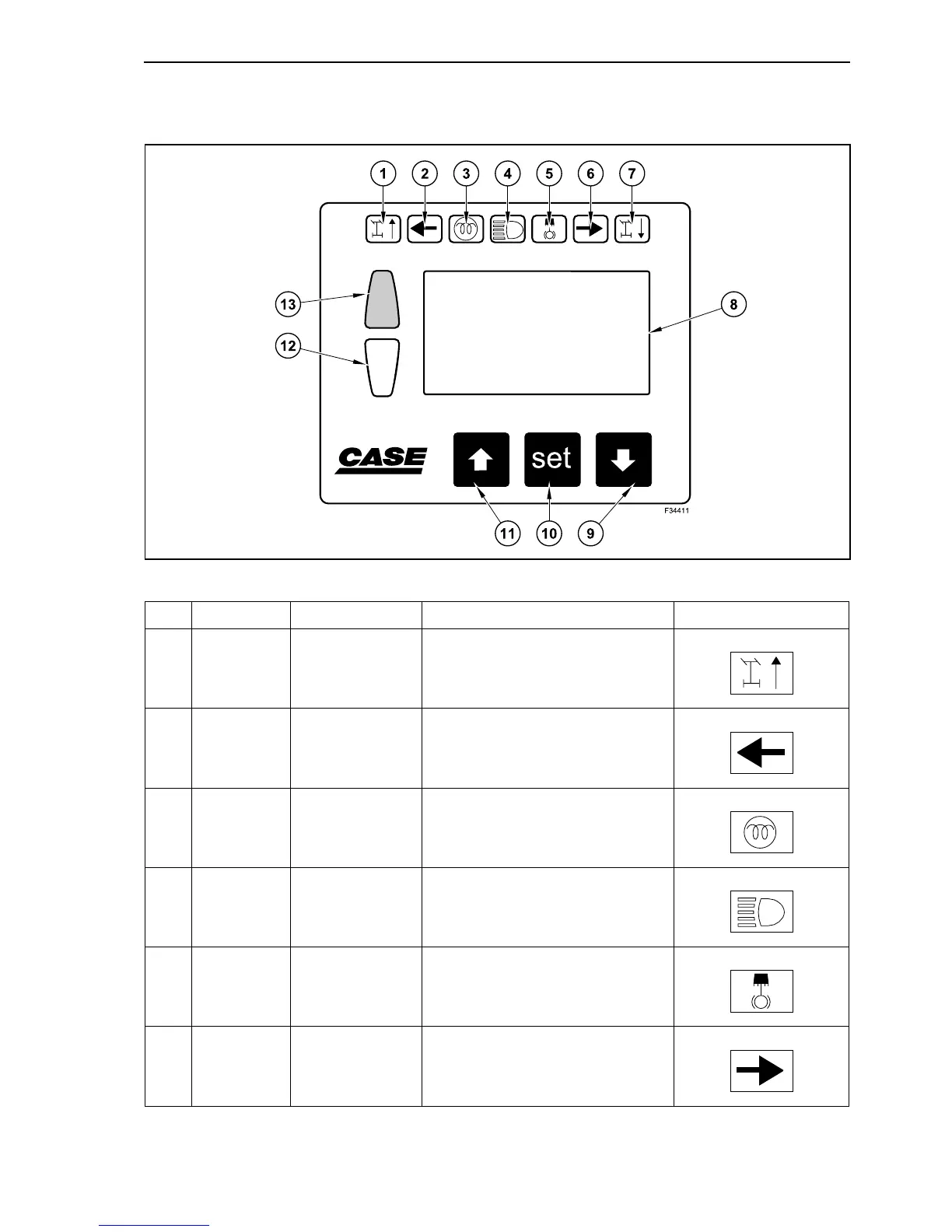

Ref. Description Operation Symbol
1 Lamp Travel direction
This light turns on when the forward
travel is engaged.
2 Lamp Turn signal light
It flashes when the left turn signal is
activated.
3 Lamp Preheating It turns on during preheating.
4 Lamp Main beams
It turns on blue, when the main
beams are activated.
5Lamp
Upper structure
holding brake
This light turns on when the slewing
brake is engaged.
6 Lamp Turn signal light
It turns on when the right turn signal
is activated.
