SECTION 7
7-28
Depending on the working needs and conditions of
use, up to four hydraulic oil pressure and volume
flow configurations can be set for hydraulic rotary
cutter.
For the first configuration - rotary cutter 1 - the
machine is delivered ex factory with the following
parameter settings:
- volume flow 80 l/min (21.10 gal/min).
- pressure 160 bar (2320 psi).
For rotary cutters 2 thru 4, the preset values are 0.
In the working mode, depress an arrow key until
“MACHINE” appears in the lower part of the display
and the machine symbol is marked by a frame.
Confirm with “set” button.
Depress the arrow buttons until the bar is on
“ROTARY CUTTER”. Confirm with “set” button.
The arrows on the right side of display indicate that
other sub-menus can be recalled.
To get back to the “MACHINE” menu, depress the
button with the upward arrow (⇑) or downward
arrow button (⇓), until the beginning or the end of
the display selection is reached. When scrolling is
continued on reaching the beginning or the end of
the list, the program returns to the next higher
menu.
The return to the next higher menu is automatic if
the buttons are not pressed for a prolonged period.

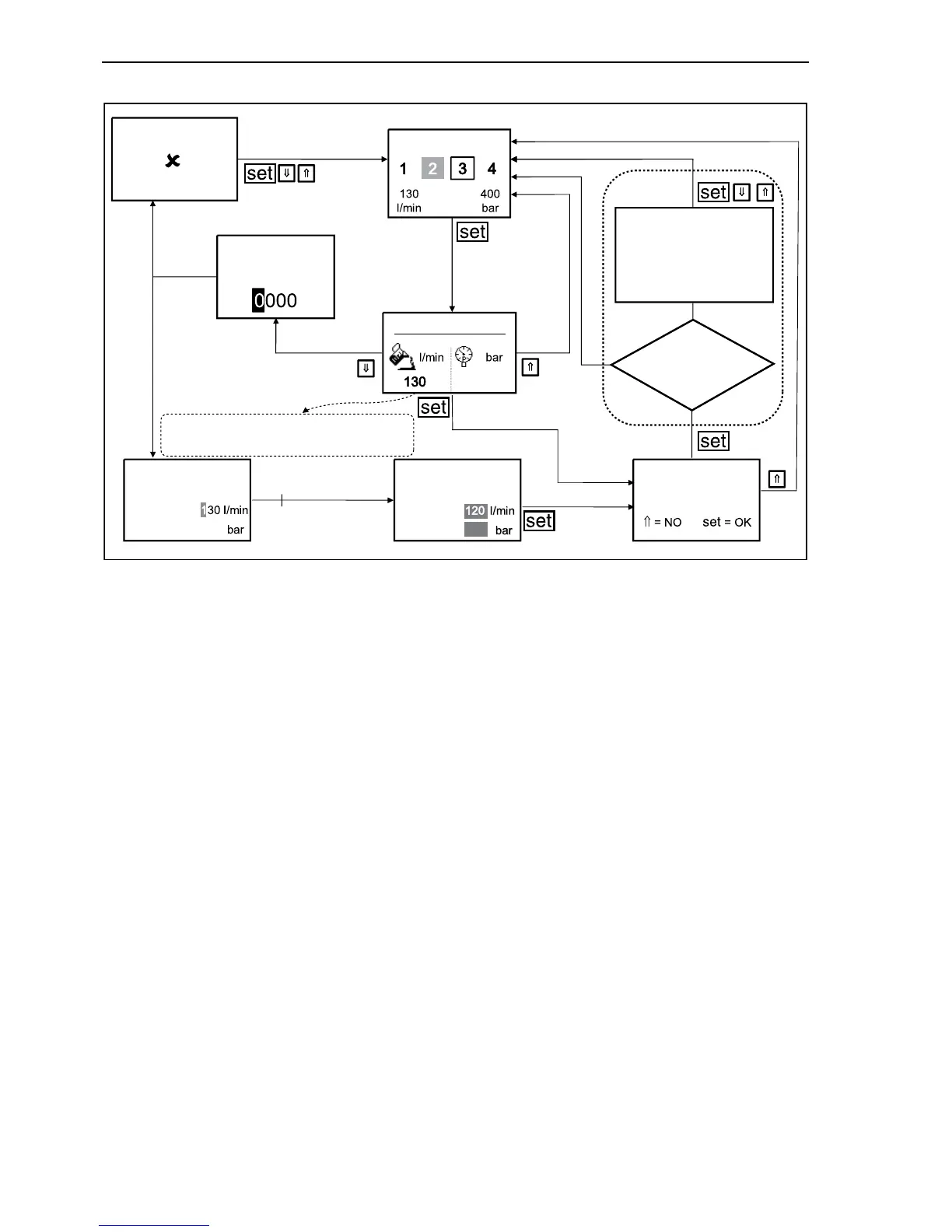

Confirm with “set” button, the sub-menu “ROTARY
CUTTER” is recalled. The grey number field indi-
cates actually active cutter 2 with the selected
parameters for volume flow and pressure.
By means of the arrow buttons, you can set 4 differ-
ent cutters settings. The selection is marked by a
frame around the number. In the example shown
rotary cutter 3 is preselected.
Depress “set” to confirm the selection of cutter 3.
To activate the settings for cutter 3 without any
changes, depress the “set” button. The following
options are available:
- to reject selected cutter 3 and to retain the setting
for cutter 2.
Depress the button with the upward arrow (⇑);
- to activate selected cutter 3 with unchanged set-
tings. Depress the “set” button. The setting is
saved.
F34194
170
170 180
WRONG CODE
PRESS ANY KEY
Data input
Updating per-
formed by EHC?
INPUT CODE
ROTARY CUTTER 3
ROTARY CUTTER 3
ROTARY CUTTER 3 ROTARY CUTTER 3
NO
YES
Save changes?
If the values displacement/pressure are
not defined “0” will be displayed.
Displacement
Pressure
Displacement
Pressure
ROTARY CUTTER 3
PARAMETERS NOT
UPDATED. RE-TEST.
PRESS ANY KEY.
