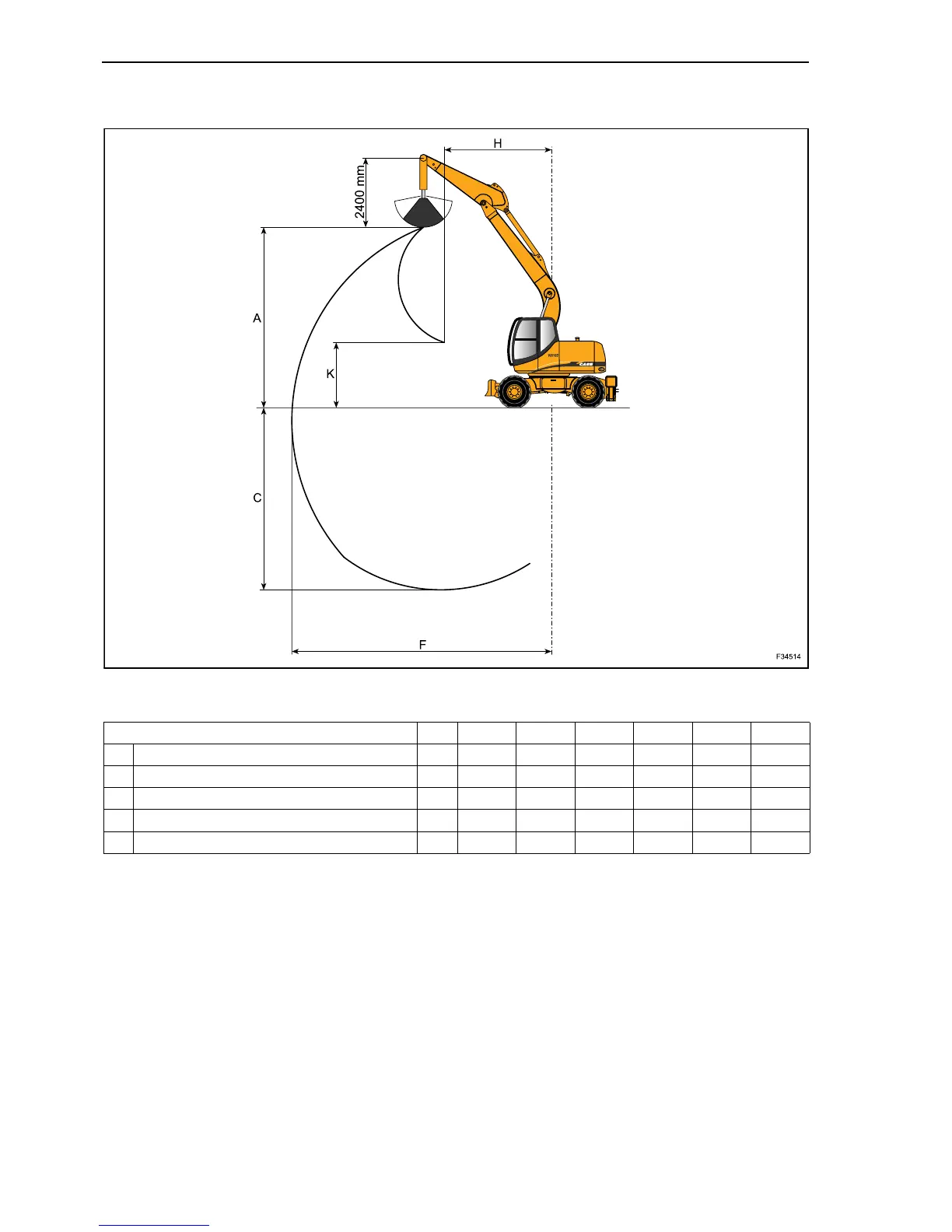

Monoboom
Dipper mm in 2 300 90.55 2600 102.36 2900 114.17
A Maximum loading height mm in 5300 208.66 5400 212.60 5600 220.47
C Maximum depth mm in 6500 255.90 6800 267.72 7100 279.52
F Maximum outreach mm in 7400 291.34 7600 299.21 7900 311.02
H Front swing radius mm in 2600 102.36 2600 102.36 2700 106.30
K Minimum loading height mm in 1600 62.99 1300 51.18 1000 39.37
