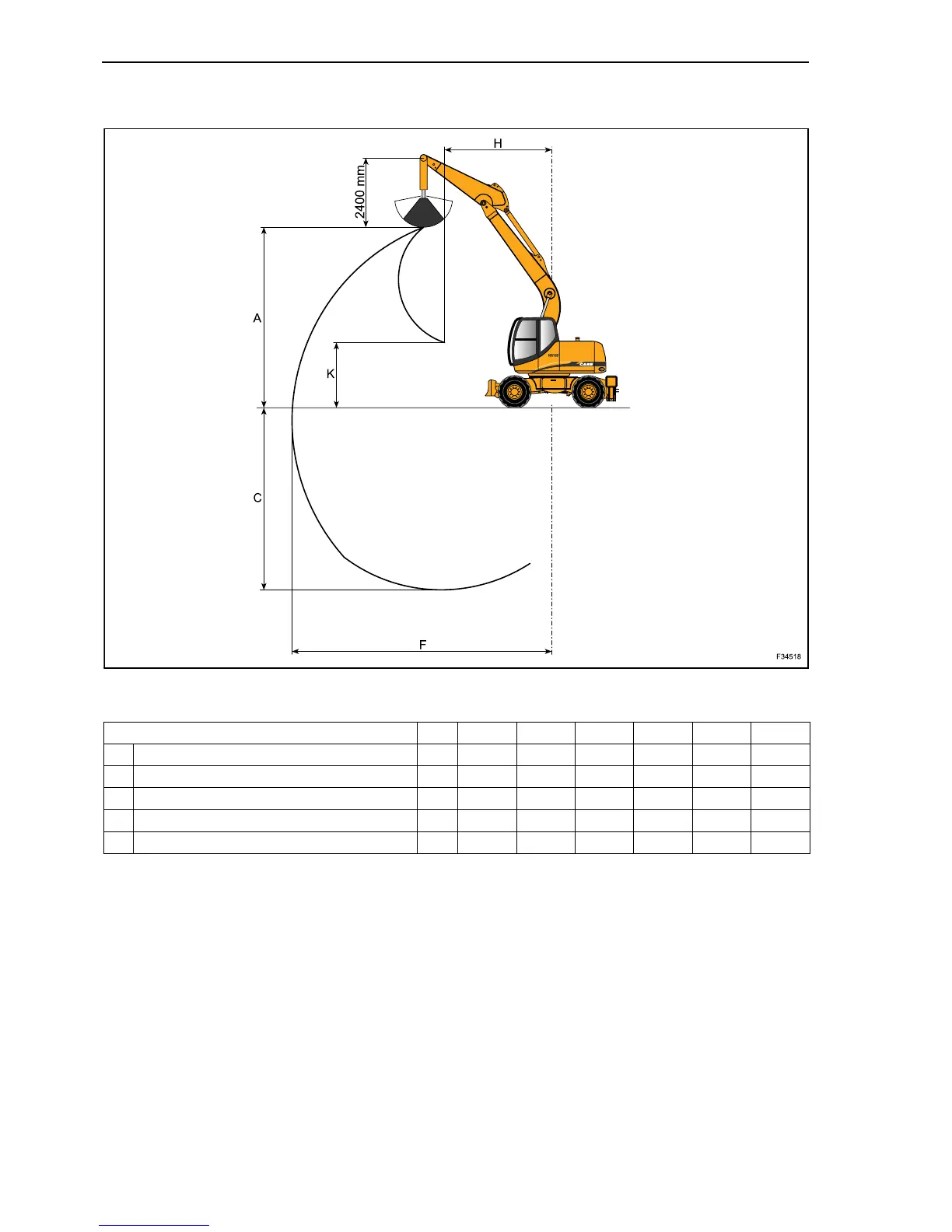

Monoboom
Dipper mm in 2000 78.74 2400 94.49 2800 110.24
A Maximum loading height mm in 5300 208.66 5500 216.53 5800 228.35
C Maximum depth mm in 6200 244.09 6600 259.84 7000 275.59
F Maximum outreach mm in 7500 295.27 7800 307.09 8200 322.83
H Front swing radius mm in 2600 102.36 2700 106.30 2700 106.30
K Minimum loading height mm in 2200 86.61 1800 70.87 1400 55.12
