Using Advanced Setup
The following table describes each of the six available trigger sources.
Note
The trigger sources you can select depends on the sampling mode selected with the Sample
Setup (page 3-5).
For this sampling mode: The following trigger source(s) can be selected:
Realtime [EXE]
key, Count Down
Fast [EXE]
k
ey, Count Down, CH1, Mic
Normal [EXE]
k
ey, Count Down, CH1, SONIC,
[START]
k
ey
Extended [EXE]
k
ey
Sound [EXE]
k
ey, Count Down, Mic
Clock CH1
Period CH1
k Trigger Setup

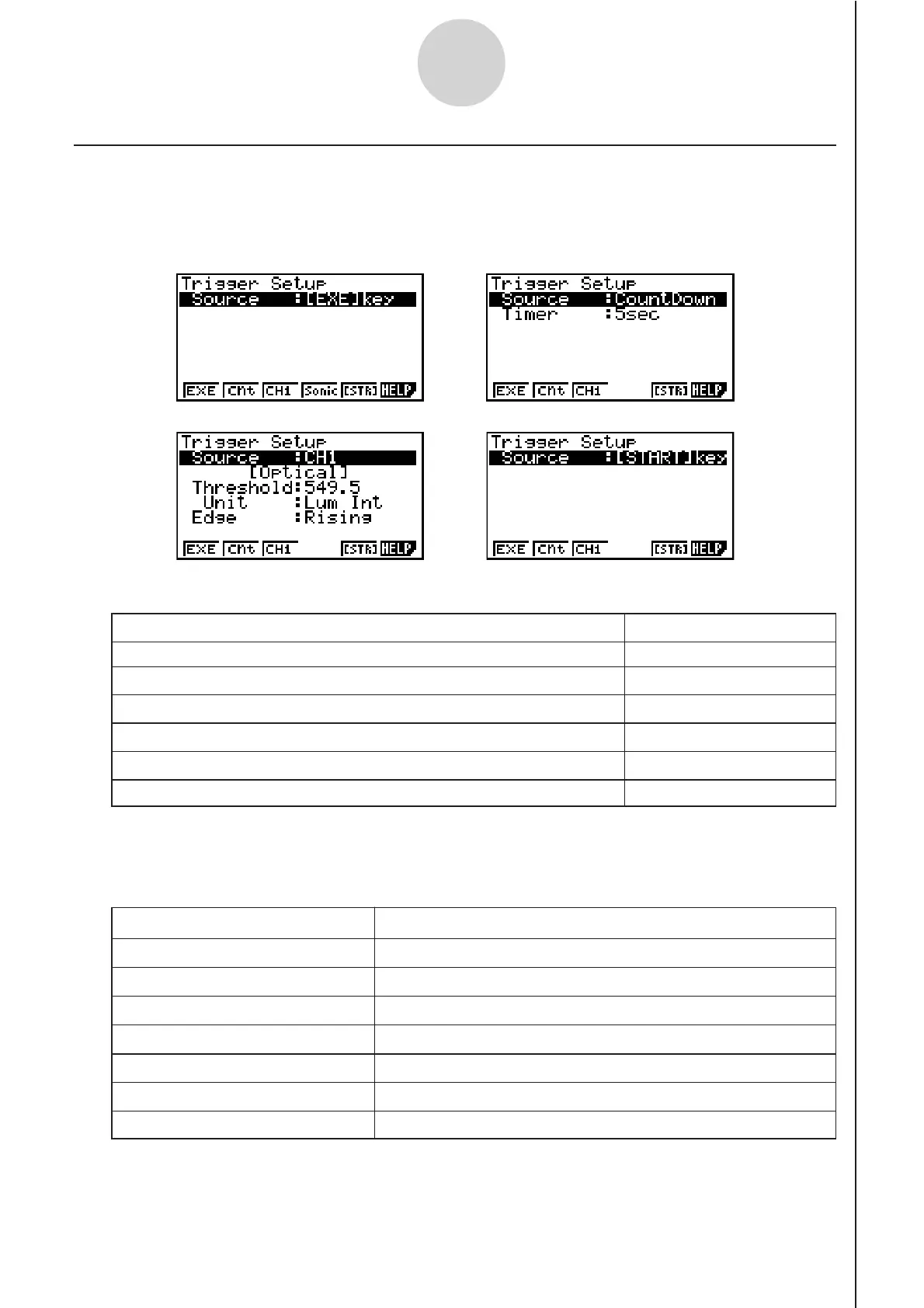

You can use the Trigger Setup screen to specify the event that causes sampling to start (w
key operation, etc.) The event that causes sampling to start is called the “trigger source”,
which is indicated as “Source” on the Trigger Setup screen.
To start sampling when this happens: Select this trigger source:
After the specified number of seconds are counted down Count Down
When the EA-200’s built-in microphone detects sound Mic
When the w key is pressed [EXE] key
When input at the SONIC channel reaches a specified value SONIC
When input at CH1 reaches a specified value CH1
When the EA-200’s [START/STOP] key is pressed [START] key
