Casio Privia PX-S7000 User Manual

Using the F Button Set
EN-90

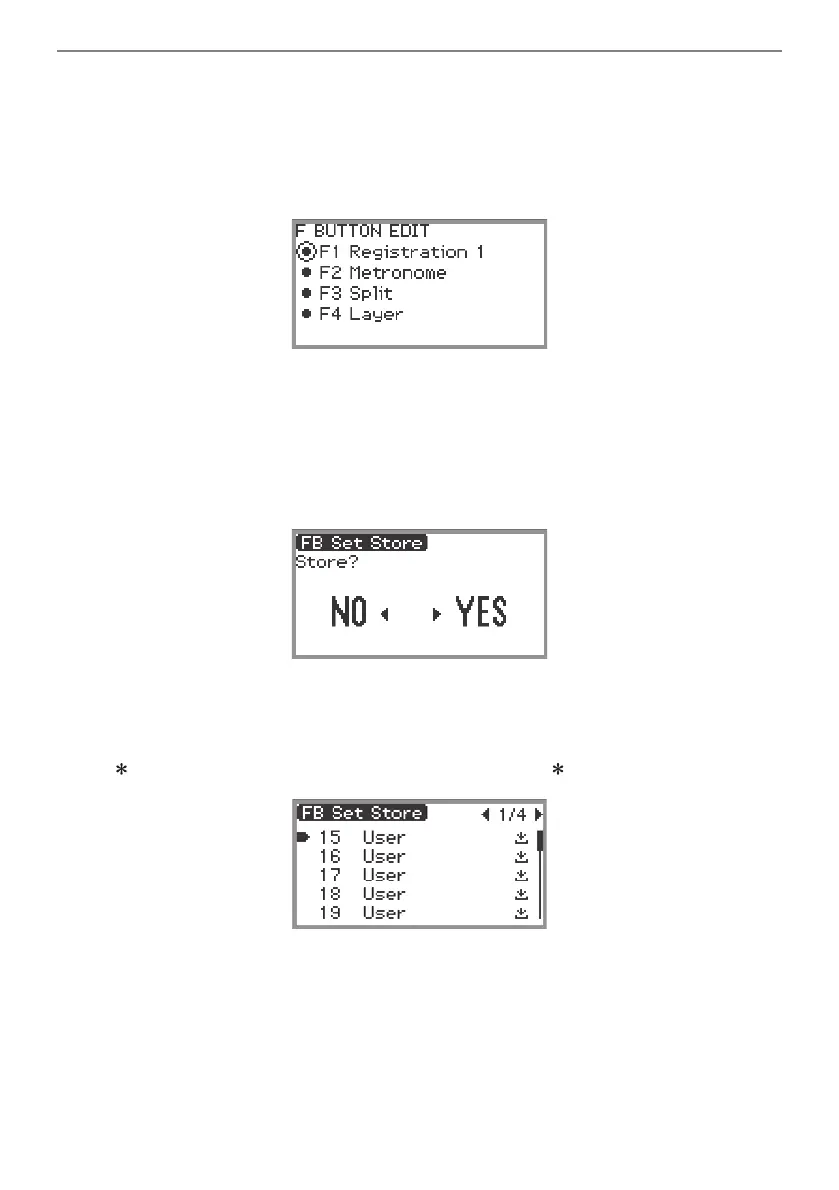

3. Trace the touch ring to change the setting value for the F1 button.
• For details on the displayed settings and the corresponding functions, see “F Button Function
List” (page EN-97).
• To assign a tone to an F button, you must change the setting value to “Tone Category” and
touch the ENTER button to select a tone. For more information, see “Assigning a tone to an F
button” (page EN-93).
• To change the function assignments of other F buttons, touch the top or bottom of the touch ring
while the “F BUTTON EDIT” screen is displayed to select “F2”, “F3”, or “F4”, then change the
setting of the selected button.
4. When you are done making the necessary changes, touch the EXIT button.
A screen appears to confirm whether you want to save the F Button Set. To exit the operation
without saving, touch the left of the touch ring (NO).
5. Touch the right of the touch ring (YES) to save.
A screen appears to select which user F Button Set to use as the save destination.
• The user F Button Sets that have already been assigned functions and saved are marked with a
“ ” to the right of their numbers. Selecting a set marked with “ ” will overwrite it.

Casio Privia PX-S7000 Specifications

General

Touch Sensitivity	5 sensitivity levels, off
Sound Source	Multi-dimensional Morphing AiR Sound Source
Polyphony	256 notes
Key Action	Smart Hybrid Hammer Action Keyboard
Effects	Reverb, Chorus, DSP, Brilliance
Amplifiers	8W + 8W
Bluetooth	Yes (Audio & MIDI)
Pedals	3 (Damper, Soft, Sostenuto)
Display	LCD with backlight
USB Port	Yes (Type B)
Headphone Jack	2 (Stereo standard)
Dimensions	1340 x 242 x 102 mm (w/o stand, and music stand)
Weight	14.8 kg
Included Accessories	Music stand
Power Source	AC adapter
Number of Tones	400 built-in tones
