Casio TE-2200 Service Manual

— 30 —
[DISPLAY]

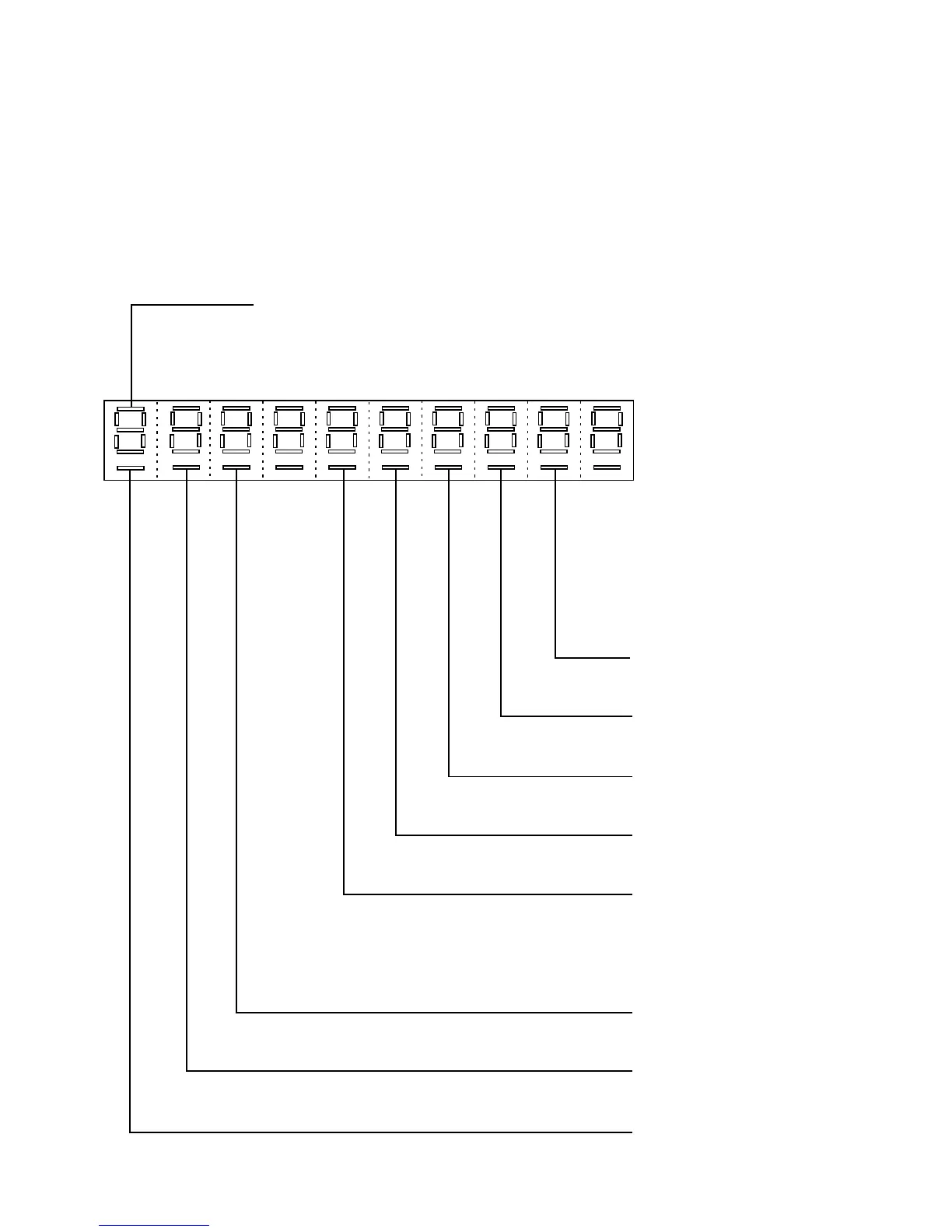

5-4. Displaying the status of the device
[Function]
The status of the device which has the status information is displayed by 7 segments (Pop-up display)
as well as lit transaction.
The status information and the displayed position are as follows. As for tact switch, the pressed LED
will be lit.
Mode display
1:PGM, 2:RF, 3:REG1, 4:REG2, 5:X 6:Z, 7:XZ2, 8:OFF
Receipt head
Off : Head down On : Head up
Journal head
Off : Head down On : Head up
No receipt paper
Off : Paper available On : No paper
No journal paper
Off : Paper available On : No paper
CF CARD sensor
Off : Not yet inserted On : Inserted
Drawer 1 sensor
Off : CLOSE On : OPEN
Drawer 2 sensor
Off : CLOSE On : OPEN
E-STAMP sensor
Off : Not yet inserted On : Inserted

Casio TE-2200 Specifications

General

Types of payment	Cash
Supported paper width	58 mm
Display digits	10 digits
Second display	Yes
Second display type	LED
Display number of characters	16
Power source	AC
AC input voltage	120-230 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	277 mm
Weight	12000 g
