Casio TE-2200 Service Manual

— 53 —
[ 30 ] OBR test
[Function]
This is a scanner test. The test enters the wait mode for the scanner input, and waits only for scanner.
The test determines the result between OK and NG by comparing the fixed data and the read data.
Make sure to connect OBR (HHS-15 or HHS-17) to COM 2.

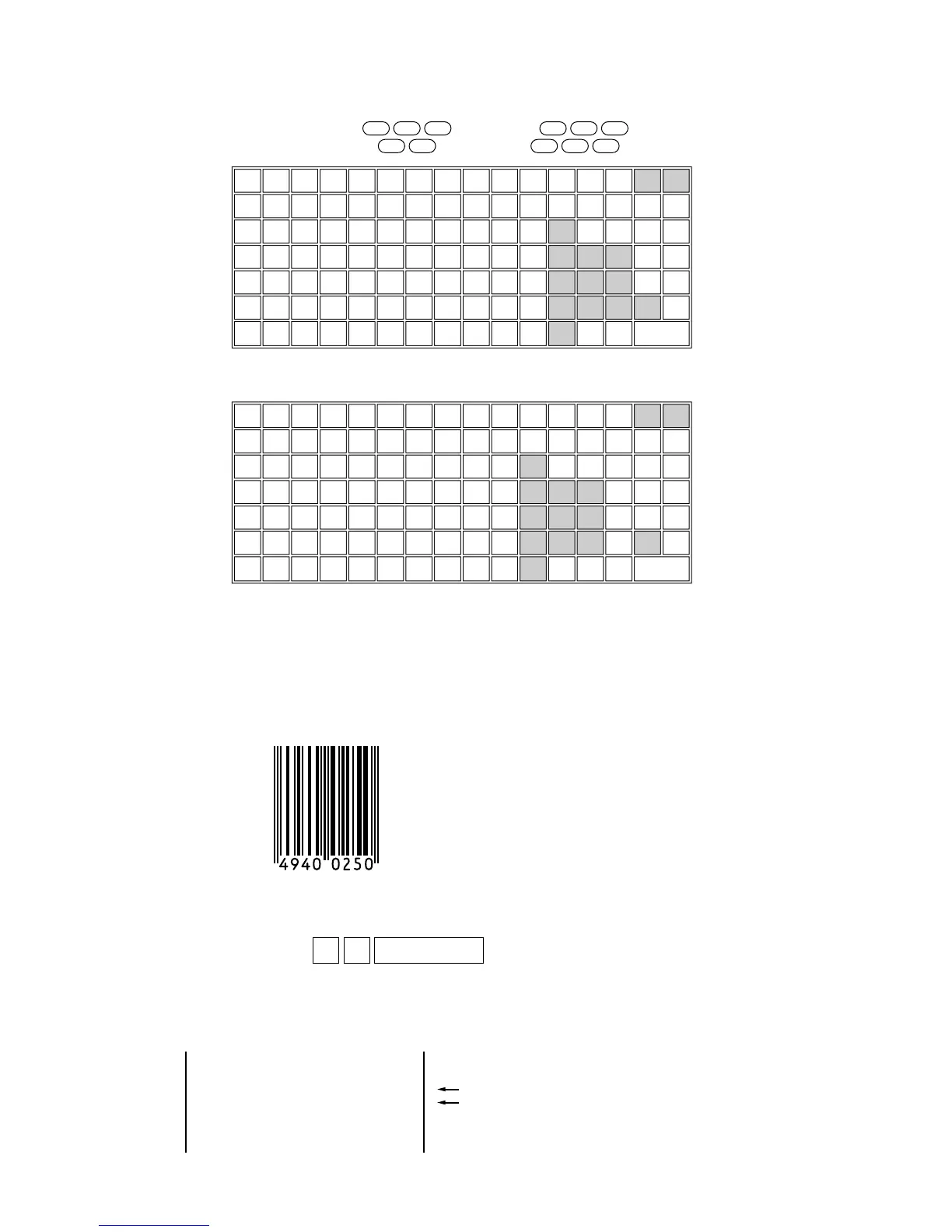

* The fixed barcode is as follows.
[Operation]
Operation : 9 5 SUBTOTAL
To stop the test, press “C” key or turn off the power by rotating the key.
[Print]
TE-2400 for Eu
038 045 052 059 066 073 080 087 094 101 108 031 029 026
037 044 051 058 065 072 079 086 093 100 107 030 028 025 023 019
036 043 050 057 064 071 078 085 092 099 106 027 024 022 018
035 042 049 056 063 070 077 084 091 098 105 021 017
034 041 048 055 062 069 076 083 090 097 104 020 015
033 040 047 054 061 068 075 082 089 096 103 014 016
032 039 046 053 060 067 074 081 088 095 102 011 012 013
C
7 8 9
456
123
0
RECEIPT
FEED
JOURNAL
FEED
109 110 111 114 115 116
117 118 119112 113
TE-2400 for US
045 052 059 066 073 080 087 094 101 108 038 036 033 030
044 051 058 065 072 079 086 093 100 107 037 035 032 029 023 019
043 050 057 064 071 078 085 092 099 106 027 031 028 022 018
042 049 056 063 070 077 084 091 098 105 027 021 017
041 048 055 062 069 076 083 090 097 104 026 020 015
040 047 054 061 068 075 082 089 096 103 025 014 016
039 046 053 060 067 074 081 088 095 102 011 012 024 013
C
7 8 9
456
123
0
RECEIPT
FEED
JOURNAL
FEED
OBR 9 5
OBR OK
OBR ERR ✱✱✱✱✱✱✱✱✱
ESC
END 9 5
Normal printing
Prints if the test ended with an error.

Casio TE-2200 Specifications

General

Types of payment	Cash
Supported paper width	58 mm
Display digits	10 digits
Second display	Yes
Second display type	LED
Display number of characters	16
Power source	AC
AC input voltage	120-230 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	277 mm
Weight	12000 g
