Casio TE-2200 Service Manual

— 51 —
[ 28 ] Consumption current
[Function]
Connect LCD, REAR, DISP, OBR, and DRW then perform the test as follows.
All Pop-up display and Main display turn on. Repeat printing in the internal printer.
[Operation]

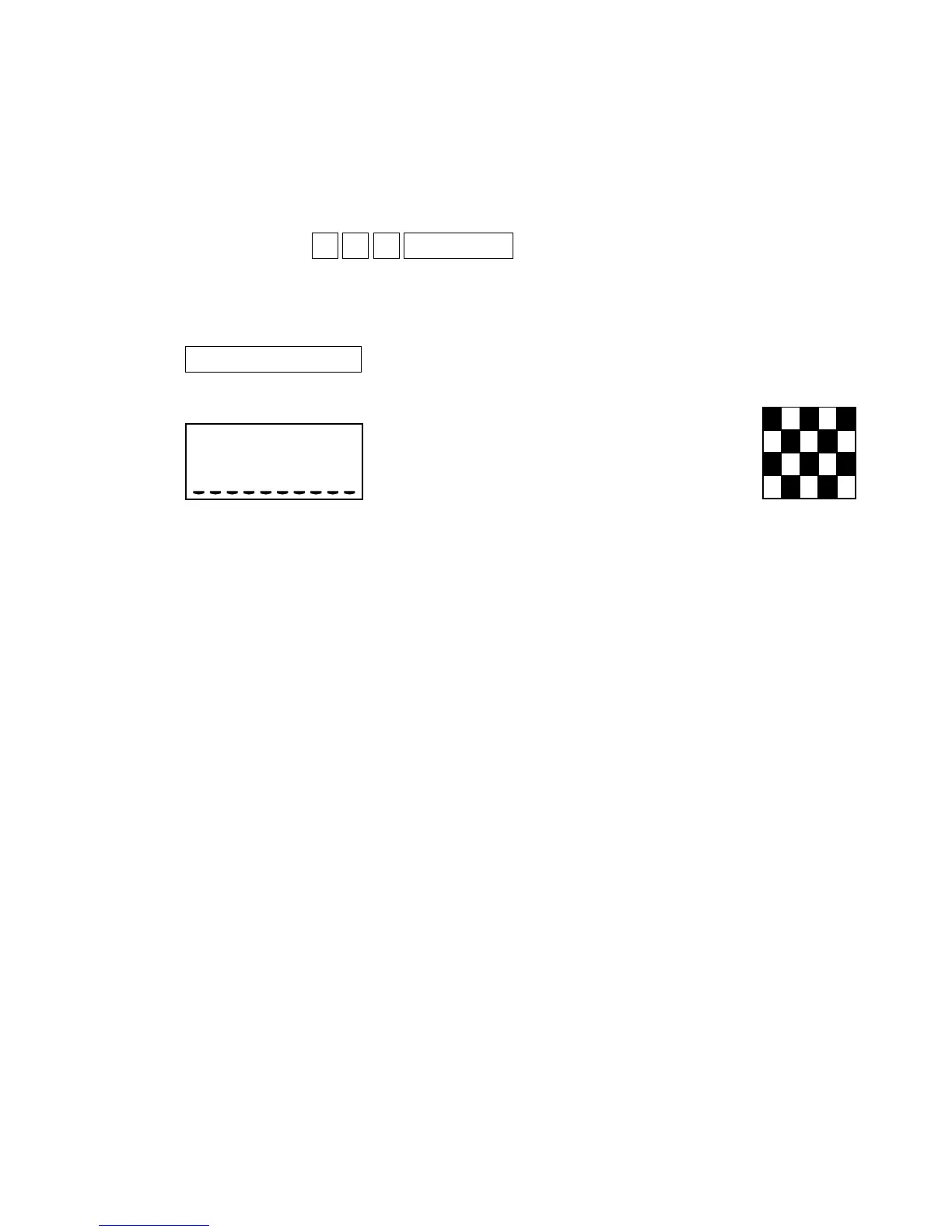

Operation : 1 9 3 SUBTOTAL
Press “C” key or turn off the power to stop.
[Pop-up display]
[Main display]
8.8.8.8.8.8.8.8.
DIAG 193
8888888888
,,,,,,,,,,
Print pattern image
[Print]
Prints only in the receipt of the internal printer
with 50% dot rate.

Casio TE-2200 Specifications

General

Types of payment	Cash
Supported paper width	58 mm
Display digits	10 digits
Second display	Yes
Second display type	LED
Display number of characters	16
Power source	AC
AC input voltage	120-230 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	277 mm
Weight	12000 g
