Casio TK-6500 - In-line (ARCNET) Initial Test

- 43 -
E : Error status
(01 : Framing error)
(02 : Over run error)
(04 : Parity error)
(40: Transmit/ Receive data error/ Data is not 55.)
(80 : Time out error)

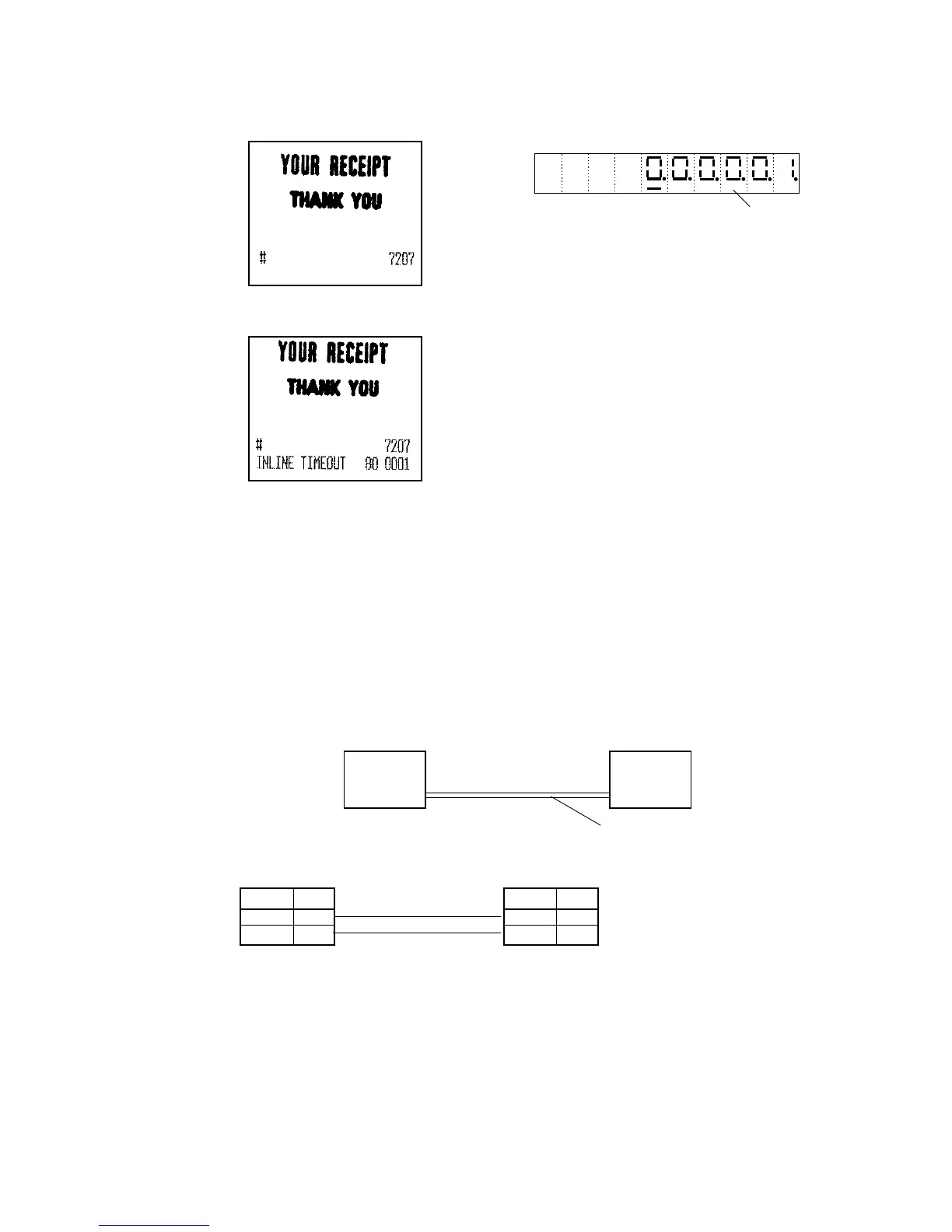

[PRINT] [DISPLAY]
Normal End
Error End (Time out error)
Segment display
Count data block
22) In-line (ARCNET) test (OPTION I/O-PB14)
This operation will test the In-line (ARCNET) function. This test need the reception
machine as shown below;
Wiring diagram for the connection cable
Signal Pin Signal Pin
SD 1 SD 1
RD 2 RD 2
Send
ECR
Receive
ECR
In-line cable
In-line In-line
In-line port In-line port
