7. DIAGNOSTIC OPERATION
7-1. To start the diagnostic program
1. Plug the power cord into an AC outlet.
2. Set the mode switch to "OFF" position.
3. While pressing the "Jounal feed " button,
turn the mode switch to "PRG" position.
4. Release the "Journal feed" button.
5. Input "99990000" and press "ST" ("#2" key).
6. Diagnostic program is executed.
7-2. Check item
The following test can be checked in the diagnostic test.
1. Key code test
2. Switch status test
3. Individul function test
7-3. Operation of each test
1. Key code test
When pressing a key, the machine displays
the following key code.

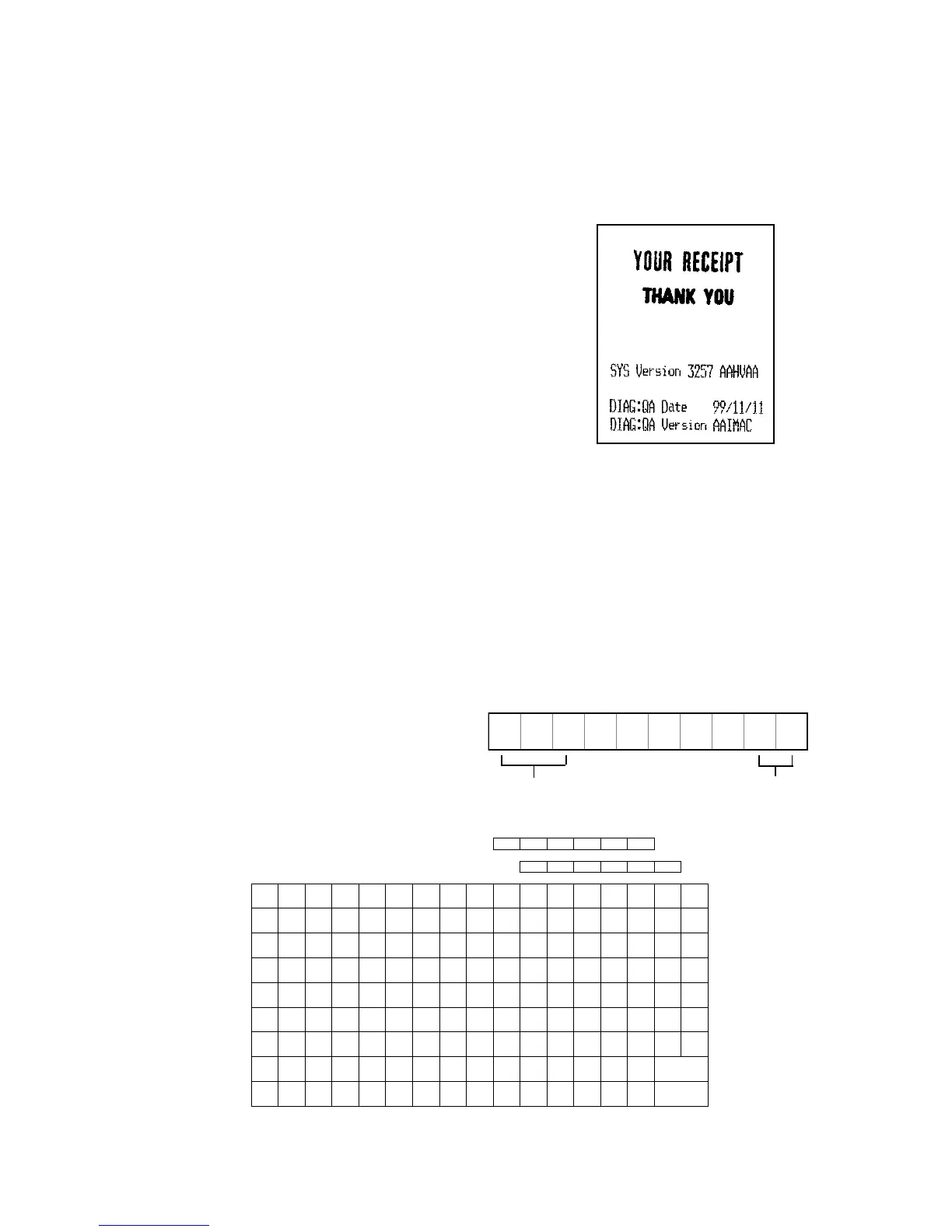

HARD KEY CODE TABLE
Hard key code
DISPLAY
Note: "014" button is work for "#2" key. "013" button is work for "#1" key.
XXX zz
Key borad information
11: Stroke Key
10: Stroke + Flat Key
01: Full Flat Key
151 152 153 154 155 156
157 158 159 160 161 162
RF JF 067 076 085 094 103 112 121 130 139 148 042 038 033 028 021
050 058 066 075 084 093 102 111 120 129 138 147 041 037 032 027 020
049 057 065 074 083 092 101 110 119 128 137 146 040 036 031 026 019
048 056 064 073 082 091 100 109 118 127 136 145 039 035 030 025 018
047 055 063 072 081 090 099 108 117 126 135 144 C 034 029 024 017
046 054 062 071 080 089 098 107 116 125 134 143 789023 016
045 053 061 070 079 088 097 106 115 124 133 142 456022 015
044 052 060 069 078 087 096 105 114 123 132 141 123 014
043 051 059 068 077 086 095 104 113 122 131 140 0 011 012 013
To Next Page
