V-R200 Installation Manual
– 15 –
(8) Align the screw holes in the protective plate with those in the bottom of the product, and fi x the protective
plate with three binding head screws.
NOTE: Pay attention to the screw length. The included two screws are a little shorter than the one that
was removed in Step (4).
(9) Be sure that the MCR cable is not caught. Then, fully tighten the two countersunk head screws.

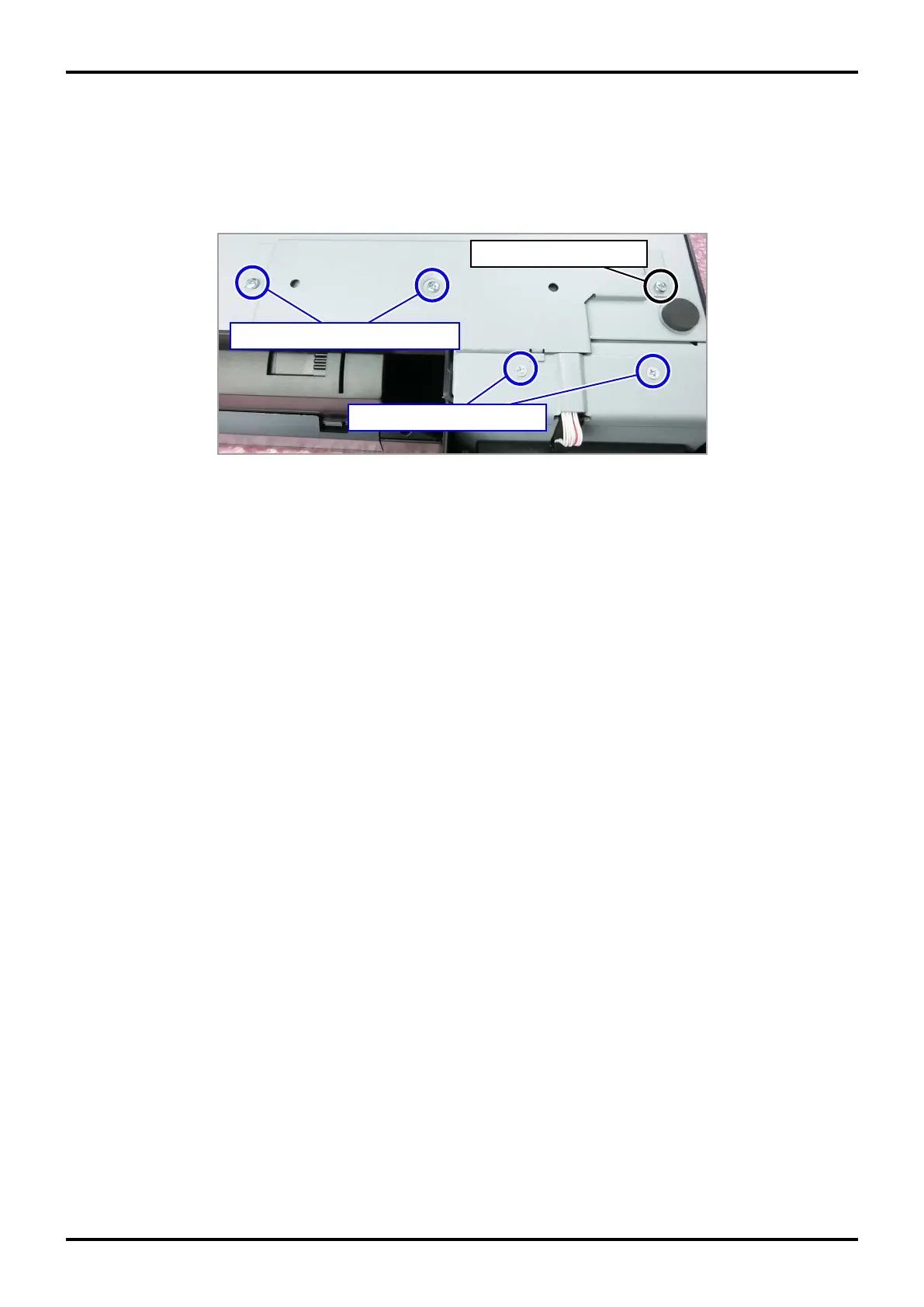

Fig. 34
Countersunk head screws
Binding head screws (included)
Binding head screw
To Next Page
