Note
 Note that regardless of whether the image being projected is being input via the projector’s
S-VIDEO terminal or VIDEO terminal, the projector outputs audio that is input via the
projector’s AUDIO IN L/R terminals.

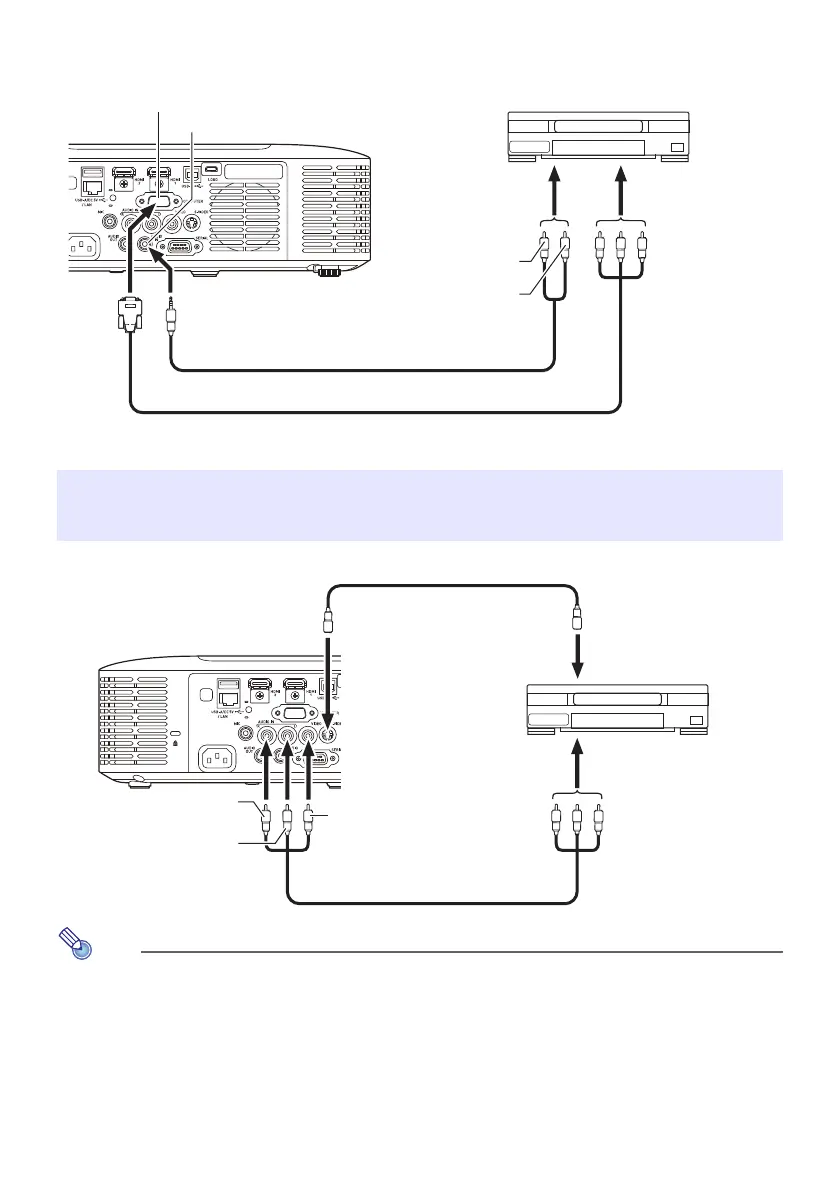

Connecting to a Composite Video Output or S-Video
Output (XJ-F Series Only)
Projector
Video device
Stereo mini plug  Pin plug type audio cable
(commercially available)
To component video
output terminals
Component video cable (commercially available)
To audio output terminals
White
Red
COMPUTER terminal
AUDIO IN terminal
To S-video output terminal
To video/audio output terminal
Yellow: To VIDEO terminal
To S-VIDEO terminal
Red: To AUDIO IN R terminal
White: To AUDIO IN L terminal
Projector
Video device
S-video cable (commercially available)
Pin plug type video/audio cable
(commercially available)

Casio XJ-V100W Specifications

General

Matrix size	0.65 \
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	20000:1
Screen size compatibility	35 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30 -30 °
Offset	33 %
Throw ratio	1.32 - 1.93:1
Zoom capability	Yes
Focal length range	18.9 - 27.2 mm
Aperture range (F-F)	2.31 - 2.73
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Maximum analog resolution	1920 x 1200 pixels
USB 2.0 ports quantity	0
Password protection type	Power on
Card reader integrated	-
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.12 W
Power consumption (typical)	135 W
Remote control type	IR
Harmonized System (HS) code	85286200

Weight and Dimensions

Width	299 mm
Height	97 mm
Weight	3500 g
