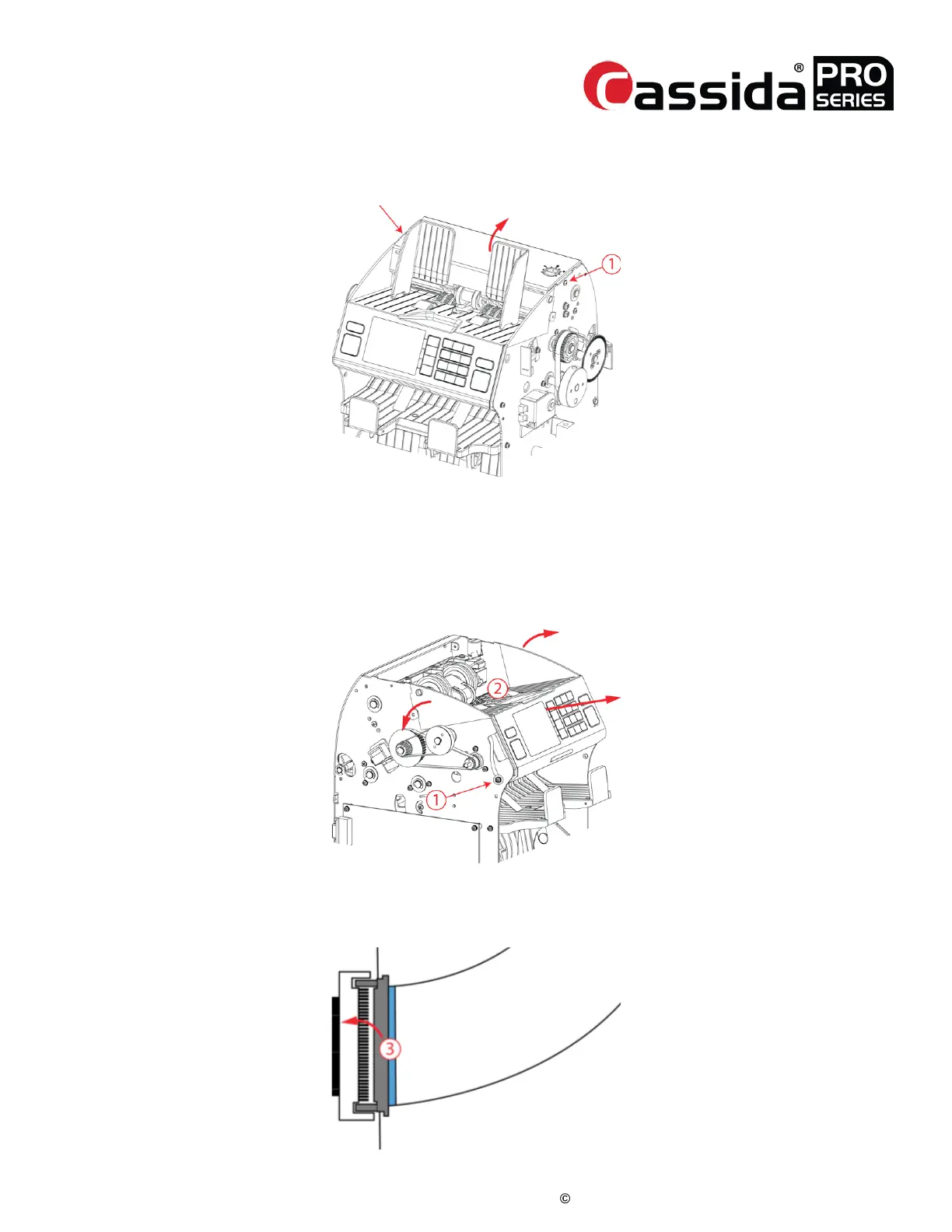

DISASSEMBLE ASSEMBLY_BANKNOTE_GUIDE
(Assembly Bank Note Guide - Top Panel)
1) Loosen 2 screws (M3x7)
4.2.
DISASSEMBLE ASSEMBLY_OP
(Assembly Hopper and Top Panel)
1) Loosen 1 screw (M3x6 SEMS) and remove FRONT_GND_1WAY wire
2) Spread wings outward and then pull out towards you
3) Pull up the connector cover and remove the harness (FRONT_TO_MAIN_FFC).
