Cassida PRO Series Service Manual

CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/
DISASSEMBLE ASSEMBLY_GUIDE_CIS_UPPER
(Assembly Guide CIS Upper)

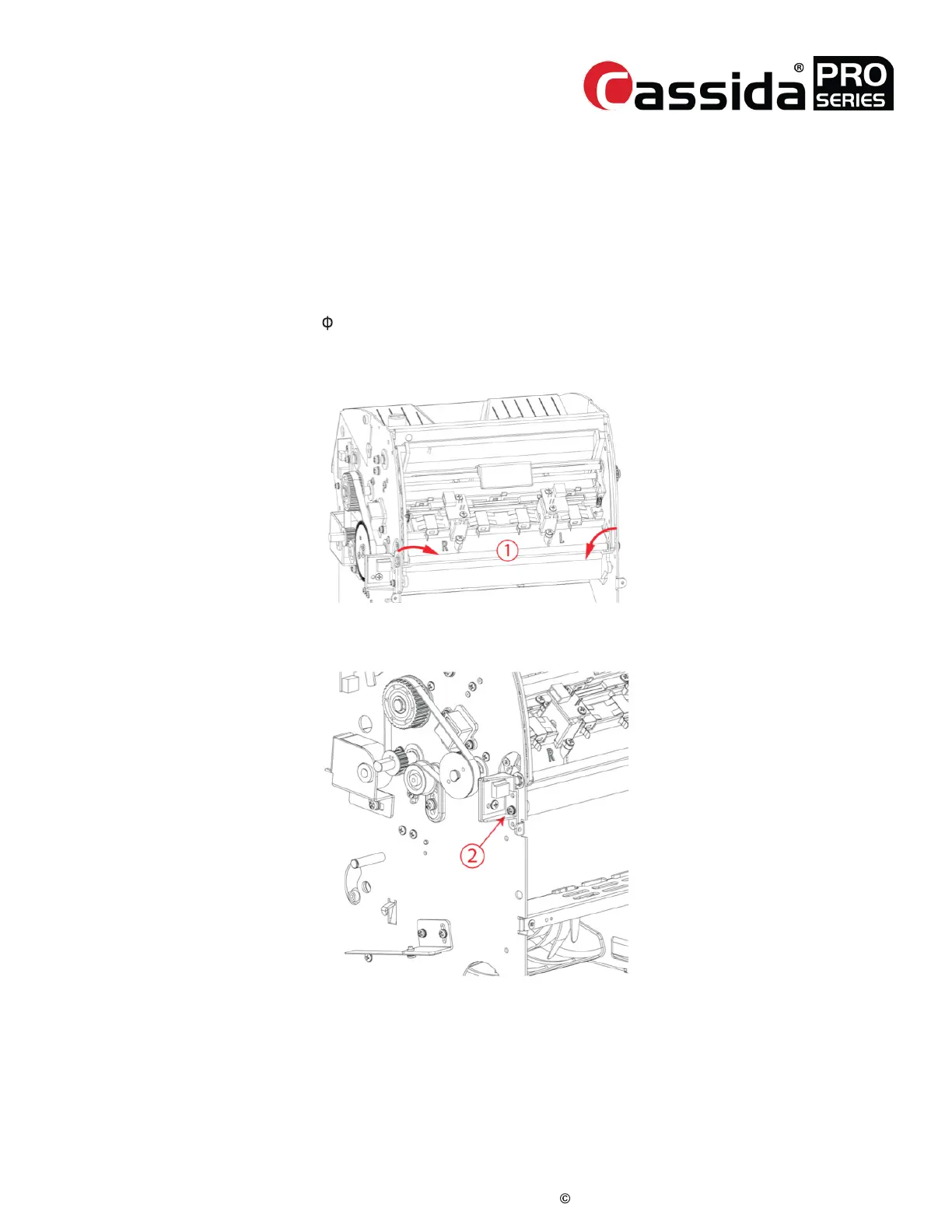

1) Remove upper door (see SECTION 4.4)
2) Unplug all cable harnesses from PBA_MAIN
3) Loosen 1 screw (M3x6 SEMS) and remove the encoder sensor
4) Carefully cut the tie-wraps and remove tie-wraps from shaft
5) Remove 2 c-clips (5
) and remove the shaft
6) Take out ASSEMBLY_GUIDE_CIS_UPPER
4.12.
33
