Cassida PRO Series Service Manual

CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/

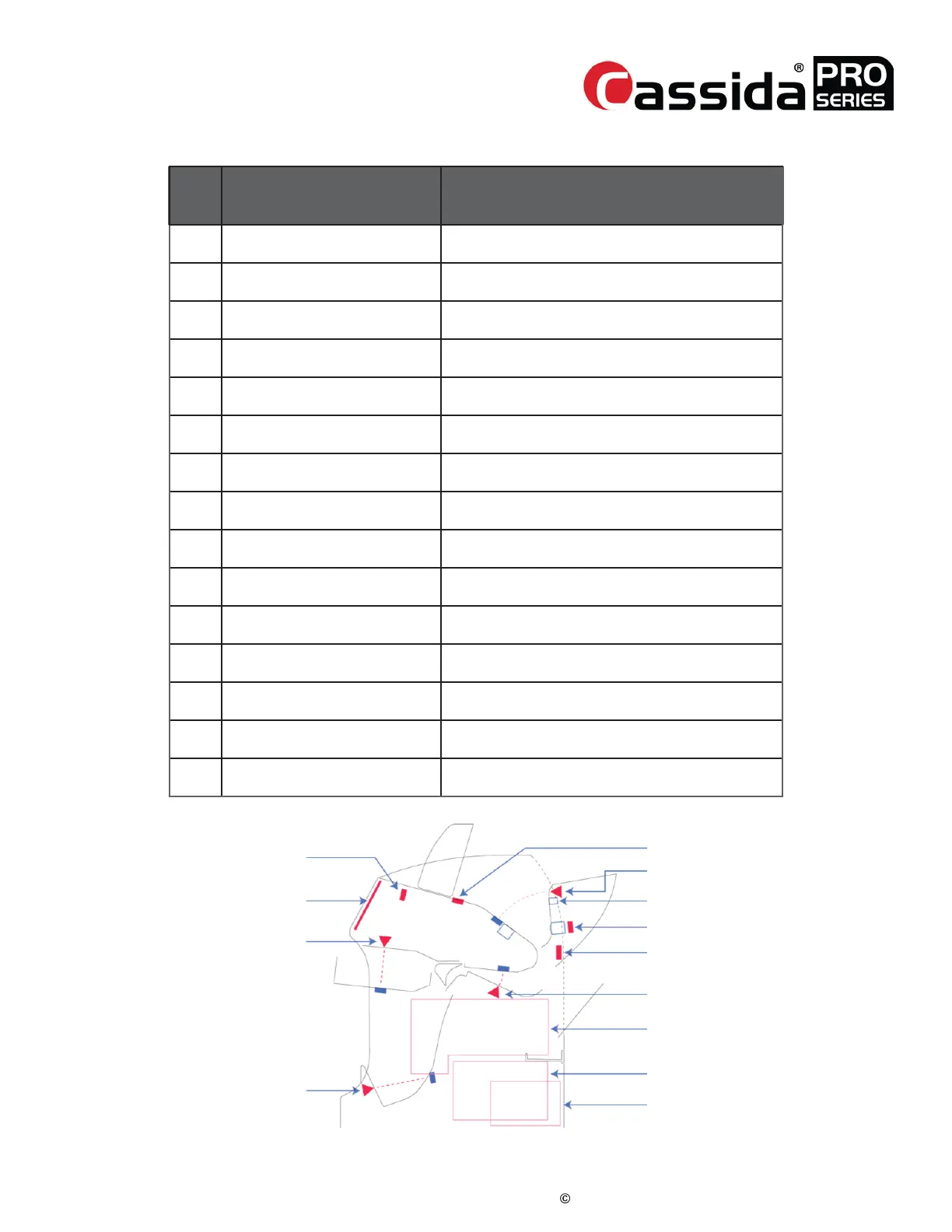

PBA REPLACEMENT 4.15.
NO. PBA REQUIRED DISASSEMBLE PROCESS
1 ASSEMBLY_PBA_LED_BAR 4-4
2 PBA_DB_L 4-4
3 PBA_DB_R 4-4
4 PBA_ENCODER 4-1 (COVER_SIDE_R)
5 PBA_FRONT 4-1, 4-2, 2-3, 3-2(1)
6 PBA_HOPPER 4-1, 4-2, 4-3
7 PBA_MAIN 4-1 (COVER_SIDE_L), 3-2(2)
8 PBA_MECHA 4-1 (COVER_SIDE_L), 3-2(3)
9 PBA_PS1_LEFT 4-4
10 PBA_PS1_RIGHT 4-4
11 PBA_PS2 4-1, 4-7
12 PBA_REJECT 4-1, 4-2, 4-3
13 PBA_SMPS 4-1 (COVER_SIDE_L), 4-8
14 PBA_POS_SEN 4-1 (COVER_SIDE_R)
15 PBA_STACKER 4-1, 4-11
6
14
5
12
15
13
7
8
11
4
2,3
9,10
1
37
