CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/

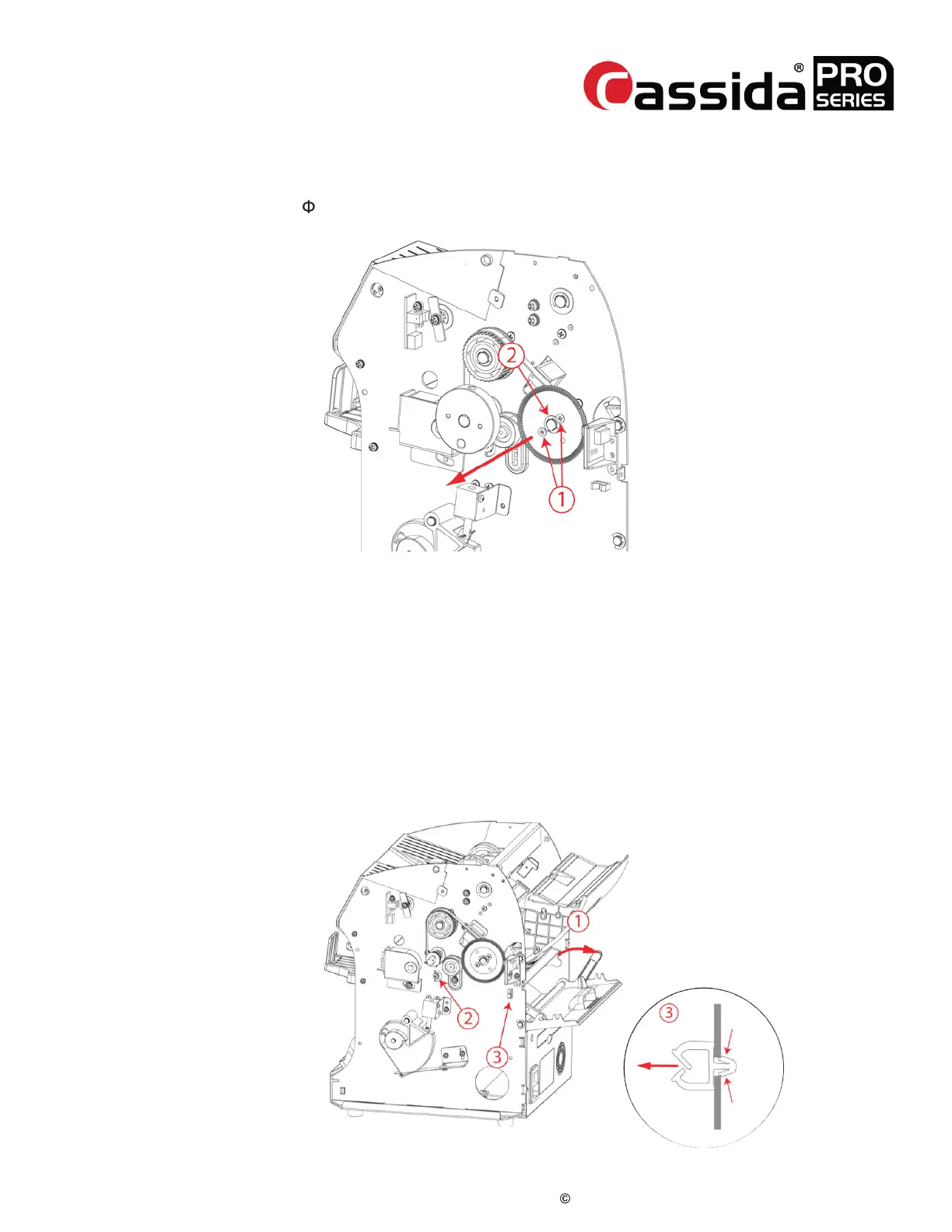

DISASSEMBLE ASSEMBLY_GUIDE_LOWER
(Assembly Lower Guide - Lower Door and Assembly)
1) Loosen links
2) Loosen 2 screws (M3x7) until the ASSEMBLY_GUIDE_LOWER drops down. Then turn
the screws about 1 turn more.
3) Take out the clips holding the supports in place
4) Guide the harness (PS2_HARNESS_1WAY) into the interior and pull the ASSEMBLY_
GUIDE_LOWER toward you and downward at the same time.
4.7.
DISASSEMBLE ENCODER_DISK
(Encoder Disk - Right Side Panel)
1) Loosen 2 screws (M3x6 tap)
2) Remove c-clip (6
), then remove ENCODER_DISK
4.6.
