Cassida PRO Series Service Manual

CassidaPRO Zeus: Service Manual
2018 Cassida Corporation. All rights reserved.
Rev: 09/05/2018
cassidapro.com/partner/

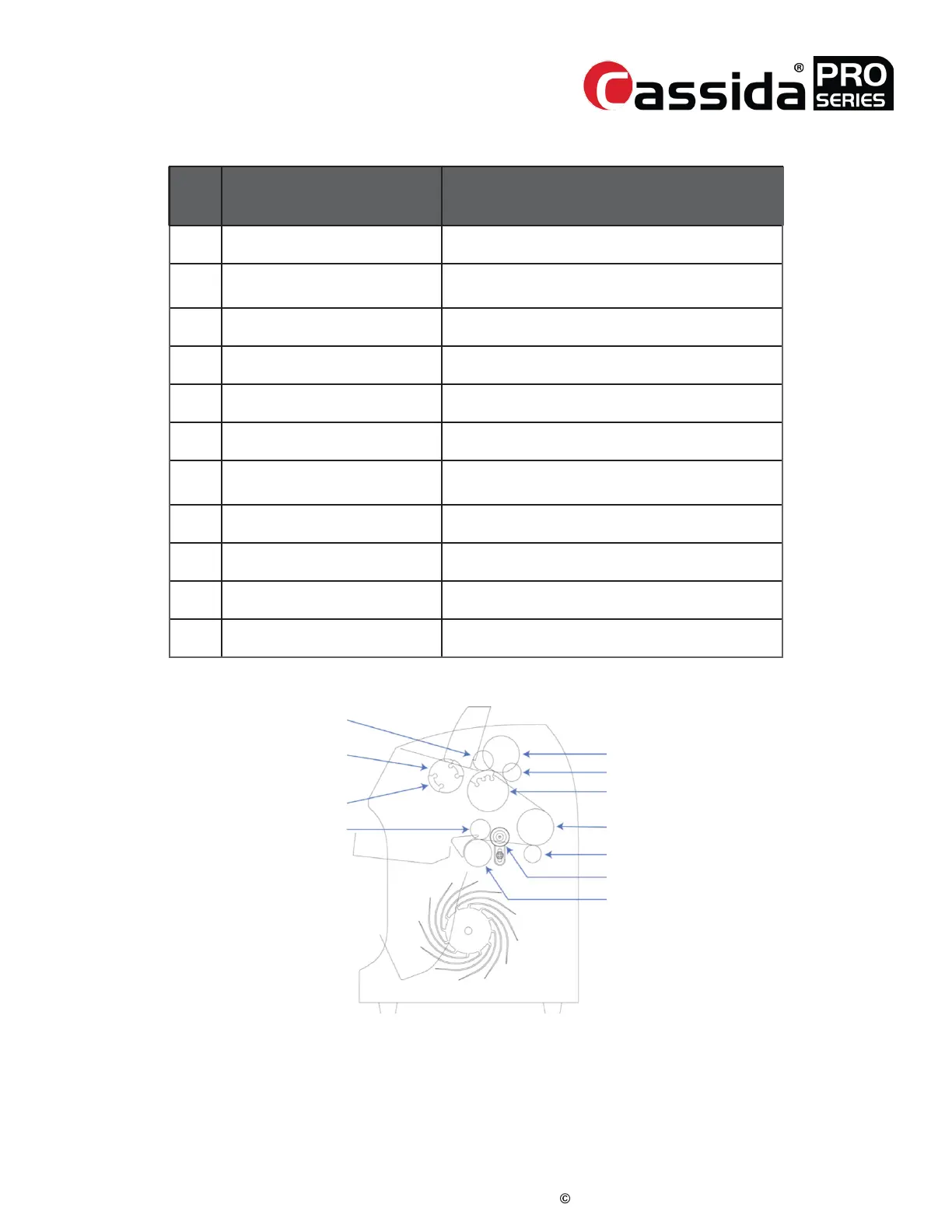

ROLLER REPLACEMENT 4.16
NO. ROLLER REQUIRED DISASSEMBLE PROCESS
1 ASSEMBLY_ADF 4-1~4-6, 4-12, 4-13
2
ASSEMBLY_PICKUP
(ROLLER_PICKUP)
4-1, 4-2, 4-3
3 ASSEMBLY_REVERSE_ROLLER 4-1, 4-2, 4-3
4 ROLLER_F_PINCH 4-1, 4-2
5 ROLLER_TIGHTENER 4-1
6 ROLLER_EXIT_PINCH 4-1, 4-7
7
FEED_PINCH_ROLLER
(BEARING)
4-1, 4-7
8 ASSEMBLY_EXIT_ROLLER 4-1, 4-4, 4-5, 4-6, 4-12, 4-13
9 ASSEMBLY_FEED_ROLLER 4-1, 4-4, 4-5, 4-6, 4-12, 4-13
10 ROLLER_R_FINCH 4-1, 4-2
11 RUBBER_PICKUP No Need
3
2
6
5
7
4
1
11
8 9
10
