Linear Glass Scale Installation
IM-ChipEncoder-Series-Rev. 2 Page 14 ©2022 Celera Motion
ChipEncoder Series
Installation Manual and Reference Guide
5.0 Linear Glass Scale Installation
Use the steps in this section to mount and install linear scales.
5.1 Before Installation
Review the information in this section prior to installing scales.
5.1.1 Items Required for Linear Glass Scale Installation
You will need the following items available for glass scales installation.
Item
Finger Cots or talc-free gloves
Acetone or isopropyl alcohol
Lint-free cotton cloths or wipes
Epoxy, non-conductive
1
Stick and disposable surface for stirring epoxy
1
Silicone adhesive
1
Double-sided tape
1
Note
1
: Not needed for every installation.

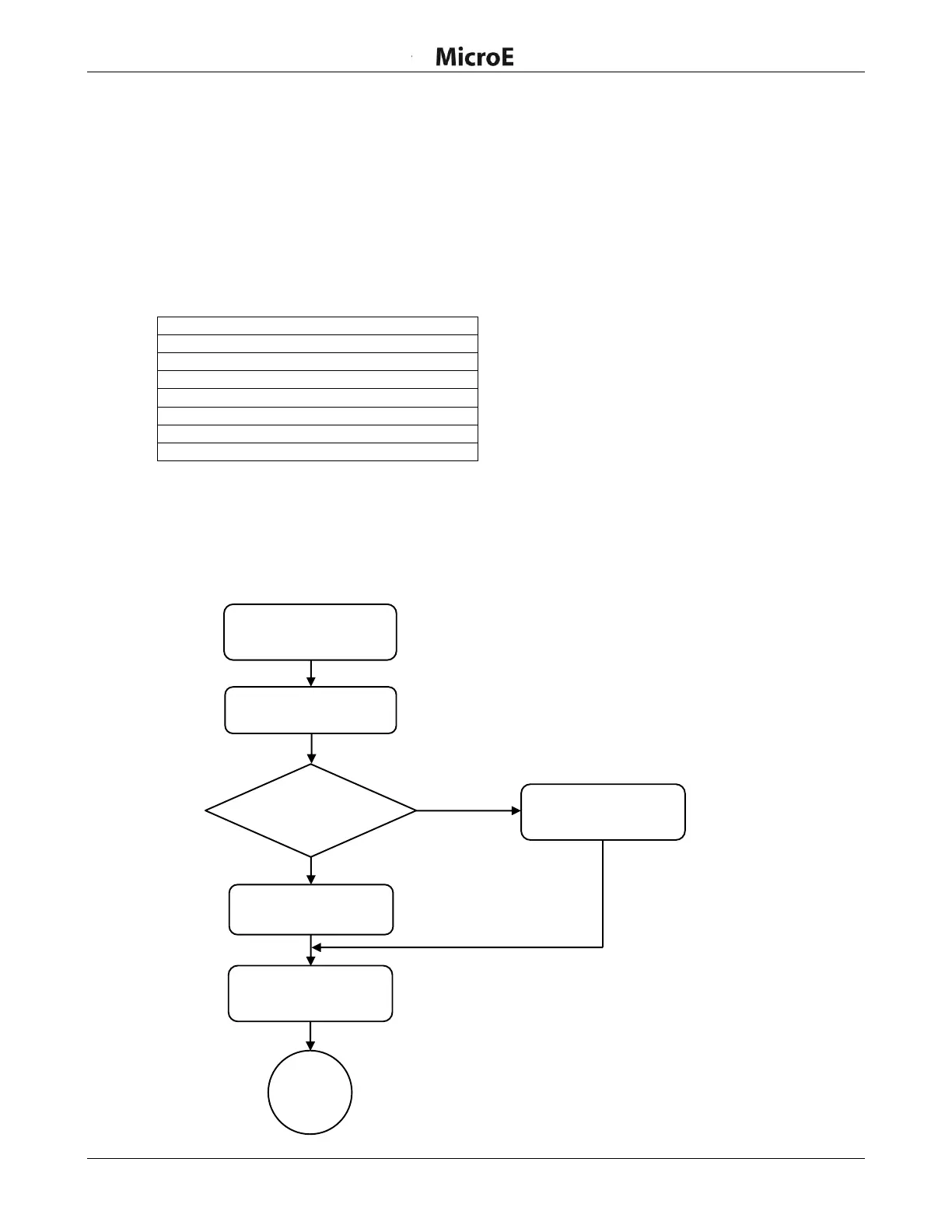

5.1.2 Flowchart for Linear Glass Scale Installation
The following flowchart lists the main steps in glass scale installation.
Section 5.2
Section 5.3
Section 5.4.1
Section 6.0
No
Adhesive Tape
Mounted Scale
Section 5.4.2
Yes
Prepare
Mounting Surface
Clean and Inspect
Scale
Epoxy Mounted
Scale
Install
Complete
Mount Scale Using
Epoxy?
Position the Scale
