Appendix
IM-ChipEncoder-Series-Rev. 2 Page 18 ©2022 Celera Motion
ChipEncoder Series
Installation Manual and Reference Guide
7.0 Appendix
7.1 Specifications
System
Operating and Electrical Specifications
Scales
ChipEncoders are compatible with ChipEncoder Linear and
Rotary Glass scales.
Power Supply:
5 V
DC
±0.5 V
DC
Current Draw:
30 mA, unterminated outputs
Scale Pitch
40 µm
Temperature
System Resolution
CE300-4
CE300-40
CE-40GC
Operating:
Storage:
0°C to 70°C
-20°C to 85°C (CE300)
-20°C to 100°C (CE)
Linear Resolution:
10 µm
1 µm
1 µm
Max Lead-Free
Reflow
Temperature
260°C for<5 seconds
Rotary Resolution:
See Sec. 7.3 Linear and Glass Scales
Interpolation Depth:
X4
X40
X40
Humidity
Operating:
10% to 90% RH, non-condensing
Accuracy
Vibration
30 G @ 20 Hz; EN60068-2-6
Linear Glass:
±5 µm/m
Shock
300 G (0.40, half sine) CE300
100 G (11 ms, half sine) CE
Rotary Glass:
±2 arc-seconds
1
Reliability (MTTF)
100,000 Hours
Sensor Size and Weight
Outputs
Signals: CMOS/TTL
Format: Digital – differential quadrature
Output impedance per channel = 60 ohms
Dimensions (mm)
Width
Length
Height
CE300:
CE:
7.0
6.1
11.0
6.1
3.1
3.9
Weight
CE300:
CE:
0.37 g
0.25 g
Note
1:
Excludes eccentricity

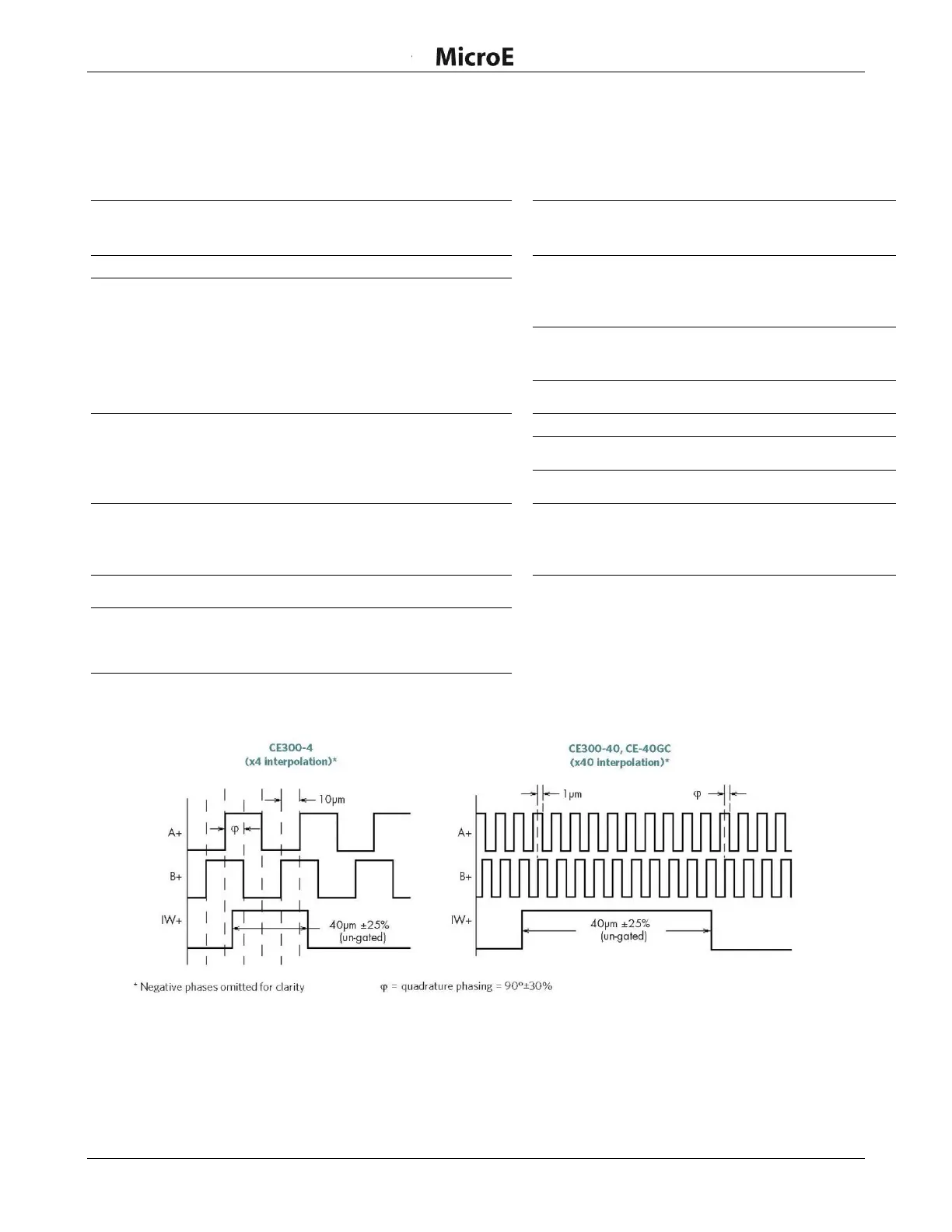

Output Signals
