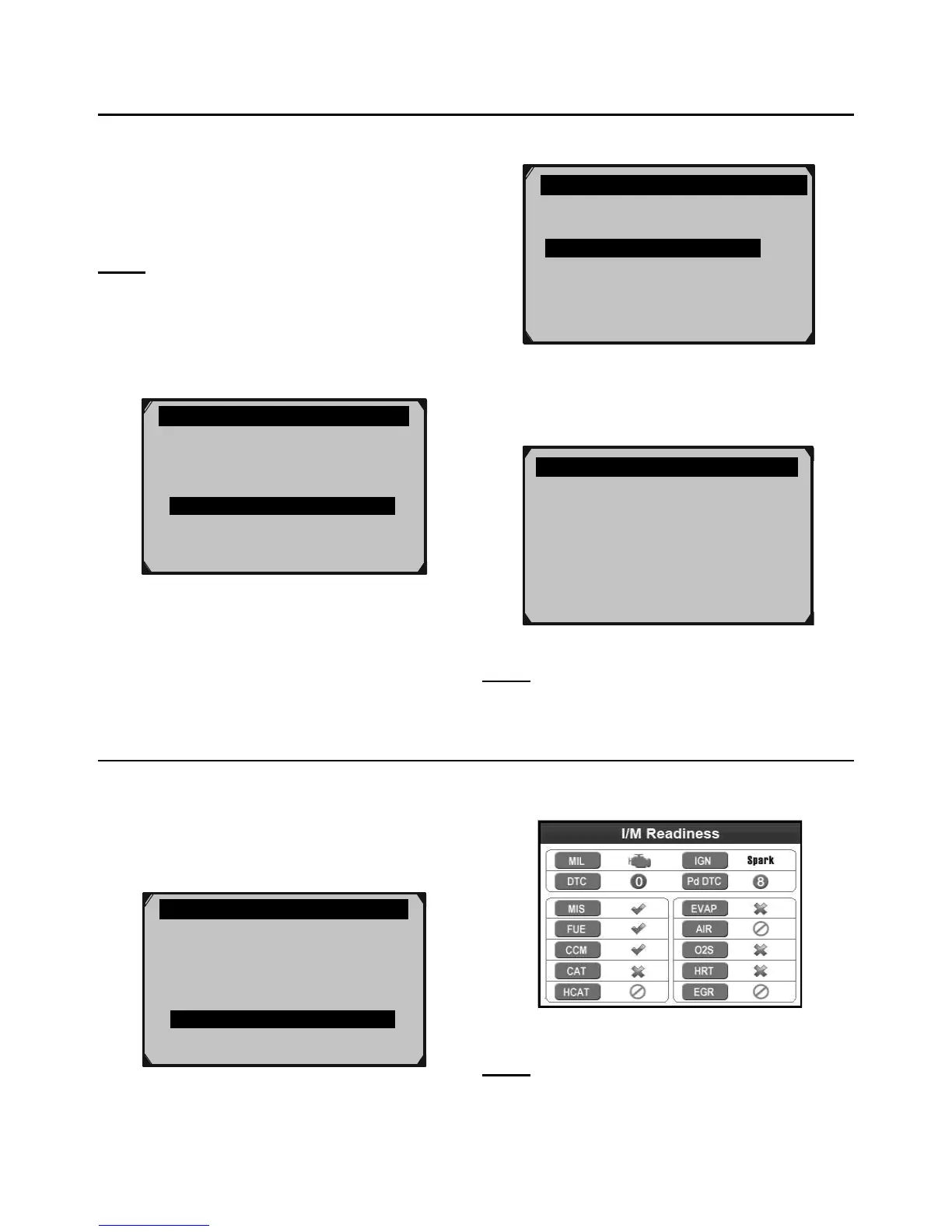

View Freeze Frame Data
Mode $02 Request Powertrain Freeze Frame Data
View the vehicle’s operating
conditions when a DTC is stored.
This section contains advanced
functions. Some data may need to be
interpreted by a qualified technician.
Note: Not all vehicles return the
same data, results may vary from
the examples given herein.
1. From Diagnostic Menu, select
View Freeze Frame, then press OK.
Diagnostic Menu 4/11
?
Read Codes
I/M Readiness
02 Monitor Test
On-Board Mon. Test
Erase Codes
Live Data
View Freeze Frame
Figure BB
2. View data.
…………View Freeze Frame 2 .
DTCFRZF P1633
FUELSYS1 OL
FUELSYS2
--
LOAD_PCT (%) 0.0 ?
ECT(° F)
-40
SHRTFT1 (%) 99.2
Figure BC
3. Select a PID, then press OK
to view the full name.
……………… ..FUELSYS1……… …….
Fuel System 1 Status
Figure BD
Note: If necessary, have a qualified
technician Interpret the data.
I/M Readiness
Check emissions readiness prior to having a
vehicle inspected for a state Emissions Test.
1. From Diagnostic Menu, select
I/M Readiness, then press OK.
Diagnostic Menu 5/11
?
Read Codes
02 Monitor Test
On-Board Mon. Test
Erase Codes
Live Data
View Freeze Frame
I/M Readiness
Figure BE
2. View test results.
Figure BF
Note: See “I/M Readiness Quick-
Check” on page 17 to interpret data.
