View Live PID Data
This function allows viewing of one frame
of data only, for multiple frame viewing, see
“Record Live PID Data” on page 24.
This section contains advanced
functions. Some of the data may need to
be interpreted by a qualified technician.

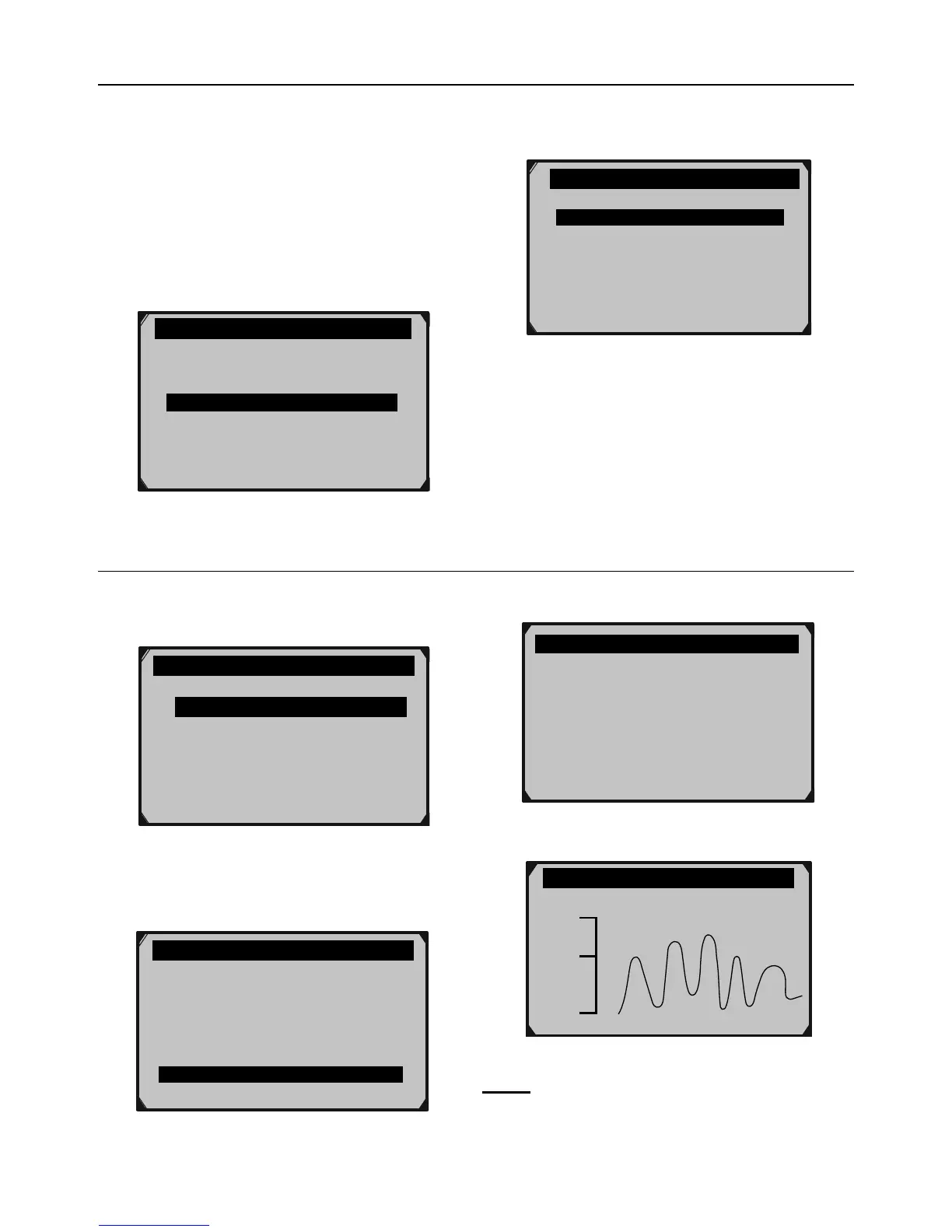

1. From Diagnostic Menu, select
Live Data, then press OK.
Diagnostic Menu 3/11
?
Read Codes
View Freeze Frame
I/M Readiness
02 Monitor Test
On-Board Mon. Test
Erase Codes
Live Data
Figure AB
2. From Live Data, select
View Data, then press OK.
……………… .Live Data 1/3.
View Data
Record Data
?
Playback Data
Figure AC
Complete Data Set - View All PIDs
1. From View Data, select
Complete Data Set, then press OK.
Complete Data Set
Custom Data Set
Unit of Measure ?
Figure AD
2. View all PIDs and their parameters
using the Up and Down Buttons.
Live Data 6
DTC_CNT 0
FUELSYS1 0L
FUELSYS2 -- ?
LOAD_PCT (%)
0.0
ECT(°F)
-40.0
SHRTFT1 (%)
-0.0
LONGFT1 (%)
-0.8
Figure AE
3. Press ? to view the PID’s full name.
……………… ..SHRTFT1 ……… …….
Short Term Fuel Trim Bank 1
4. Press OK to view a graph, if available.
RPM (/MIN) 975
1725
925
Figure AF
Note: If necessary, have a qualified
technician interpret the data.
