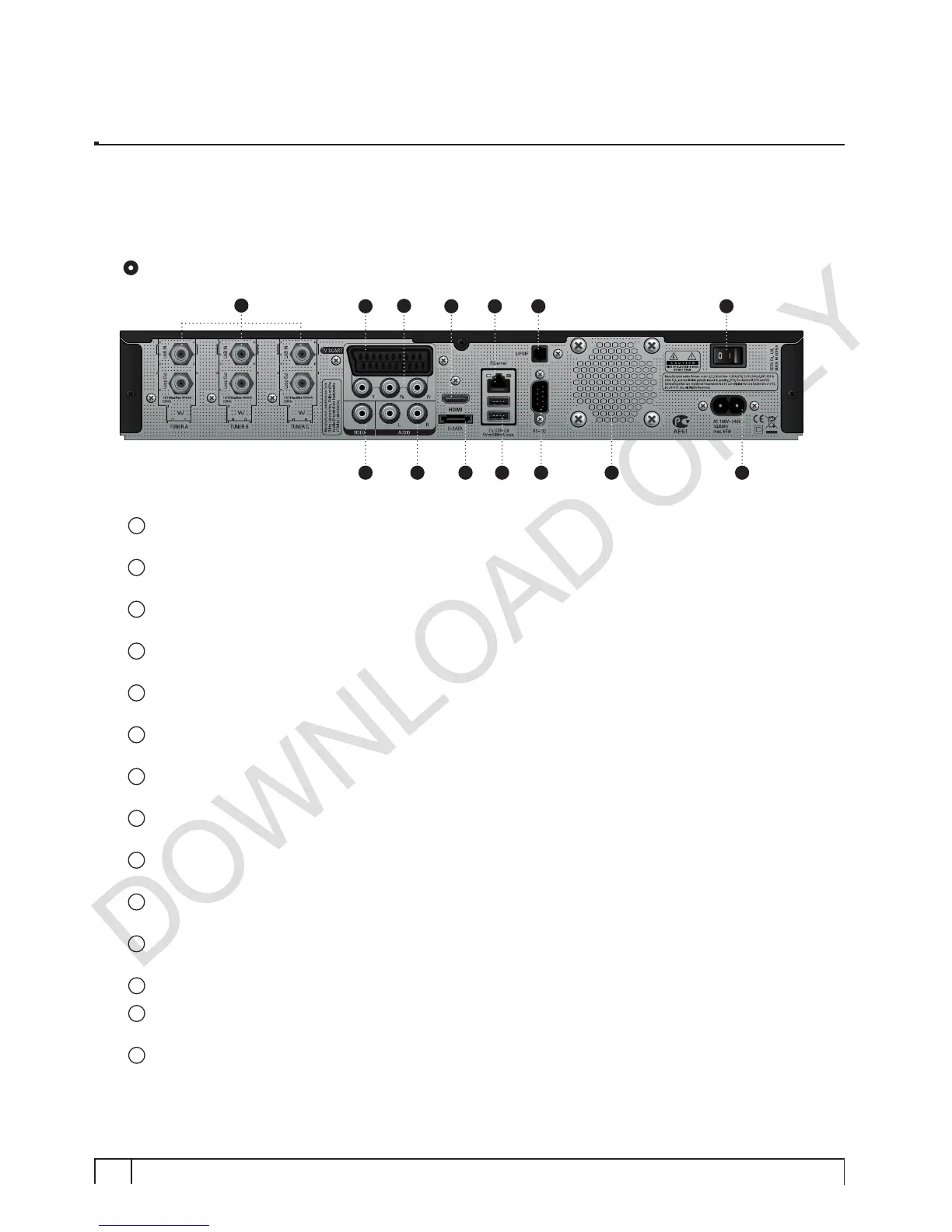

Rear Panel
1
Three Pluggable Tuner Slots
Pluggable Type DVB-S2 and DVB C/T Hybrid Tuner available.
2
SCART
One SCART connector is provided for TV using SCART cable.
3
Video output
Connects to TV using RCA cable(composite YPbPr)
4
Component (YPbPr)
Connects to TV using a component cable
5
Audio output
Connects to TV using RCA cable.
6
HDMI
Connects to TV using a HDMI cable for both audio and video signals.
7
e-SATA
Connects the external HDD using e-SATA cable.
8
Ethernet
Connects the PC or another set top box of Vu
+.
9
USB
Connects the USB memory stick or external HDD.
10
S/PDIF
Connects to a digital audio system using S/PDIF cable.
11
RS232
RS232 data port is provided.
12
FAN
13
Power Inlet
Connects the detachable power cord.
14
On/Off Switch
Powers on/off.
