CESAB C3E150 - Operators Seat; Foot Pedals Version; Foot Drive Direction; Direction Selector Lever

chapter 0000
page 4
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
B
D E
O
P
o
é
ê
Q

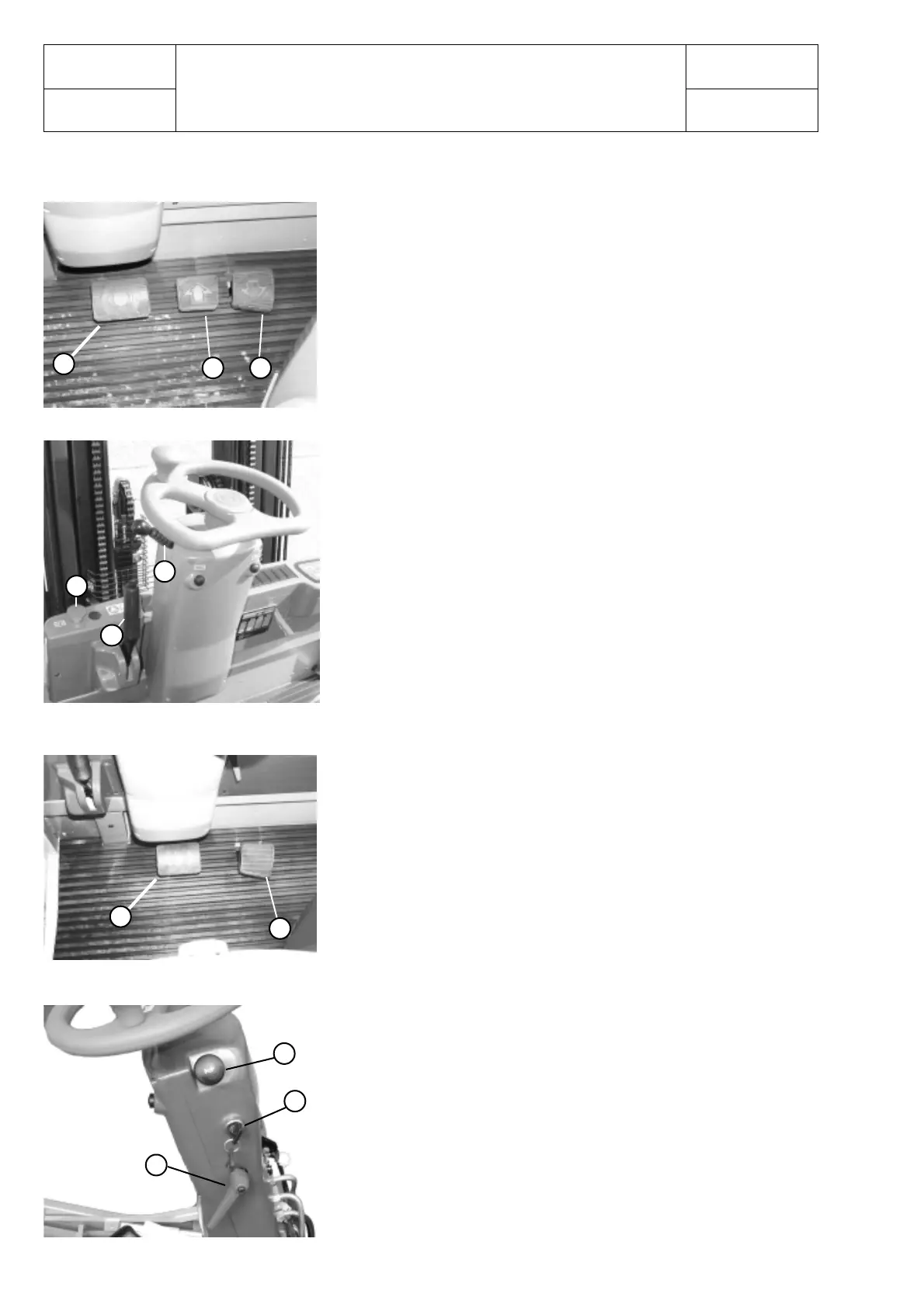

OPERATOR'S SEAT
FOOT PEDALS VERSION
FOOT DRIVE DIRECTION
(Standard version)
- Forward direction (D)
- Backward direction (E)
- Service brake pedal (B)
DRIVE DIRECTION LEVER ON STEERING
COLUMN (Alternative version)
Direction selector lever (F)
1 Forward direction
0 Neutral
2 Backward direction
Parking brake lever (A)
Emergency push button (H)
Single drive pedal (G)
Horn push button (O)
Ignition key (P)
The steering column position can be adjusted forward or backward.
In order to do it, unloose the lever (Q) then secure the steering
column in the desired position. Do not adjust the steering column
while the truck is moving.
