CESAB C3E150 - Tilting and Sideshift Performance

chapter 6000
page 8
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
TILTING AND SIDESHIFT PERFORMANCE

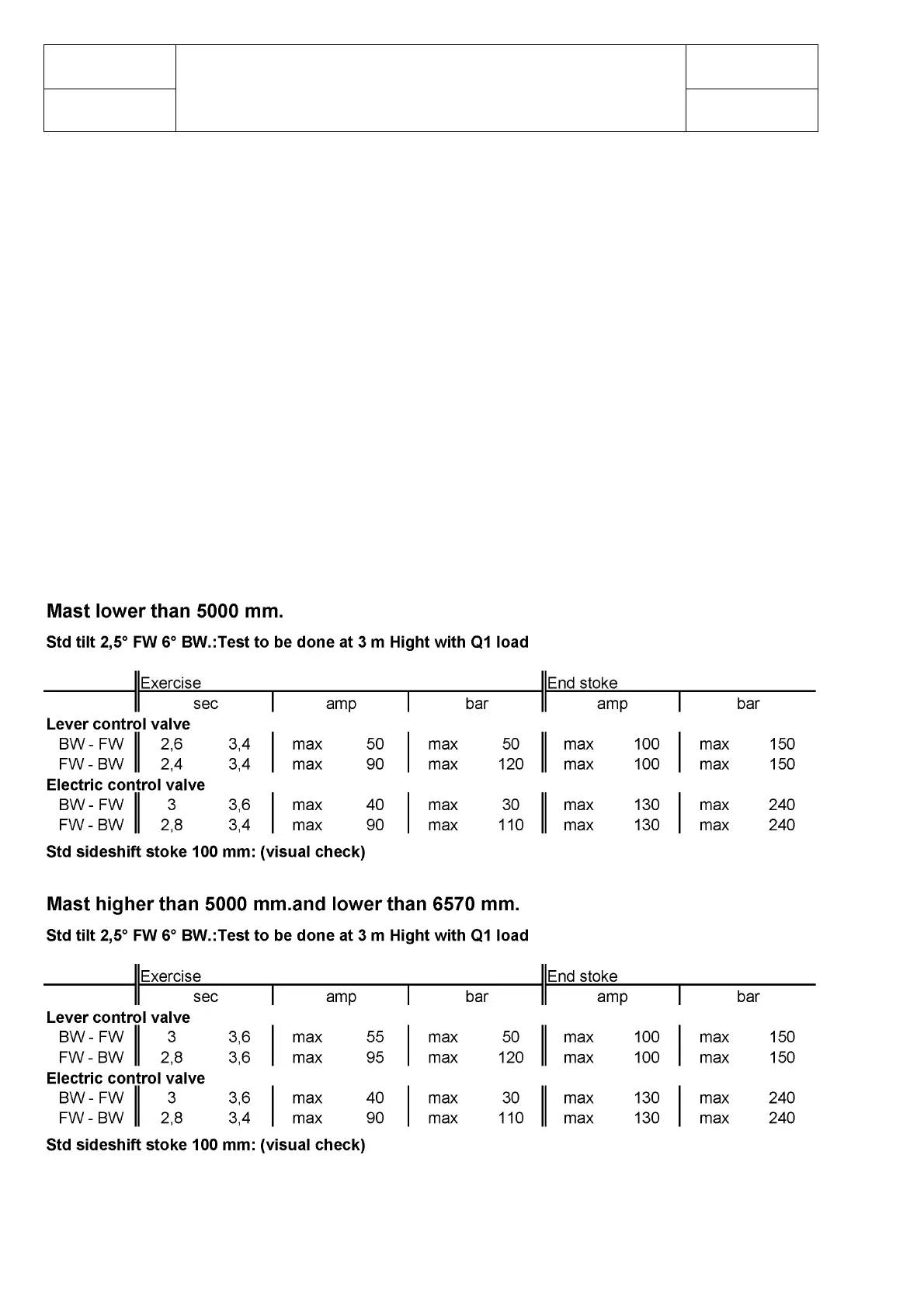

Here below the table with the performance of a STD machine.
Q1 = It corresponds to the maximum load of the machine at 3mt. (See capacity plate).
Exercise = It means mast in movement.
End stroke= It corresponds to the maximum stroke in forward or backward
bw = Backward
fw = Forward
TILTING AND SIDESHIFT
