CESAB C3E150 - Parking Brake Control and Adjustment

chapter 3000
page 4
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
W
V
X
J
K
W
J
K
V
X

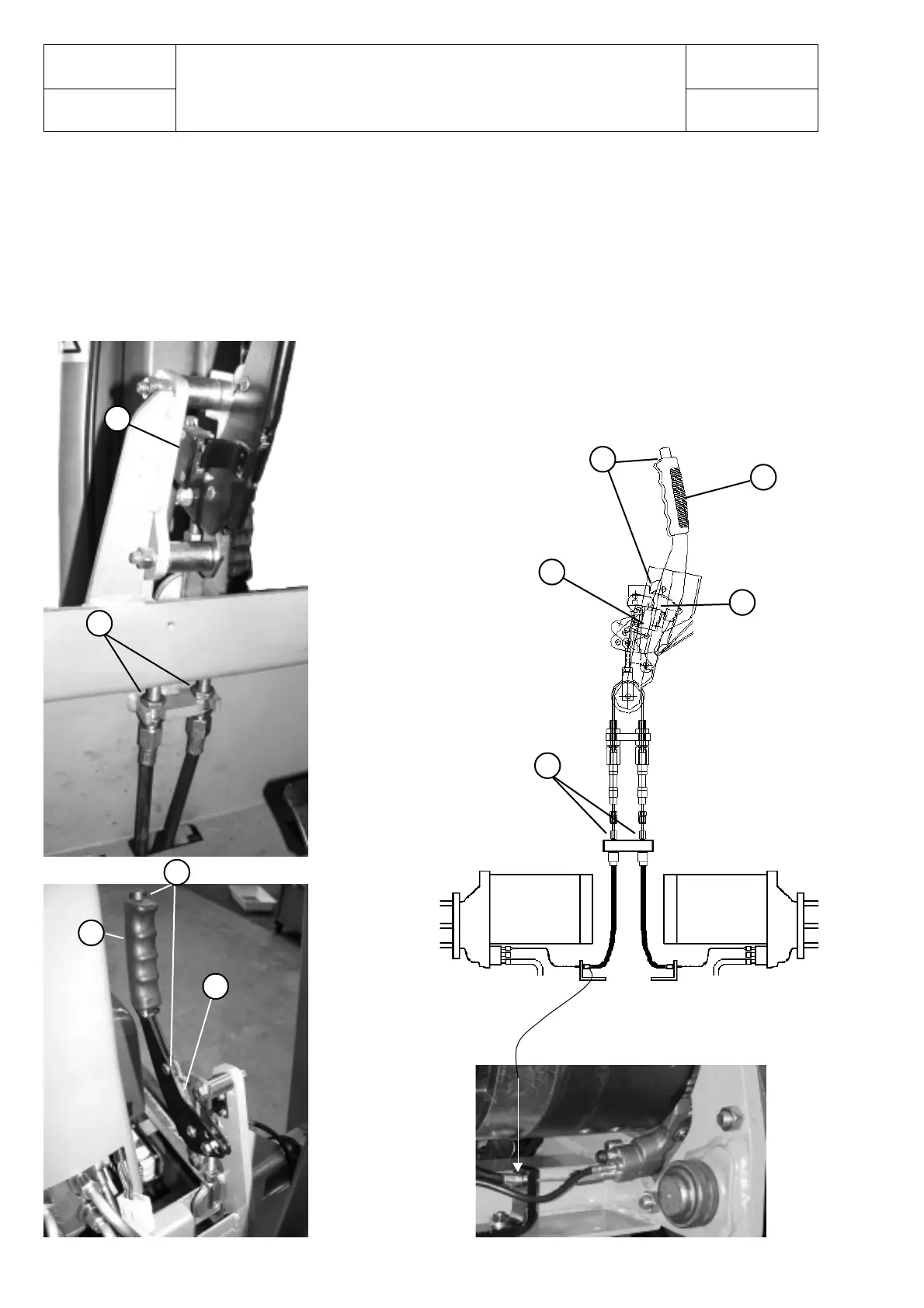

PARKING BRAKE
PARKING BRAKE CONTROL AND ADJUSTMENT
Every 1000 hours
- check the parking brake travel which should correspond to
3 notches. If necessary, adjust the appropriate screws (X);
- check the condition of the stay bolt cables and the anchors.
The hand parking brake operates by means of the same disks as the service brake.
J) Release system
K) Parking brake lever
V) Microswitch
W) Brake block anchor
X) Parking brake lever adjusting screw
