chapter 2000
page 5
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
Pignon

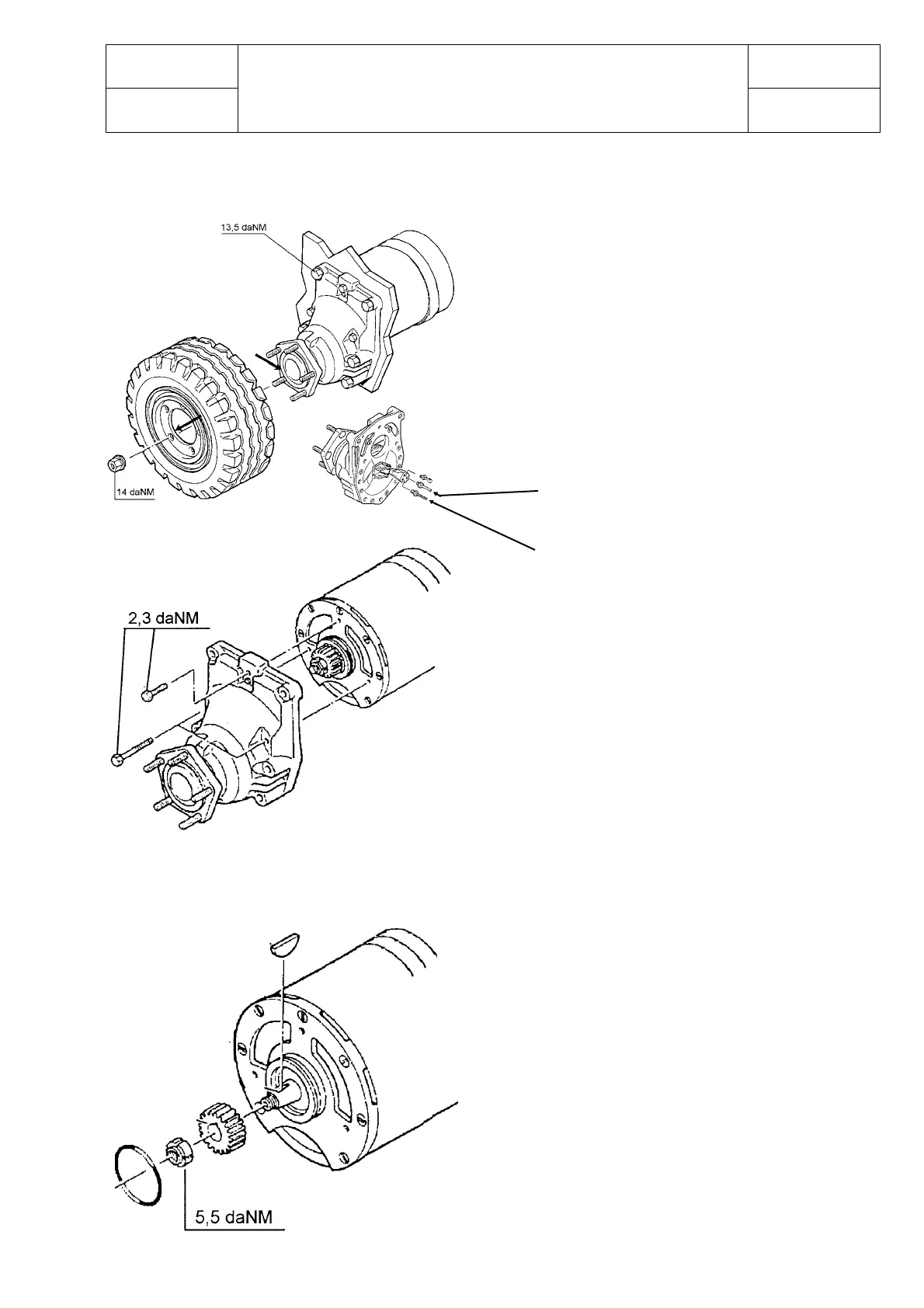

REPLACEMENT OF THE REDUCTION GEAR
- Lift the truck
- Remove the wheel from the reduction gear.
- Remove the cable for the parking brake and
the tube for the oil brake system.
- Put a shim under the electric motor.
Tube for the oil brake system.
Cable for the parking brake.
- Remove the screws for fixing the group (gear-
motor).
After replacing the reduction gear it is necessary
to replace also the pinion.
