chapter 5000
page 31
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
2
1
3
COLORI COLOURS FARBEN COULEURS COLORES
C arancio orange orange orange naranja
A azzurro blue blau bleu azul
B bianco white weiß blanc blanco
L blu dark blue dunkelblau bleu marine azul intenso
G giallo yellow gelb jaune amarillo
H grigio grey grau gris gris
M marrone brown braun marron castaño
N nero black schwarz noir negro
S rosa pink pink rose rosa
R rosso red rot rouge rojo
V verde green grün vert verde
Z viola/porpora purple violett violet púrpura

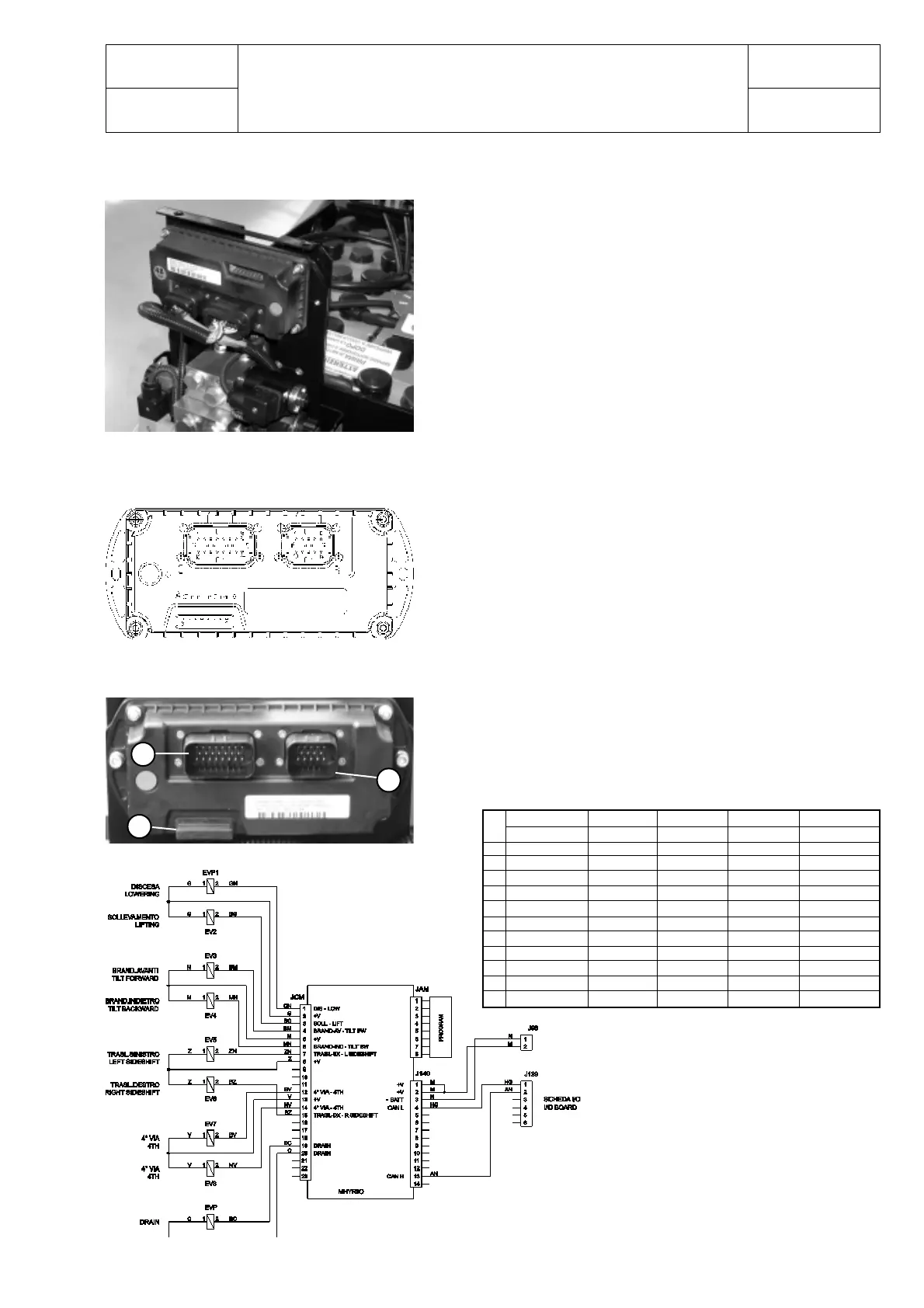

It works to 48 V and it is located on the upper side of the
truck over the electro control valve group. The Mhyrio card
receives the digital inputs from the CAN and it converts them
in analogic signals to control the solenoid valves with.
In the front it has three connectors:
- connector 1 is used for the console
- connector 2 is used for the CAN
- connector 3 is used to control the solenoid valves.
The feeding reaches the card through three cables:
N (black cable) negative (pin 3 connector 2)
M (brown cable) positive (pin 1 connector 2)
M (brown cable) positive (pin 2 connector 2)
The cables for the CAN-BUS (it means for digital input) arrive
to the same connector used for the feeding:
AN (light blu/black cable) CAN H (high)
(pin 13 connector 2)
HG (grey/yellow cable) CAN L (low)
(pin 4 connector 2)
Voltage supplied to the ON-OFF valve coil ≅ battery voltage
Voltage supplied to the proportional valve coil ≅ 12 V
MHYRIO CARD
