CESAB C3E150 - Steering Potentiometer (3 Wheels); Steering Potentiometer (4 Wheels)

chapter 5000
page 17
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07

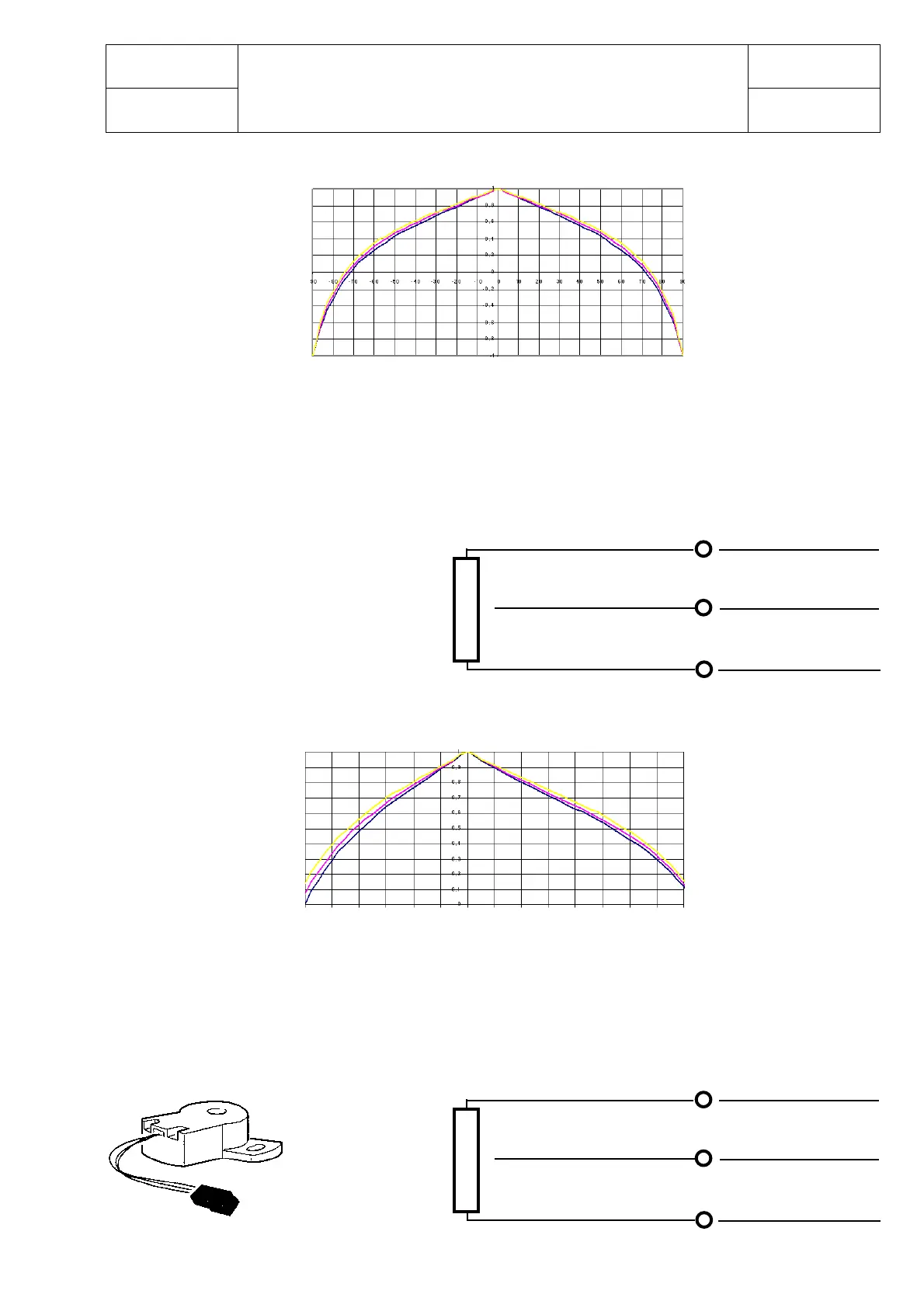

Steering potentiometer (4 wheels)
Yellow : ~ 12 V
Green : ~ 0,9V with max. steering angle right hand + 80°
2,5 V with straight wheel
~ 3,8 V with max. steering angle left hand - 58°
Black : 0 V
3 WHEELS
Steering potentiometer (3 wheels)
Yellow : ~ 12 V
Green : ~ 0,7 V with max. steering angle right hand + 90°
2,5 V with straight wheel
~ 4,3 V with max. steering angle left hand - 90°
Black : 0 V
-90°
+90°
2,2 KOhm
Green
)
Í
Red
)
BlackGrey
)
Black Yellow
4 WHEELS
-58°
+80°
2,2 KOhm
Green
)
Í
Red
)
BlackGrey
)
Black Yellow
