1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
1234
1234
1234

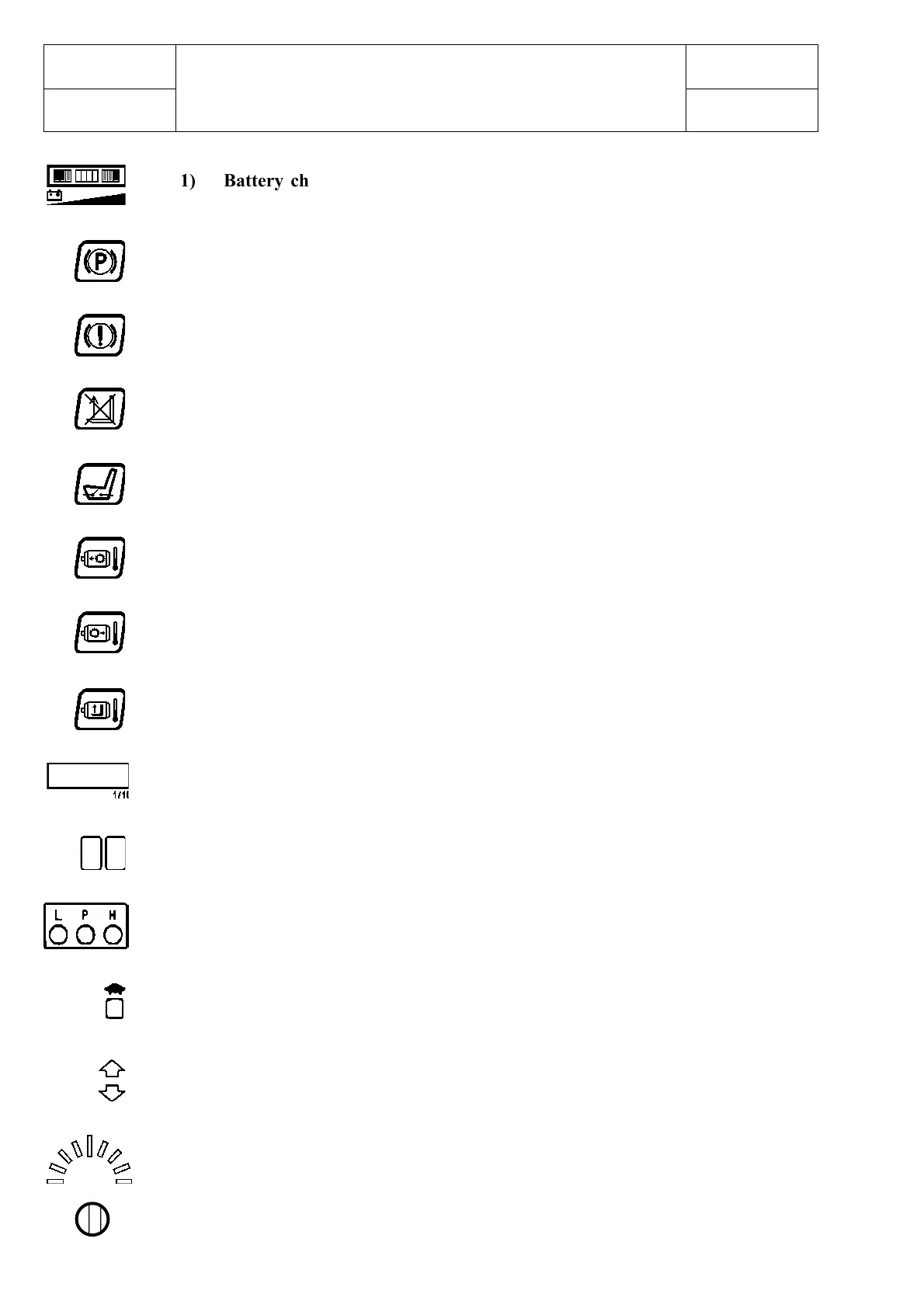

1) Battery charge status indicator:
This bar consists of 3 green LEDS on the right side, 4 orange LEDS in the
middle and 3 red LEDS on the left side; when the battery is charged the
first green LED on the right is On; while the battery discharges, the LEDS
turn On or Off, one per time, from the right to the left according with the
battery charging status. When the battery is 80% discharged, the first red
LED on the left is On, the display (10) shows the alarm code 1C so the
battery must be recharged (reserve). There is an indication on the dashboard
(4) and the lifting speed is reduced because there is a current cutback by
50%. The battery charge indicator does not rearm if the battery charging
status is between 70% and 100%. It can be adjusted (see at chapter 5000).
2) Parking brake ON warning light
3) Brake fluid low level warning light:
This warning light comes ON when the level of brake fluid in the tank has
reached the minimum level.
4) Lifting speed reduction due to flat battery
5) ”Present man device” warning light:
The pilot light comes ON when the driver leaves the driving seat without
switching OFF the truck; under these conditions, the traction and the lifting
movement are disabled.
6) Drive left motor temperature warning light:
lights up when the temperature is 140°C.
7) Drive right motor temperature warning light:
lights up when the temperature is 140°C.
8) Lifting motor temperature warning light:
lights up when the temperature is 140°C.
9) Electronic hour meter:
It is activated by insertion of the ignition key and it conts the real working
time of the truck. It shows the working hoursand hours fractions (in tenth).
It can be adjusted (see chapter 5000, dashboard map)
10) Diagnostic code alphanumeric display:
When a malfunction occurs in the truck, this display identifies the error
through a corresponding code (see Alarm function chapter 5000).
11) Selected setting display:
Indicates the running setting selected: L (low), P (programmable), H (high):
12) Speed reduction indication light:
When the reduction speed is selected the blue light is on.
13) Forward/backward indication lights.
14) Steering indication display.
15) Light sensor:
It changes automatically the light intensity of the LEDS in the dashboard
according to the light of the environment.
DASHBOARD CONTROLS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
