CESAB C3E150 - Fork Carriage Guide Shoes Replacing

chapter 7000
page 14
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
Picture 7
Picture 9
D
E
Picture 10
F
Picture 8
B
C

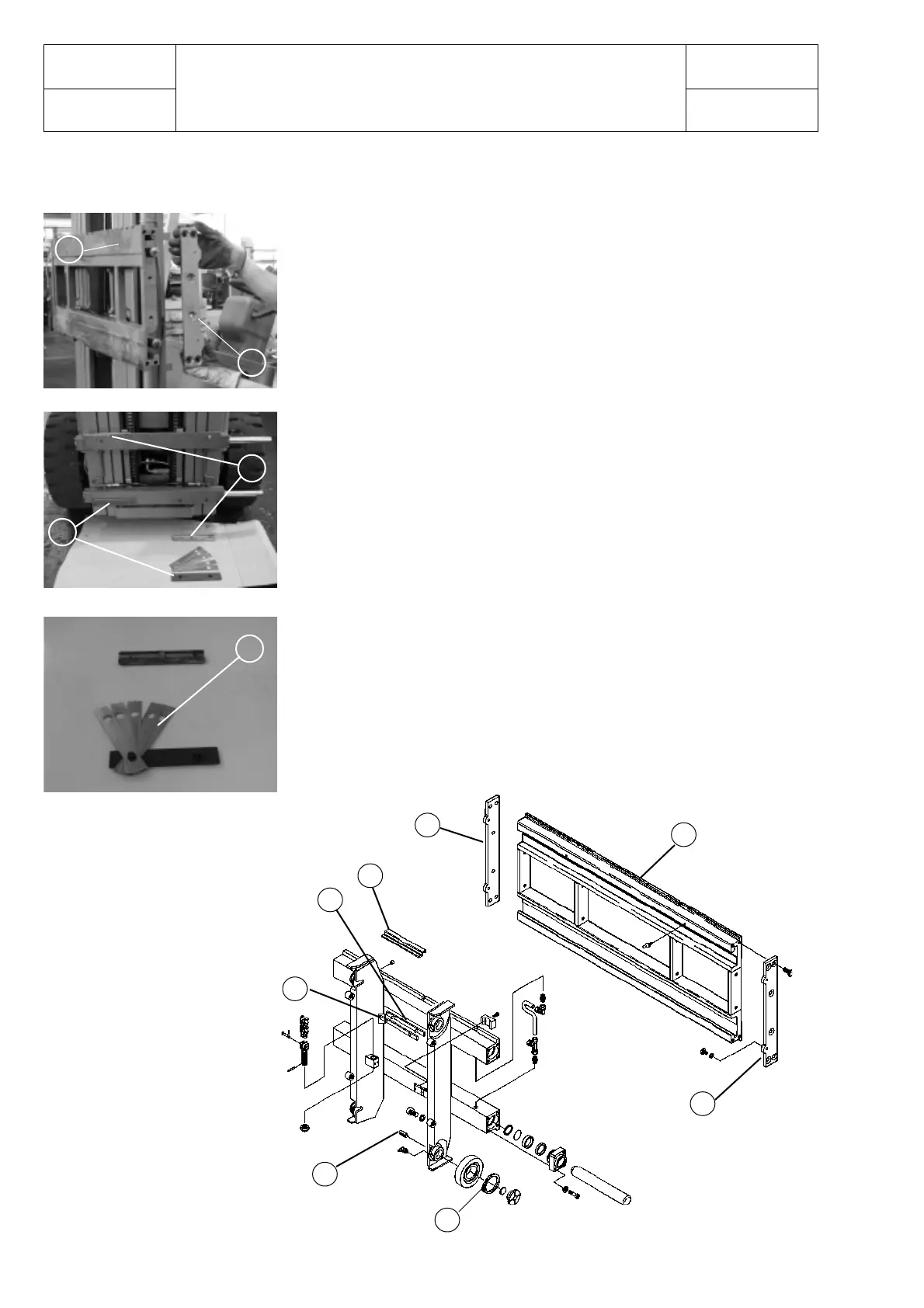

FORK CARRIAGE GUIDE SHOES REPLACING
A
B
B
C
D
E
F
G
In order to carry out the job proceed as follows:
1) remove one of the two side bars B from the fork carriage
(Picture 8)
2) take out the mobile plate C ( Picture 8)
3) replace the upper and lower guide shoes D-E ( Picture 9)
4) fit the shims F properly in order to have a correct clearence of the
mobile plate C on the fork carriage
5) reassemble all parts in reverse order and adjust the guide shoes.
