chapter 5000
page 111
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
The console can be connected to the MHYRIO logic unit in two different ways:
1. Directly by means of an interface cable on the logic unit.
2. By connecting the console to another logic unit (pump or traction) and selecting the relevant connection
number as shown in the map here below.
In case the console is connected to the traction logic unit

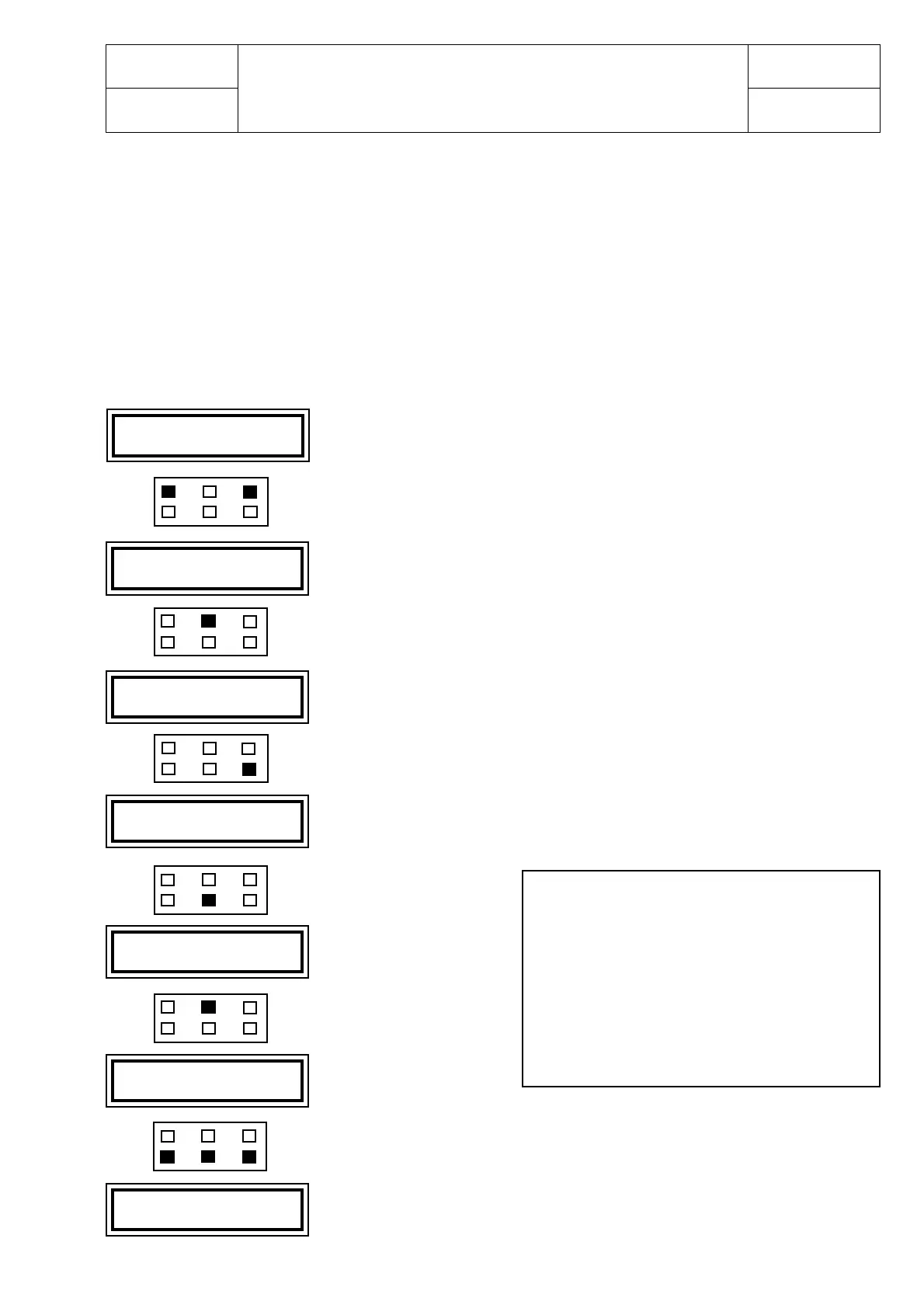

DESCRIPTION OF THE CONSOLE STANDARD MENU OF THE MHYRIO
UNIT
Press ROLL and PARAM together
Press SET and select the connection number of the Mhyrio logic unit
Press ENTER
Press ROLL, OUT and SET together
Connected to the MHYRIO logic unit
CONNECTION NUMBERS
3 TRACTION MASTER
4 TRACTION SLAVE
5 PUMP
9 MHYRIO
11 DASHBOARD
Press ENTER to
confirm
Press OUT
It is the connection number of the traction logic unit.
It is the connection number of the mhyrio unit.
DA2M2B C CE 1.13
48V 280A 00000
* CONFIG. MENU *
SET MODEL
CONNECTED TO
3
CONNECTED TO
9
ARE YOU SURE?
YES=ENTER NO=OUT
MHY CB ZP 0.11
48V 0A 00000
* CONFIG. MENU *
SET MODEL
